Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> External Pages >> Different car >> Section 1597 (Seat Belt System) >> Diagnostic Information and Procedures >> Symptoms-Seat Belts >> Fasten Safety Belt Indicator/Chime Always On

Fasten Safety Belt Indicator/Chime Always On

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

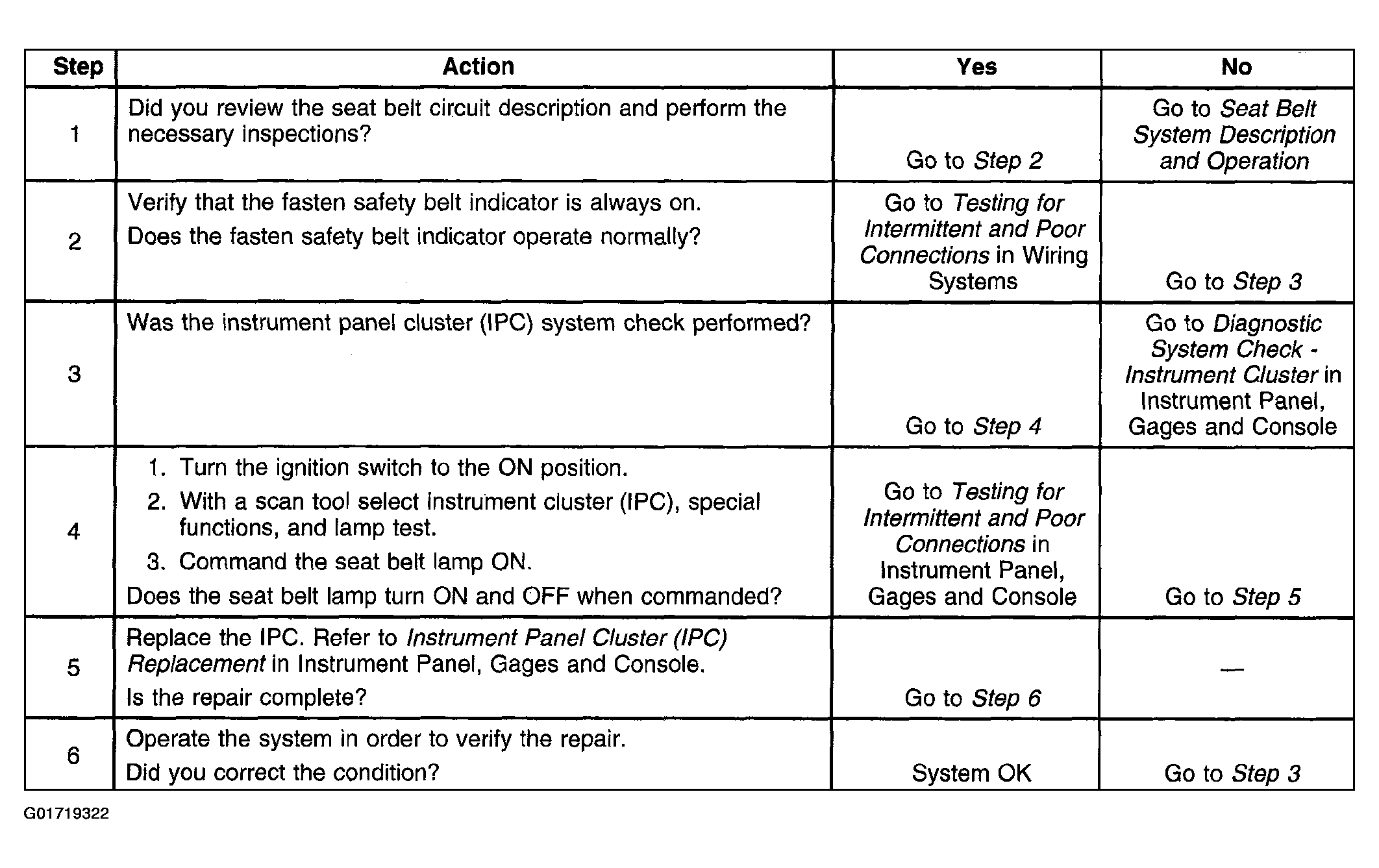

Fig 1: Fasten Safety Belt Indicator/Chime Always On
G01719322Courtesy of GENERAL MOTORS CORP.
