Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Install the seat belt side buckle (1) to the seat with the seat belt anchor nut (2).
Tighten

Tighten the seat belt side buckle nut to 55 N.m (40 lb ft).

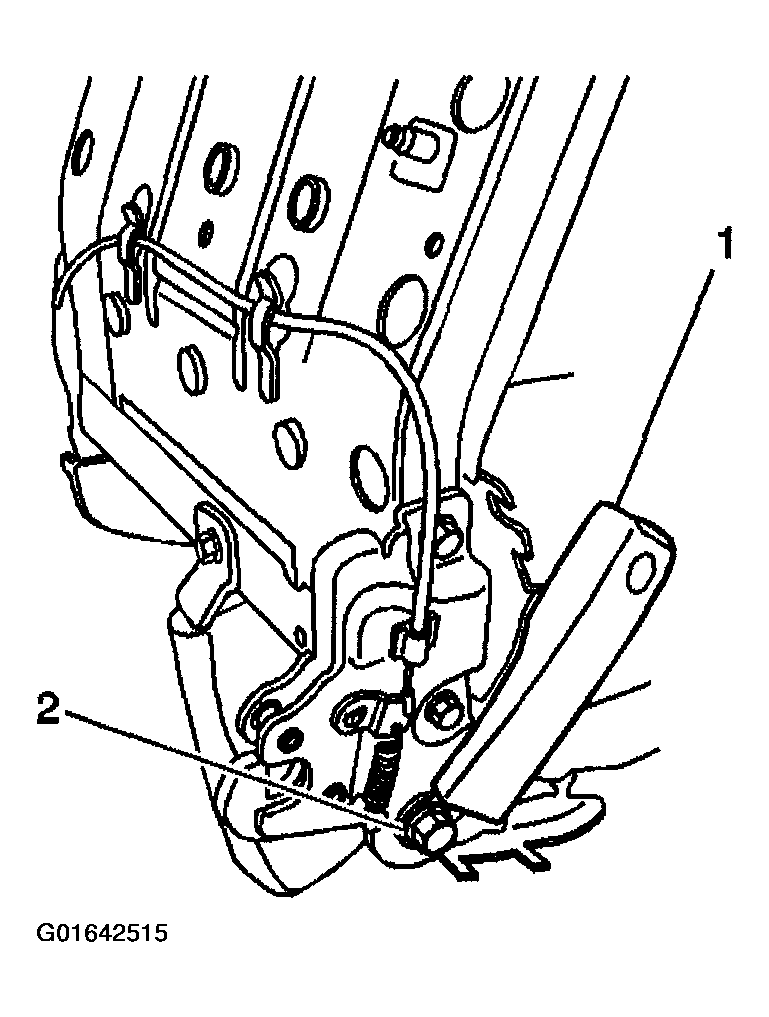

Fig 1: Seat Belt Side Buckle To Seat

Courtesy of GENERAL MOTORS CORP.

Install the inboard rear seat back cushion latch cover with 3 screws.
Tighten

Tighten the rear seat back cushion latch cover screws to 2 N.m (18 lb in).

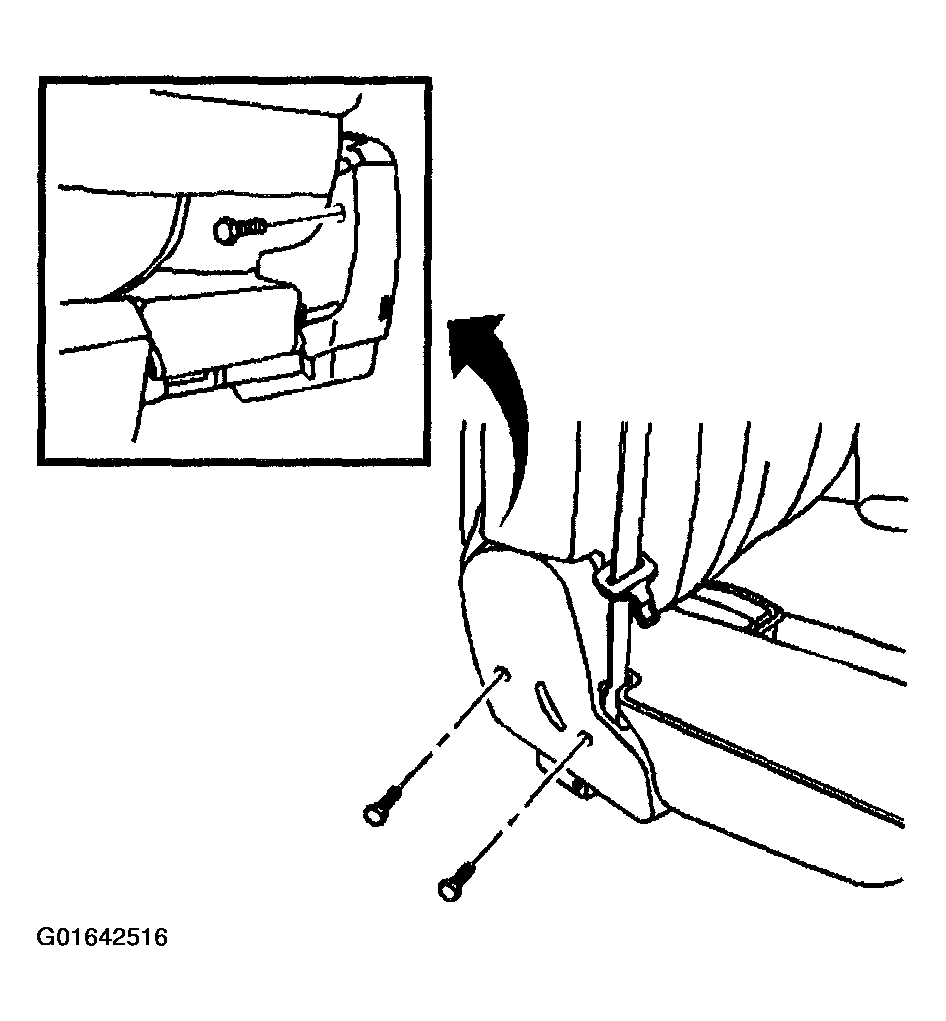

Fig 2: Inboard Rear Seat Back Cushion Latch Cover With Screws

Courtesy of GENERAL MOTORS CORP.
