Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat belt upper guide shoulder bolt.
  2. Remove the right rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (TRAILBLAZER, ENVOY & BRAVADA) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (TRAILBLAZER EXT & ENVOY XL) in Interior Trim.
  3. Remove the rear seat belt lower anchor nut.
  4. Remove the bolt that retains the seat belt retractor assembly to the body.
  5. Remove the seat belt retractor assembly from the vehicle.

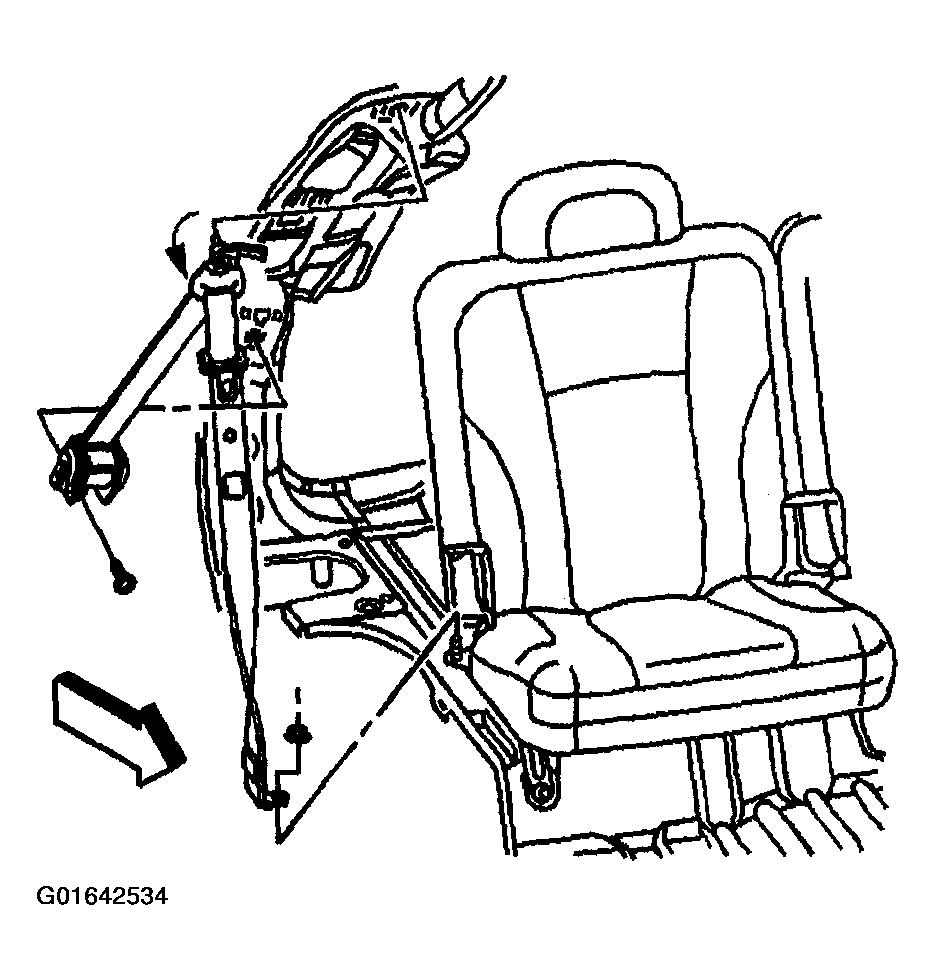

    6. Fig 1: Seat Belt Retractor Assembly From Vehicle - No. 2 Right Rear
    G01642534Courtesy of GENERAL MOTORS CORP.
