Installation Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

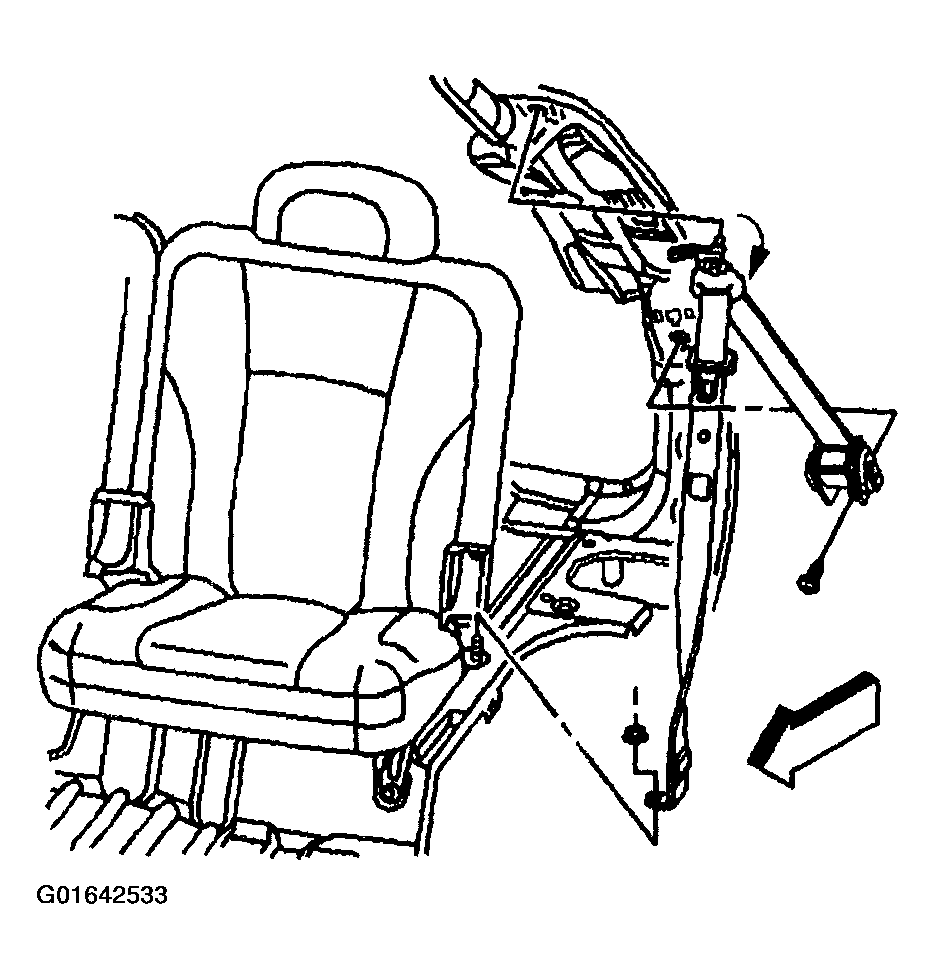

- Install the seat belt retractor assembly to the vehicle.NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the seat belt retractor assembly to the vehicle.
Tighten
Tighten the rear seat belt retractor bolts to 70 N.m (52 lb ft).
- Install the left rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - LEFT (TRAILBLAZER, ENVOY & BRAVADA) or TRIM PANEL REPLACEMENT - REAR QUARTER - LEFT (TRAILBLAZER EXT & ENVOY XL) in Interior Trim.
- Install the rear seat belt lower anchor nut. Ensure that the seat belt webbing is not twisted.
Tighten
Tighten the rear seat mounting nut to 45 N.m (33 lb ft).
- Install the rear seat belt upper guide with the bolt.
Ensure that the seat belt webbing is not twisted.
Tighten
Tighten the bolt to 70 N.m (52 lb ft).
