Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat belt retractor bracket on the seat back frame.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

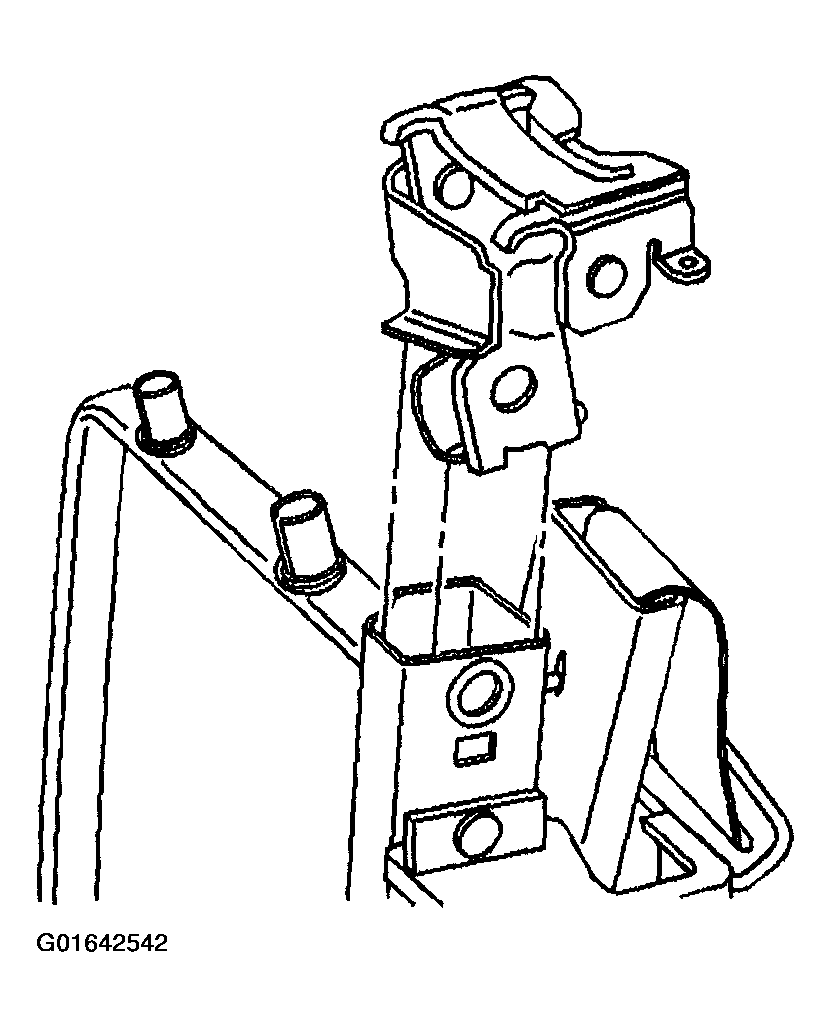

    2. Fig 1: Seat Belt Retractor Bracket On Seat Back Frame (TrailBlazer, Envoy & Bravada)
    G01642542Courtesy of GENERAL MOTORS CORP.
  2. Install the seat belt retractor bracket bolt (1) to the bracket and seat back frame.

    Tighten

    Tighten the seat belt retractor bracket bolt to 55 N.m (40 lb ft).

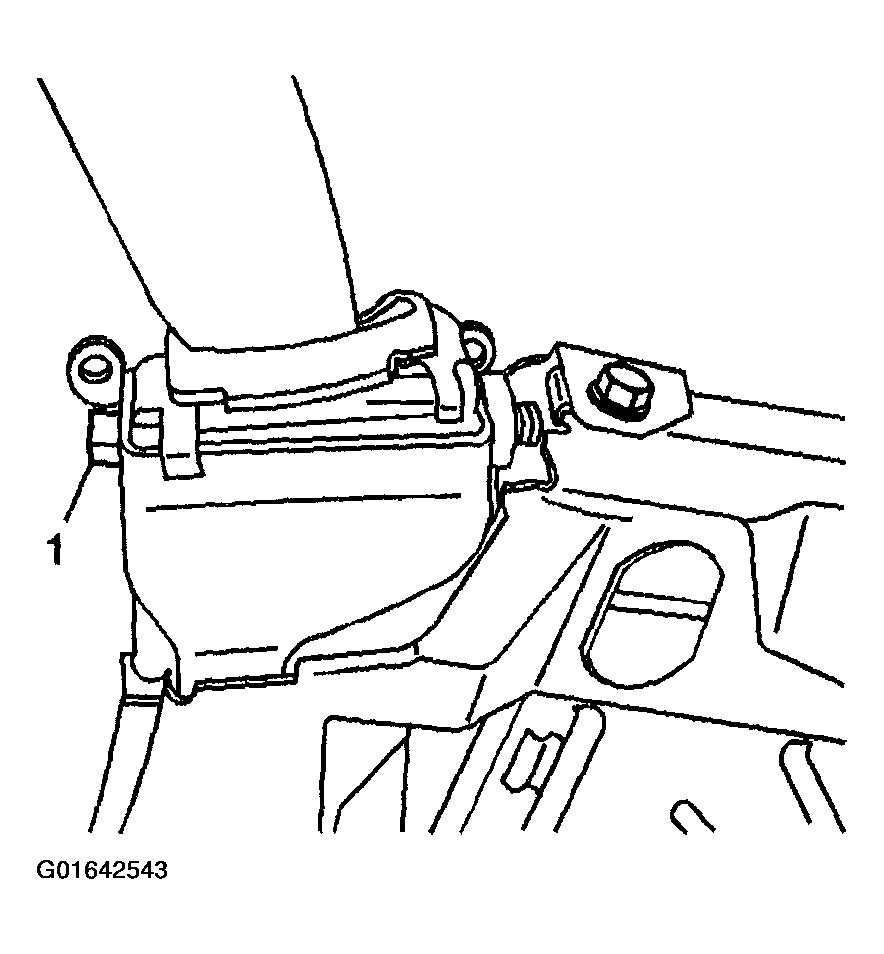

    3. Fig 2: Seat Belt Retractor Bracket Bolt To Bracket And Seat Back Frame (TrailBlazer, Envoy & Bravada)
    G01642543Courtesy of GENERAL MOTORS CORP.
  3. Position the seat belt retractor assembly onto the seat back frame.
  4. Install the push pin on the seat back retractor to the seat back frame.
  5. Install the rear seat belt center retractor nut.

    Tighten

    Tighten the rear seat belt center retractor nut to 35 N.m (26 lb ft).

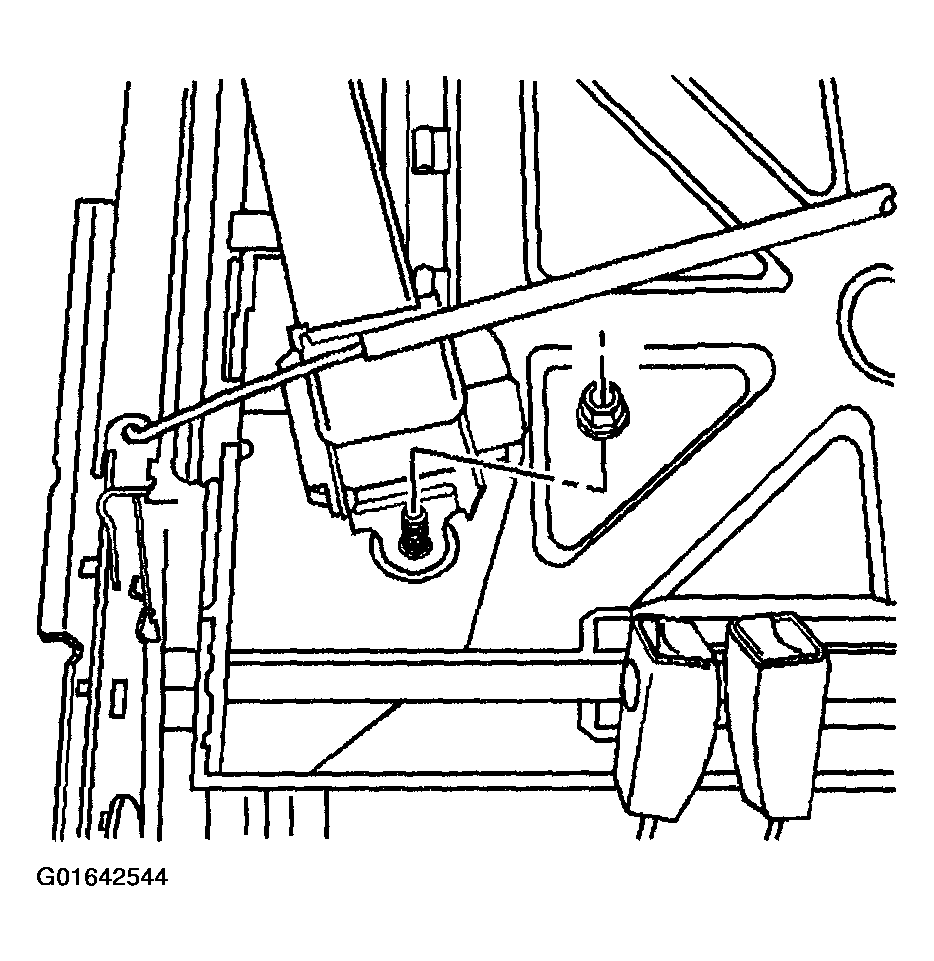

    6. Fig 3: Rear Seat Belt Center Retractor Nut (TrailBlazer, Envoy & Bravada)
    G01642544Courtesy of GENERAL MOTORS CORP.
  6. Install the seat belt into the retractor bracket by guiding the belt through the slot in the bracket.
  7. Install the rear seat back pad and cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) in Seats.
    8. Fig 4: Seat Belt Into Retractor Bracket By Guiding Belt Through Slot In Bracket (TrailBlazer, Envoy & Bravada)
    G01642545Courtesy of GENERAL MOTORS CORP.
  8. Install the rear seat back seat belt bezel onto the seat belt.
  9. Install the seat belt bezel to the seat back.

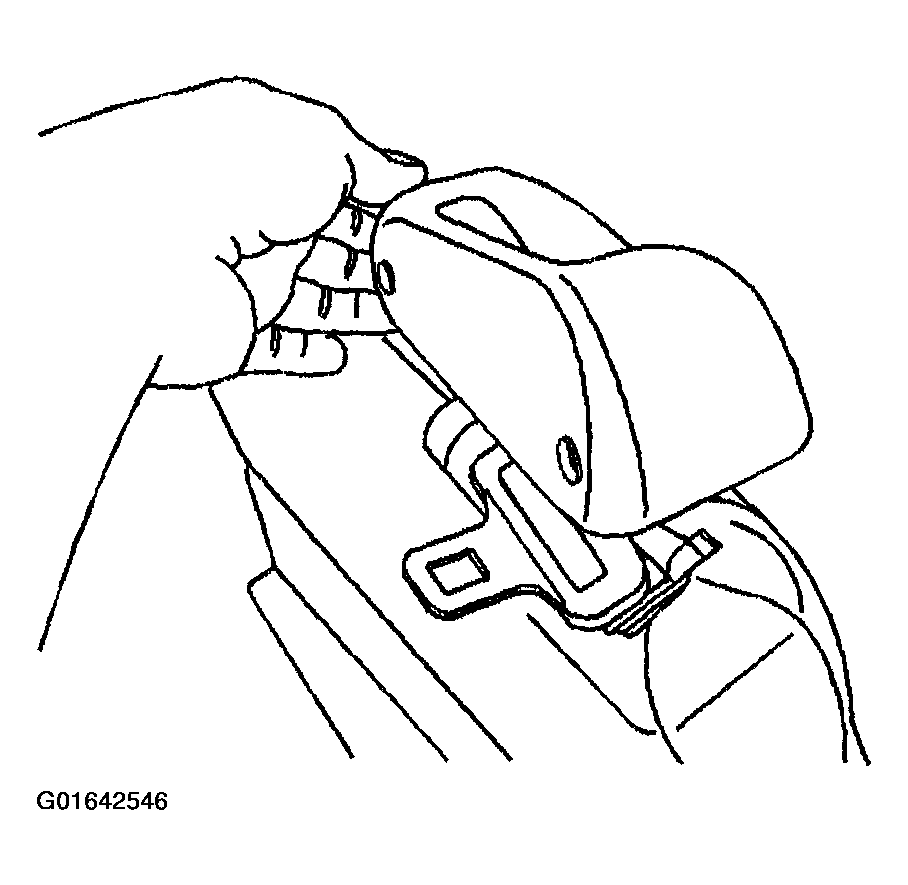

    10. Fig 5: Seat Belt Bezel To Seat Back (TrailBlazer, Envoy & Bravada)
    G01642546Courtesy of GENERAL MOTORS CORP.
  10. Install the seat back bezel push pins.
    11. Fig 6: Seat Back Bezel Push Pins (TrailBlazer, Envoy & Bravada)
    G01642547Courtesy of GENERAL MOTORS CORP.
  11. Install the rear seat belt anchor to the seat belt buckle bracket with the nut.

    Tighten

    Tighten the rear seat belt anchor nut to 50 N.m (37 lb ft).

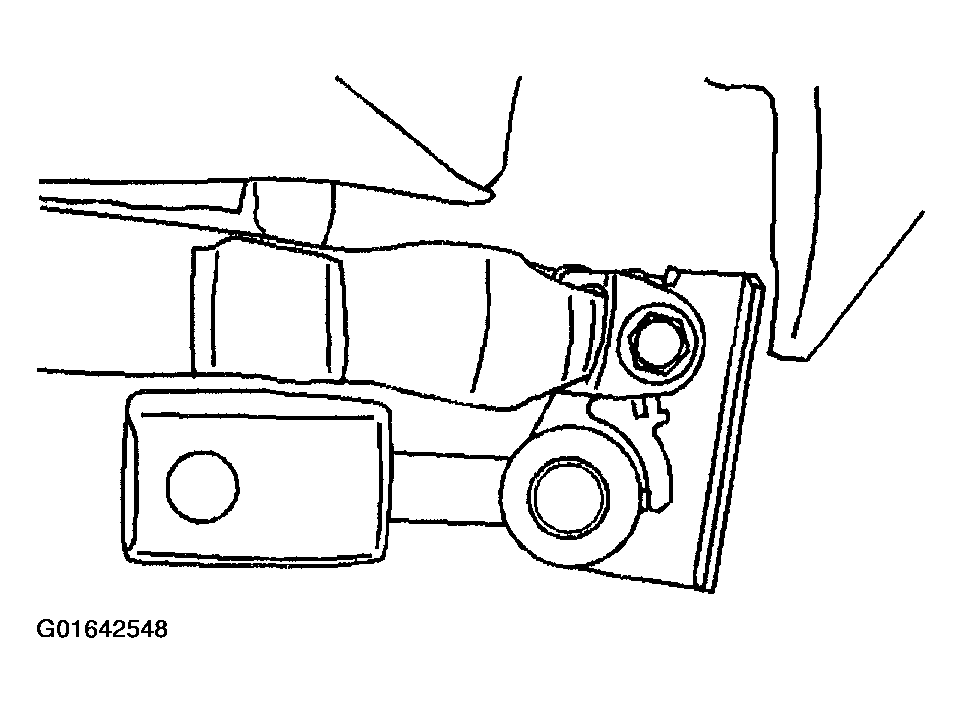

    12. Fig 7: Rear Seat Belt Anchor To Seat Belt Buckle Bracket With Nut (TrailBlazer, Envoy & Bravada)
    G01642548Courtesy of GENERAL MOTORS CORP.
  12. Install the rear seat back assembly. Refer to SEAT CUSHION REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT BACK REPLACEMENT - REAR NO. 1(TRAILBLAZER EXT & ENVOY XL) in Seats.
