Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat belt upper guide shoulder bolt.
  2. Remove the rear quarter upper trim, left or right side. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (TRAILBLAZER, ENVOY & BRAVADA) in Interior Trim.
  3. Remove the lower seat belt anchor bolt cover.
  4. Remove the rear seat belt floor anchor bolt.
  5. Remove the rear quarter lower trim, left or right side. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - LEFT (TRAILBLAZER, ENVOY & BRAVADA) , TRIM PANEL REPLACEMENT - REAR QUARTER - LEFT (TRAILBLAZER EXT & ENVOY XL) , TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (TRAILBLAZER, ENVOY & BRAVADA) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (TRAILBLAZER EXT & ENVOY XL) in Interior Trim.
  6. Remove the bolt that retains the rear seat belt retractor assembly to the body.

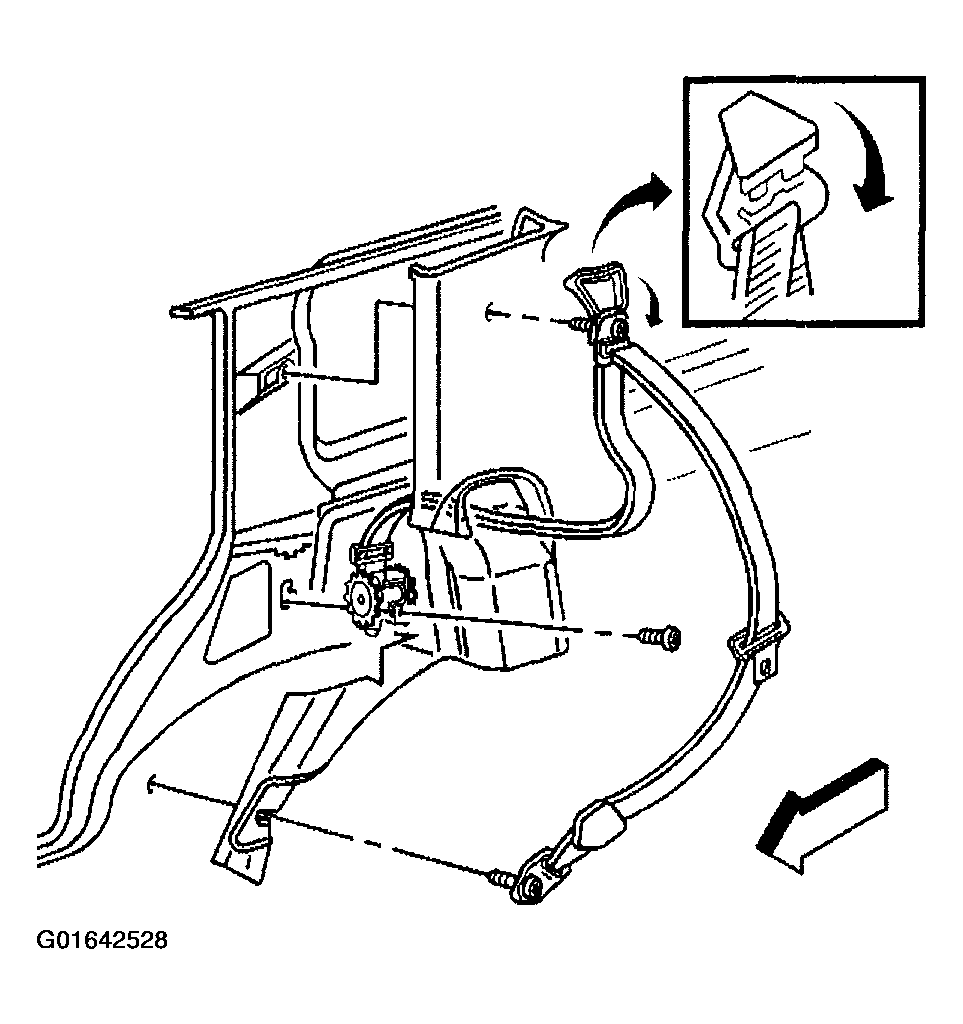

    7. Fig 1: Bolt Retaining Rear Seat Belt Retractor Assembly To Body
    G01642528Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear seat belt retractor assembly from the vehicle.
