Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat switch bezel. Refer to SEAT SWITCH BEZEL REPLACEMENT in Seats.
  2. Remove the seat trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT in Seats.
  3. Remove the seat belt anchor nut from the seat adjuster assembly.

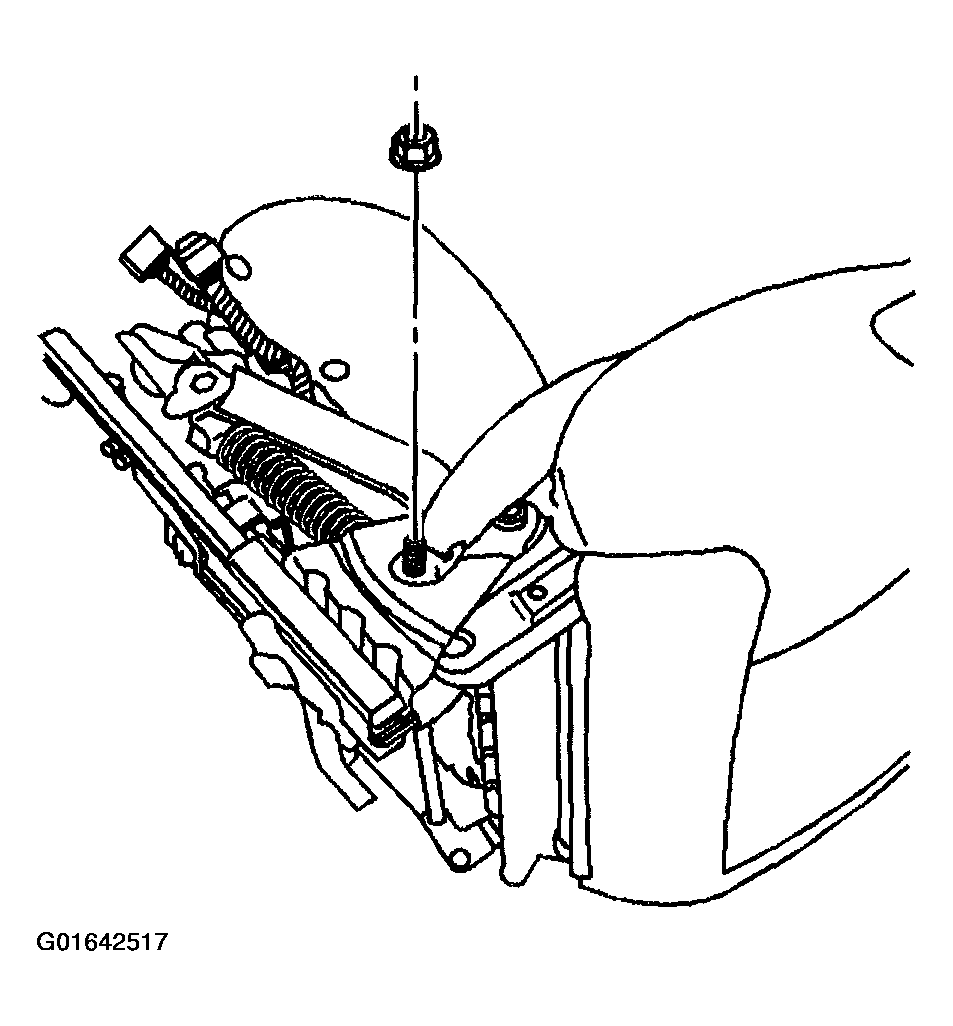

    4. Fig 1: Front Seat Belt Anchor Nut From Seat Adjuster Assembly
    G01642517Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw from the front seat back seat belt bezel.
  5. Slide the bezel off the seat belt.
    6. Fig 2: Screw From Front Seat Back Seat Belt Bezel
    G01642518Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT in Seats.
  7. Remove the seat back panel from the seat back frame. Refer to SEAT BACK PANEL REPLACEMENT - FRONT in Seats.
  8. Remove the seat belt from the retractor bracket by sliding the seat belt through the slot.
    9. Fig 3: Seat Belt From Retractor Bracket By Sliding Seat Belt Through Slot
    G01642519Courtesy of GENERAL MOTORS CORP.
  9. Remove the lower seat belt retractor retaining bolt and nut.

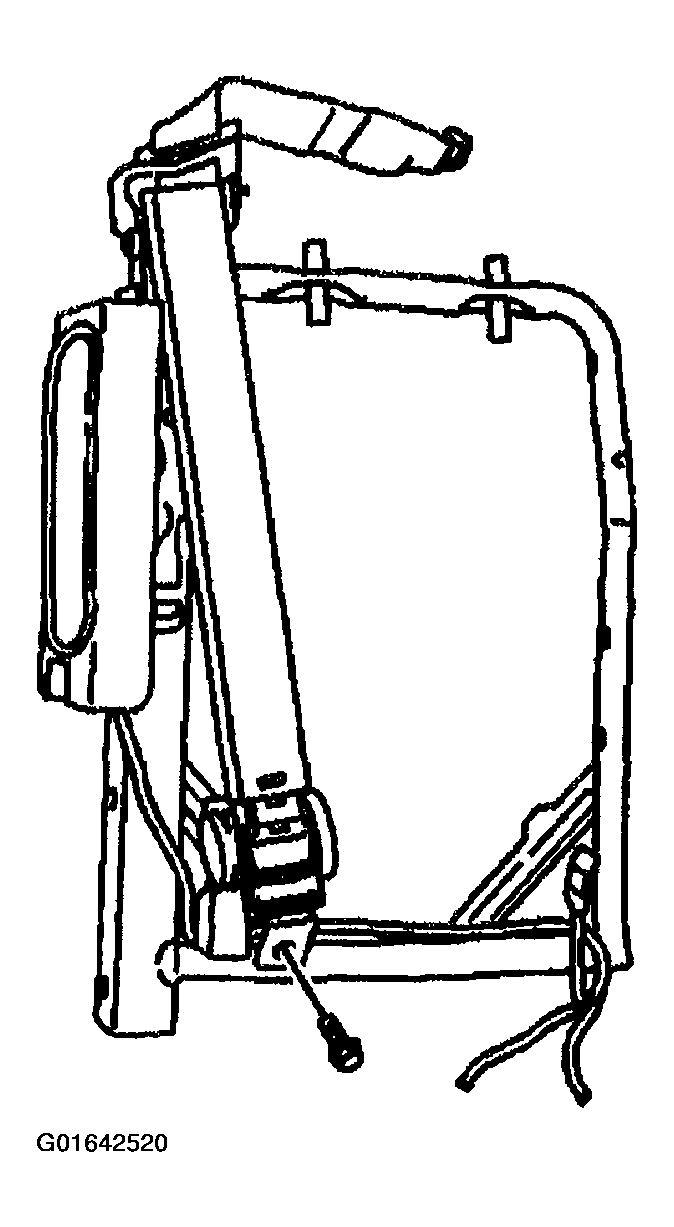

    10. Fig 4: Lower Seat Belt Retractor Retaining Bolt And Nut
    G01642520Courtesy of GENERAL MOTORS CORP.
  10. Remove the retractor assembly by pulling the push pin (2) from the seat back frame.
  11. Remove the seat belt retractor bracket bolt (1) from the bracket and seat back frame.

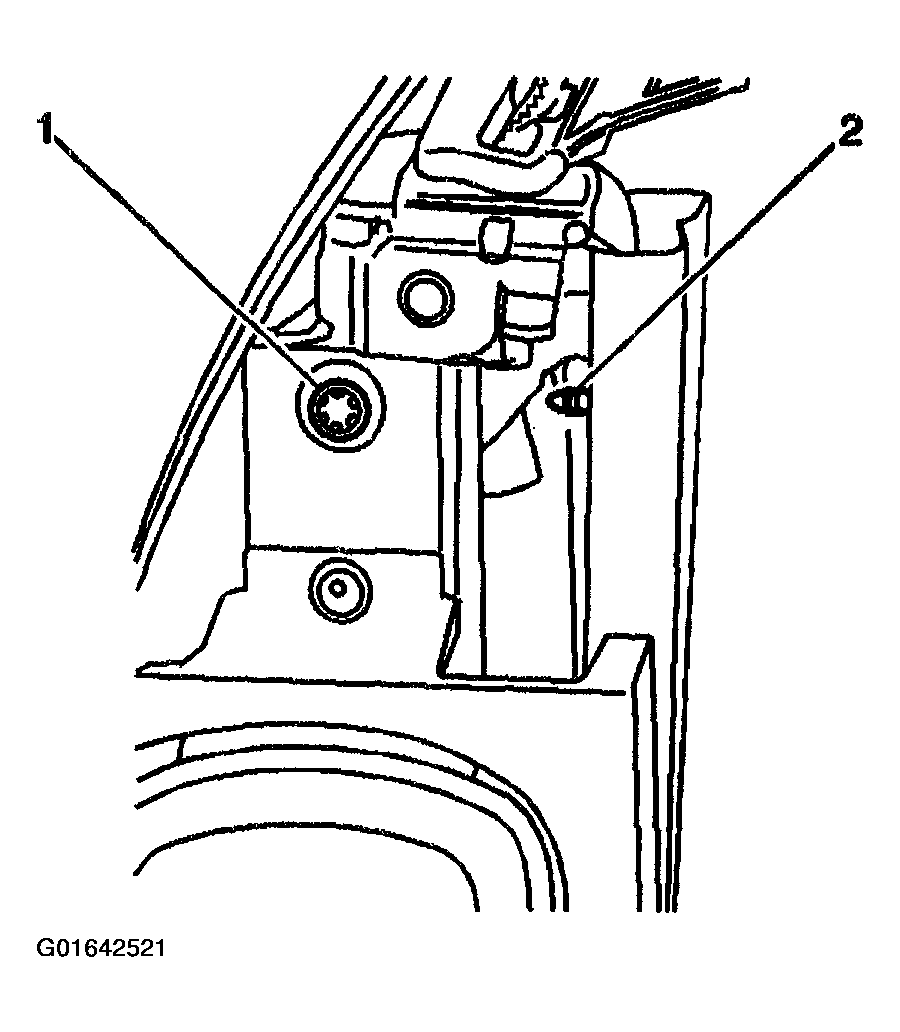

    12. Fig 5: Seat Belt Retractor Bracket Bolt From Bracket And Seat Back Frame
    G01642521Courtesy of GENERAL MOTORS CORP.
  12. Remove the seat belt retractor bracket from the seat back frame.

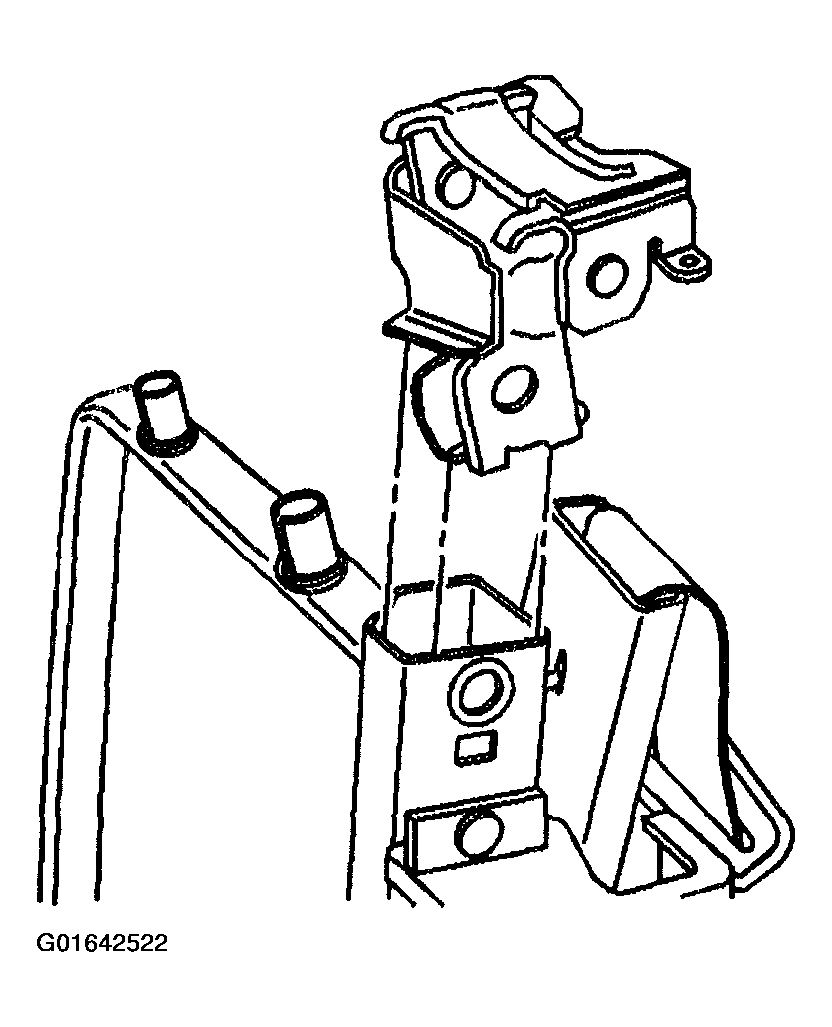

    13. Fig 6: Seat Belt Retractor Bracket From Seat Back Frame
    G01642522Courtesy of GENERAL MOTORS CORP.
