Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle assembly onto the seat.

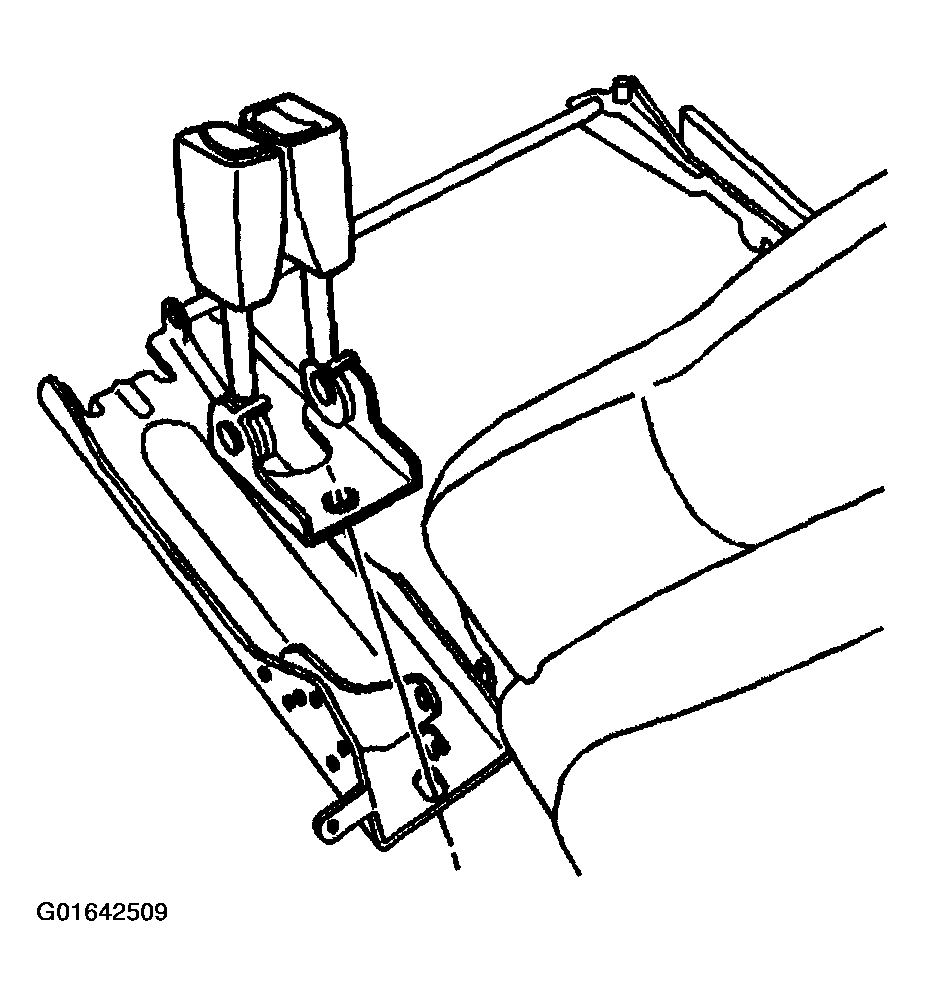

    2. Fig 1: No. 2 Rear Seat Belt Buckle Assembly Onto Seat
    G01642509Courtesy of GENERAL MOTORS CORP.
  2. Install a new grommet (1).

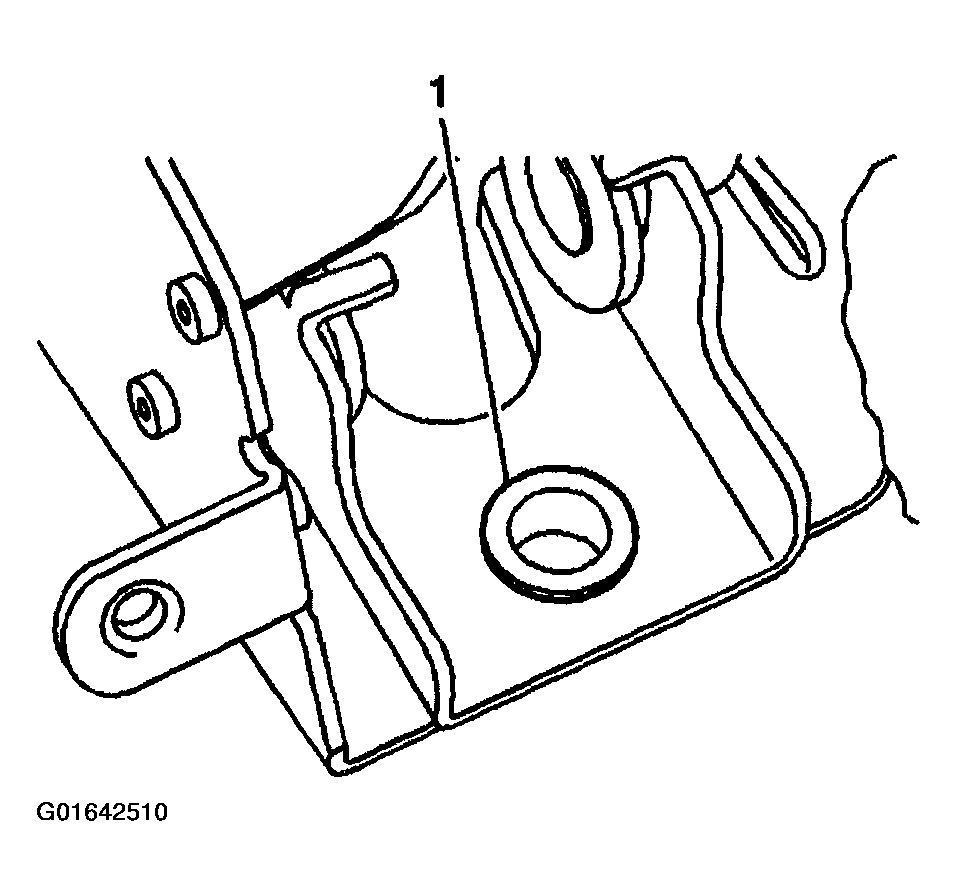

    3. Fig 2: Grommet - No. 2 Rear Seat Belt Buckle
    G01642510Courtesy of GENERAL MOTORS CORP.
  3. Install the seat assembly in the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2 .
