Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  2. Disconnect the seat belt reminder wiring harness (3) on the driver's seat.

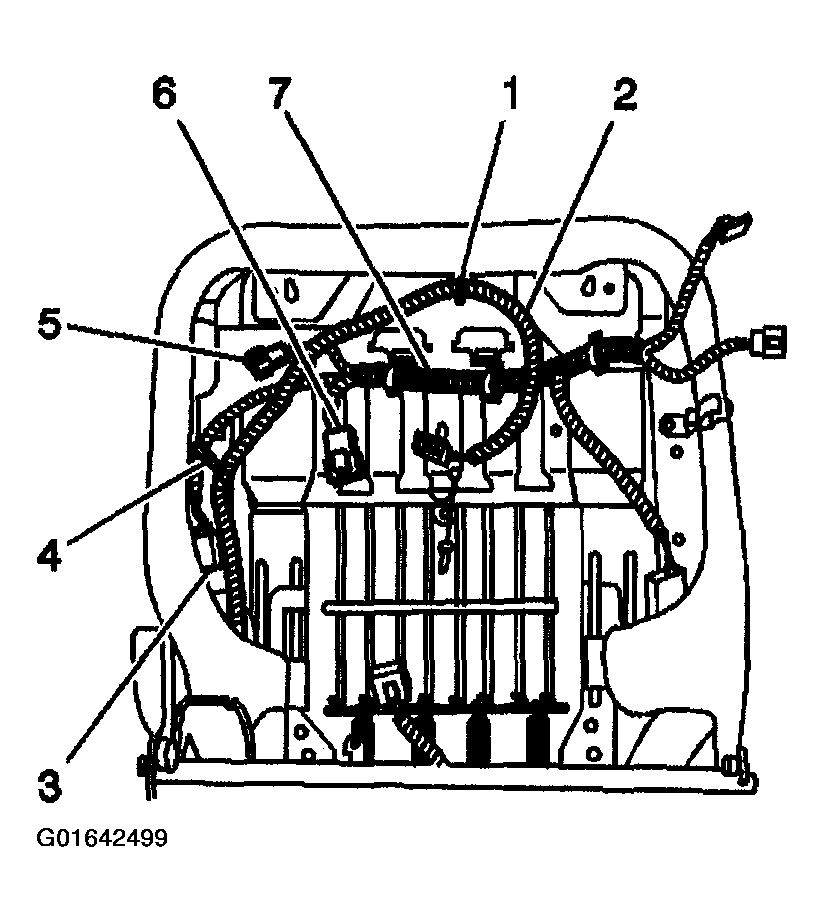

    3. Fig 1: Seat Belt Reminder Wiring Harness On Driver'S Seat
    G01642499Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut (1) which retains the seat belt buckle to the seat assembly.

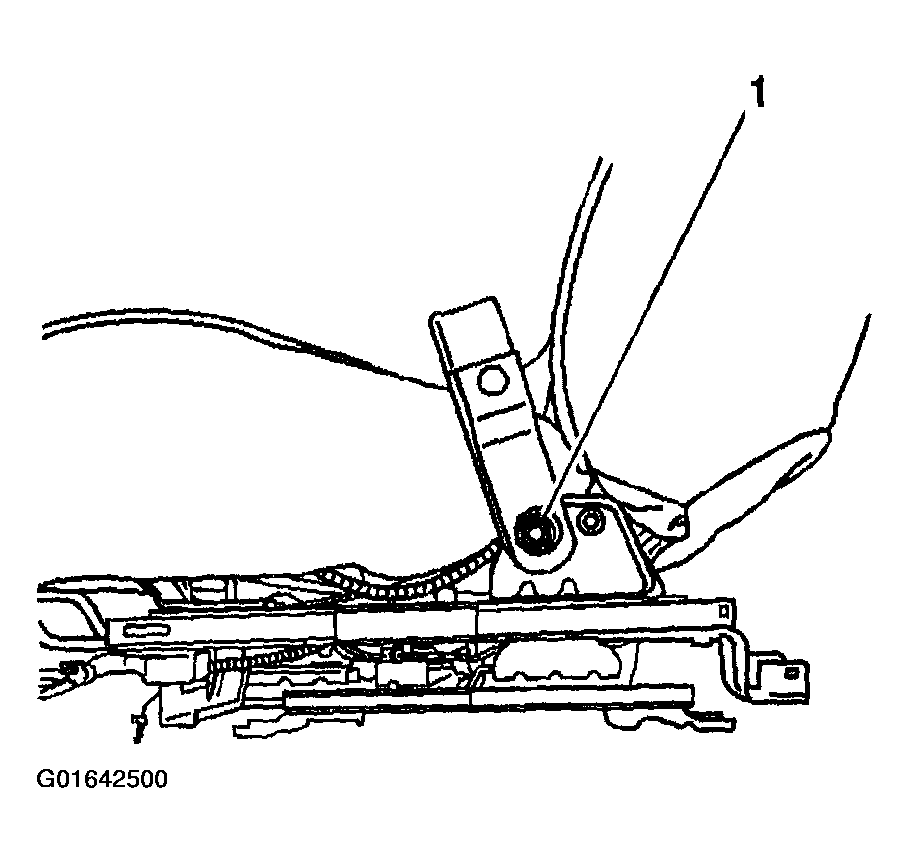

    4. Fig 2: Nut Retaining Seat Belt Buckle To Seat Assembly
    G01642500Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat belt buckle from the seat assembly.
