Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the left rear seat back to a cargo position.
  2. Adjust the seat filler panel on the bottom of the seat back in order to access the center rear seat back mounting nut.
  3. Remove the rear seat back mounting nut.
  4. Return the seat to an upright position.
  5. Remove the clip(s) that retain the seat belt buckle anchor plate to the latch bracket.
  6. Remove the seat belt buckle/anchor plate from the vehicle.

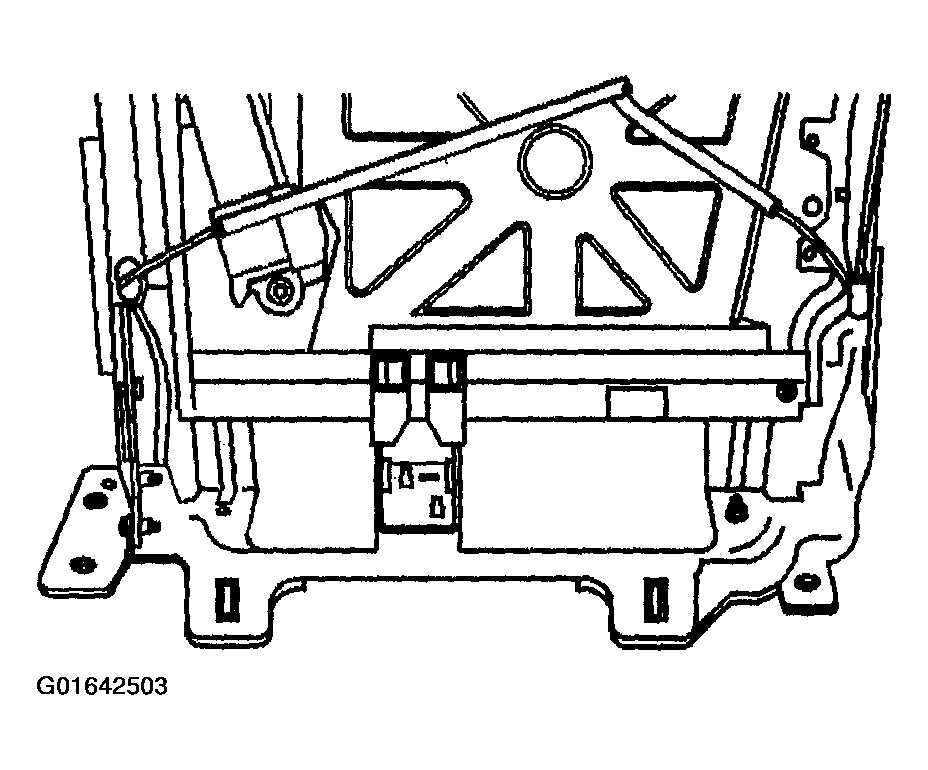

    7. Fig 1: Center Rear Seat Belt Buckle (TrailBlazer, Envoy & Bravada)
    G01642503Courtesy of GENERAL MOTORS CORP.
