Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the rear seat lower anchor to the seat cushion frame with the bolt (2).

    Tighten

    Tighten the rear seat lower anchor bolt to 35 N.m (26 lb ft).

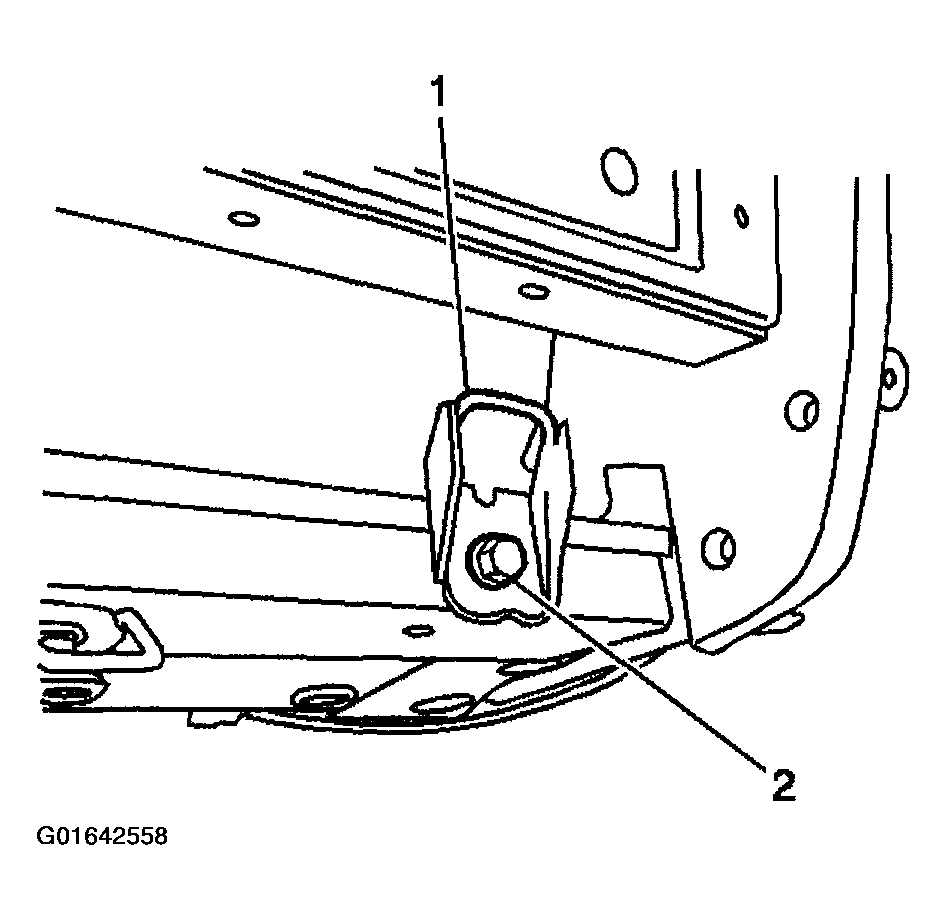

    2. Fig 1: Rear Seat Lower Anchor To Seat Cushion Frame With Bolt
    G01642558Courtesy of GENERAL MOTORS CORP.
  2. Install the trim panel to the seat cushion. Refer to SEAT CUSHION TRIM PANEL REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  3. Install the seat in the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
