Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
  2. Remove the trim panel from the seat cushion.

    Refer to SEAT CUSHION TRIM PANEL REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .

  3. Remove the bolt (1) securing the child tether anchor (2) to the seat cushion frame.

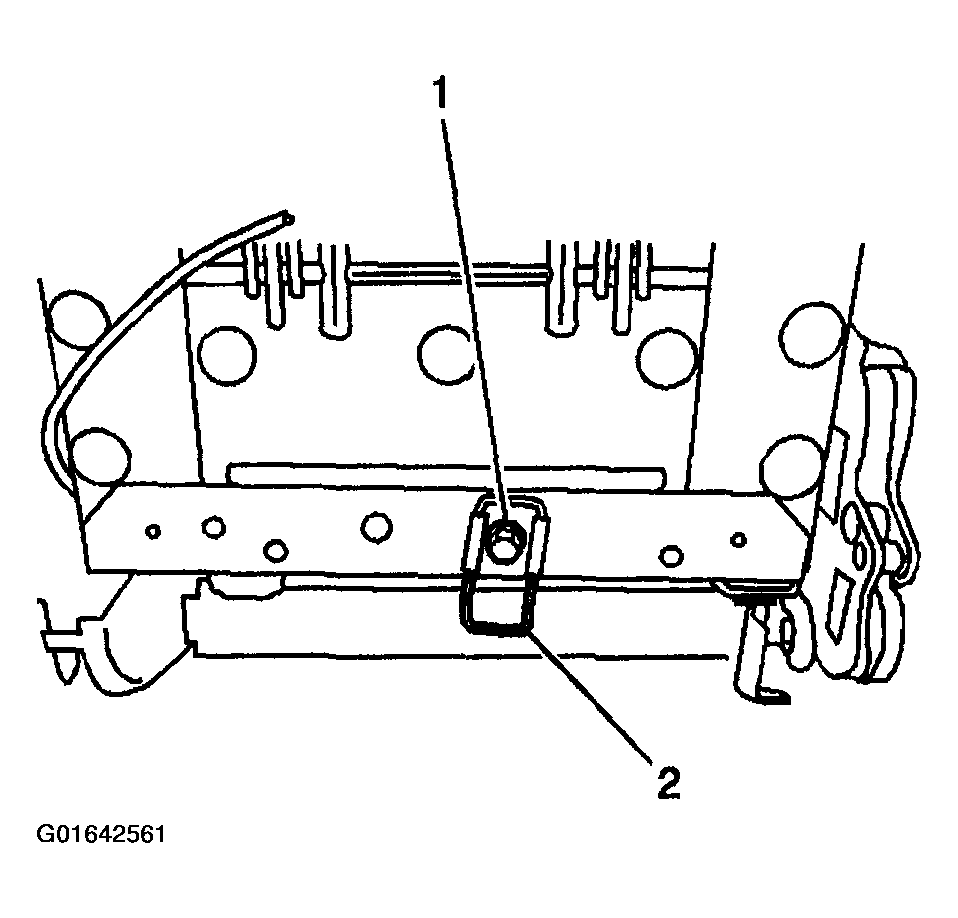

    4. Fig 1: Bolt Securing Child Tether Anchor To Seat Cushion Frame (TrailBlazer EXT & Envoy XL)
    G01642561Courtesy of GENERAL MOTORS CORP.
  4. Remove the child tether anchor.
