Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt that retains the wheelhouse panel to the rocker panel molding.
  2. Remove the 2 screws that retain the wheelhouse panel to the rear fascia.
  3. Remove the 4 push-pins retaining the wheelhouse panel to the wheelhouse.
  4. Remove the wheelhouse panel from the vehicle.

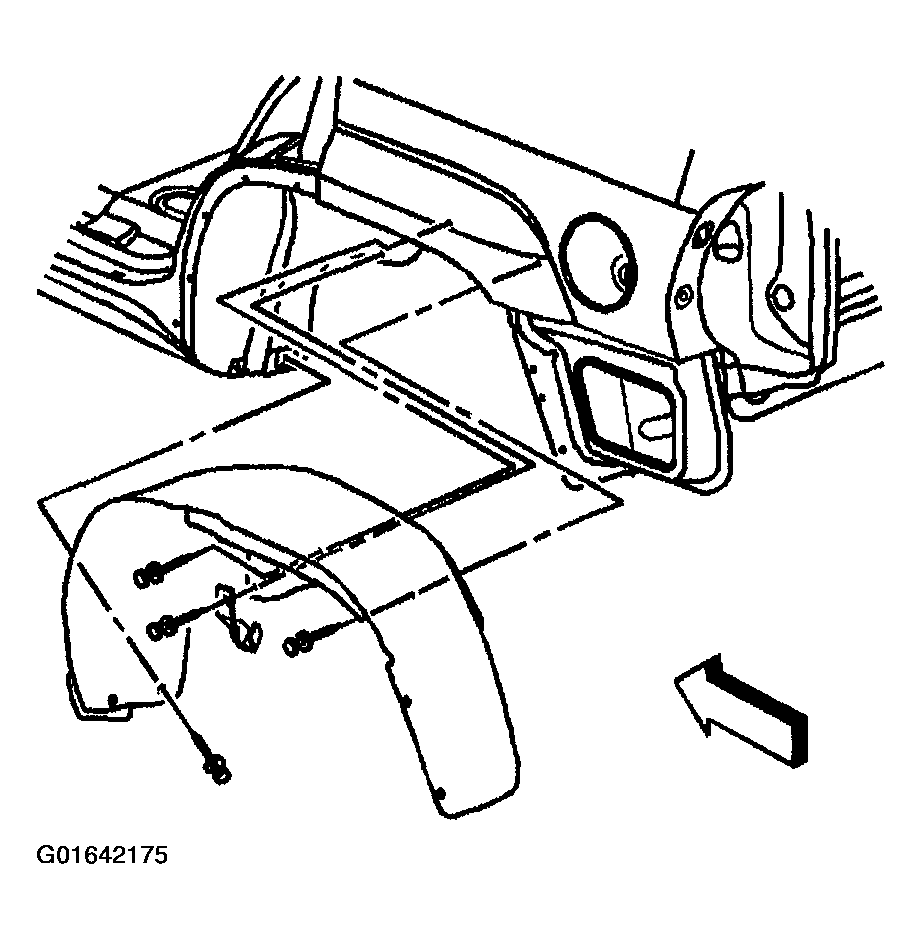

    5. Fig 1: Wheelhouse Panel From Vehicle
    G01642175Courtesy of GENERAL MOTORS CORP.
