Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Pull the liftgate weatherstrip from the liftgate opening pinch-weld flange.

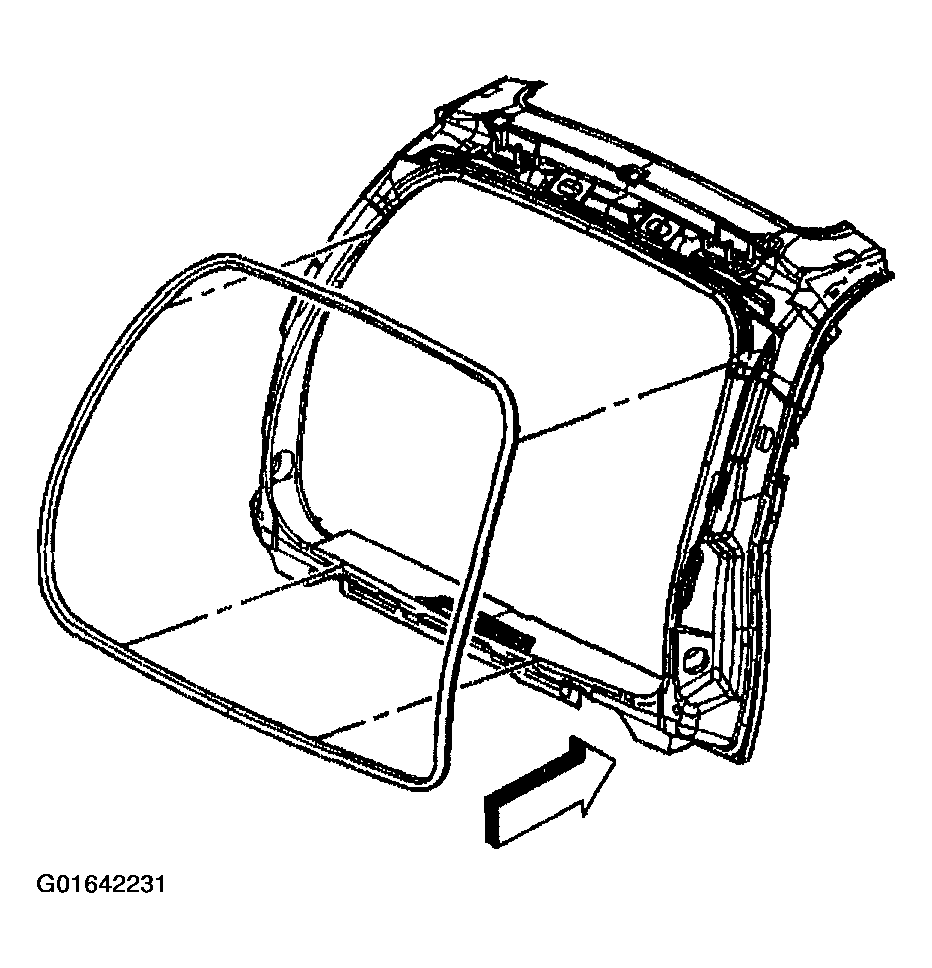

  3. Fig 1: Lift Gate Weatherstrip
    G01642231Courtesy of GENERAL MOTORS CORP.
