Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate weatherstrip, starting at the top center of the liftgate opening position the liftgate weatherstrip to the pinch-weld flange and working down the right and left sides towards the bottom center, being careful not to stretch the liftgate weatherstrip while installing it.

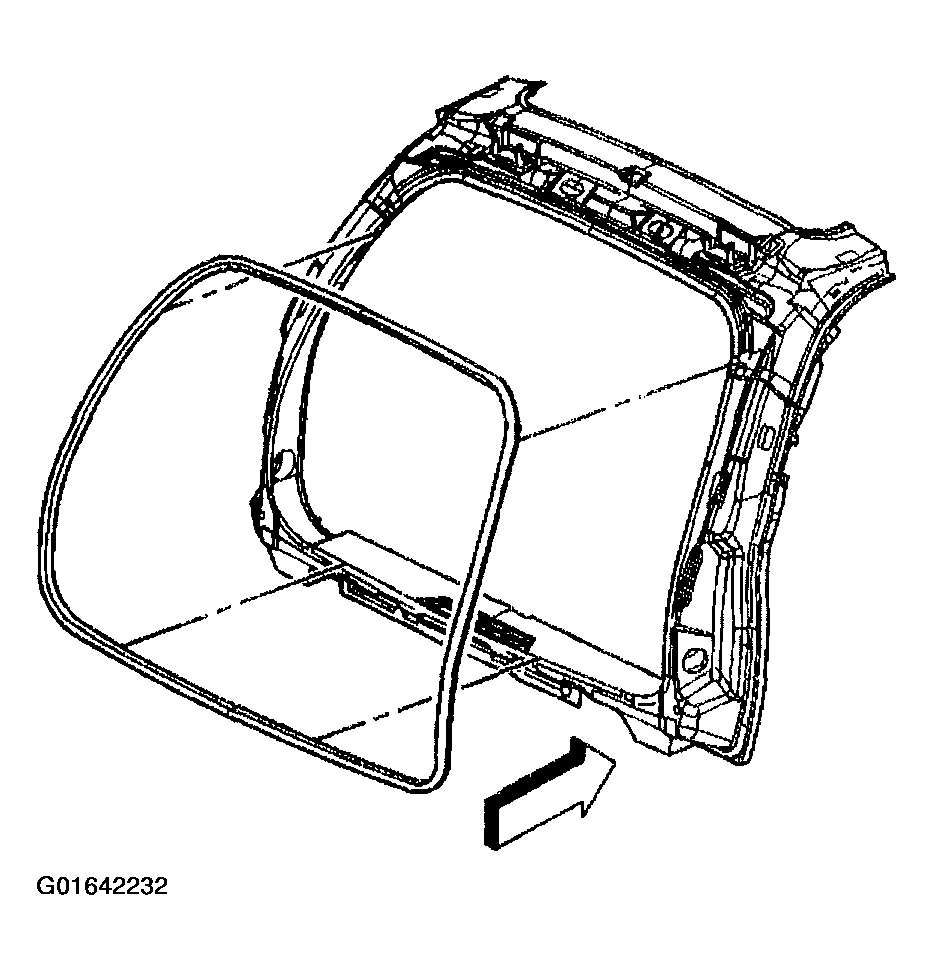

    2. Fig 1: Lift Gate Weatherstrip
    G01642232Courtesy of GENERAL MOTORS CORP.
  2. Install the butt joint seam at the center of the bottom pinch-weld flange.
  3. Use a rubber mallet to ensure full engagement of the liftgate weatherstrip to the pinch-weld flange.
  4. Spooning of the liftgate weatherstrip may be required to complete the installation of the liftgate weatherstrip.
  5. Close the liftgate.
