Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate window weatherstrip, starting at the top center of the liftgate window opening position the liftgate window weatherstrip to the pinch- weld flange and working down the right and left sides towards the bottom center, being careful not to stretch the liftgate window weatherstrip while installing it.

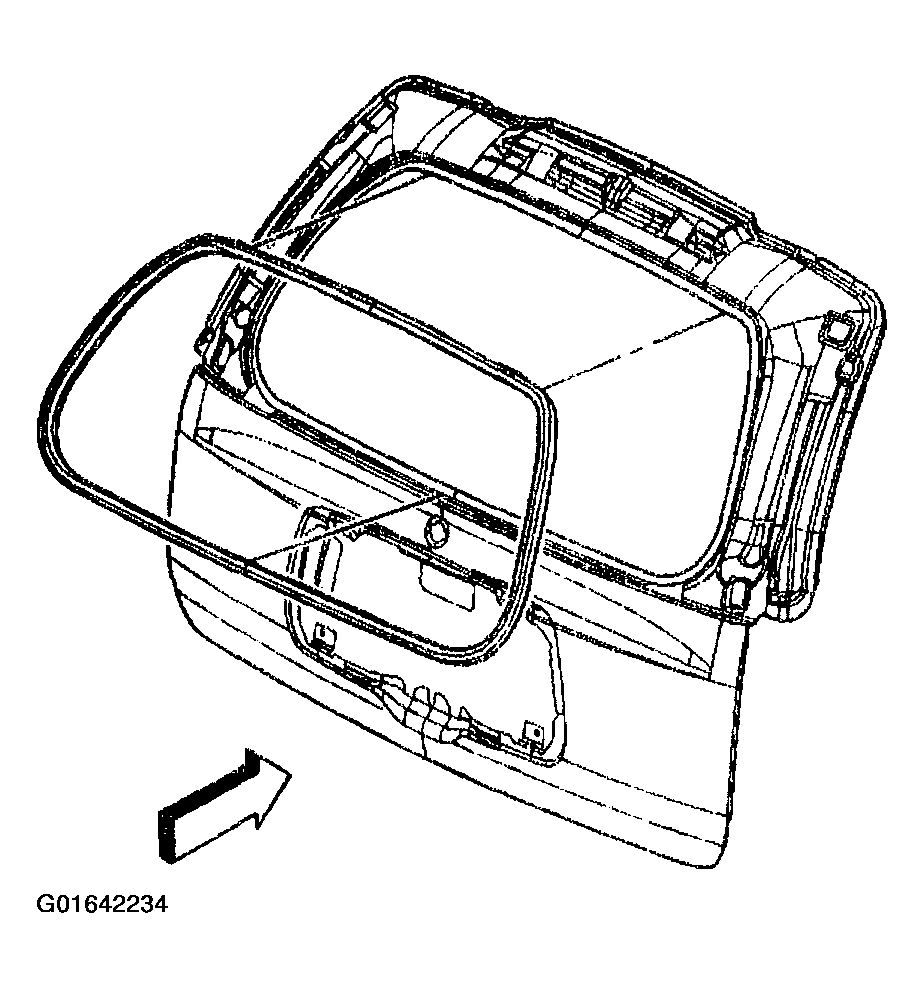

    2. Fig 1: Lift Window Gate Weatherstrip
    G01642234Courtesy of GENERAL MOTORS CORP.
  2. Install the butt joint seam at the center of the bottom pinch-weld flange.
  3. Use a rubber mallet to ensure full engagement of the liftgate window weatherstrip to the pinch-weld flange.
  4. Spooning of the liftgate window weatherstrip may be required to complete the installation of the liftgate window weatherstrip.
  5. Close the liftgate window.
