Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Remove the push-pin retainer from the trim panel.
    3. Fig 1: Push-Pin Retainer From Trim Panel
    G01642171Courtesy of GENERAL MOTORS CORP.
  3. Close the liftgate window.
  4. Open the liftgate.
  5. Remove the screw that retains the pullstrap to the liftgate trim panel.
  6. Remove the pullstrap from the liftgate trim panel.

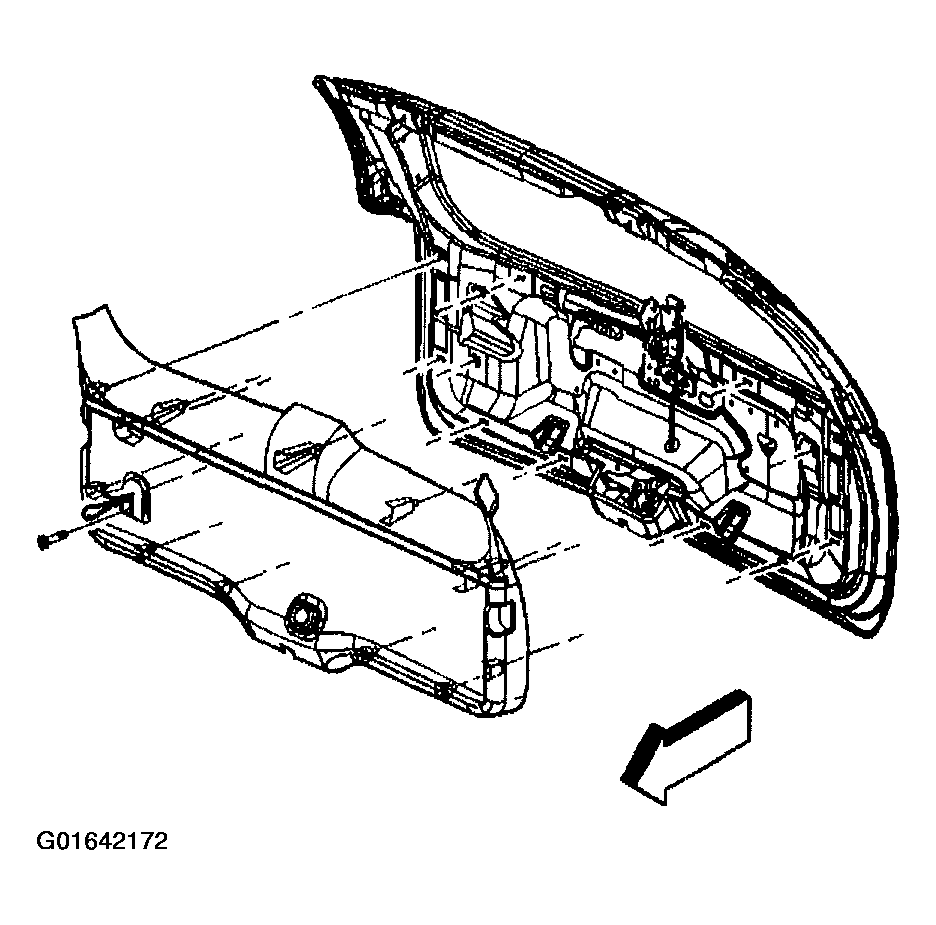

    7. Fig 2: Pullstrap From Liftgate Trim Panel
    G01642172Courtesy of GENERAL MOTORS CORP.
  7. Use a flat-bladed tool in order to carefully release the trim panel retainers.
  8. Remove the trim panel from the liftgate.
