Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the liftgate window struts to the liftgate window.

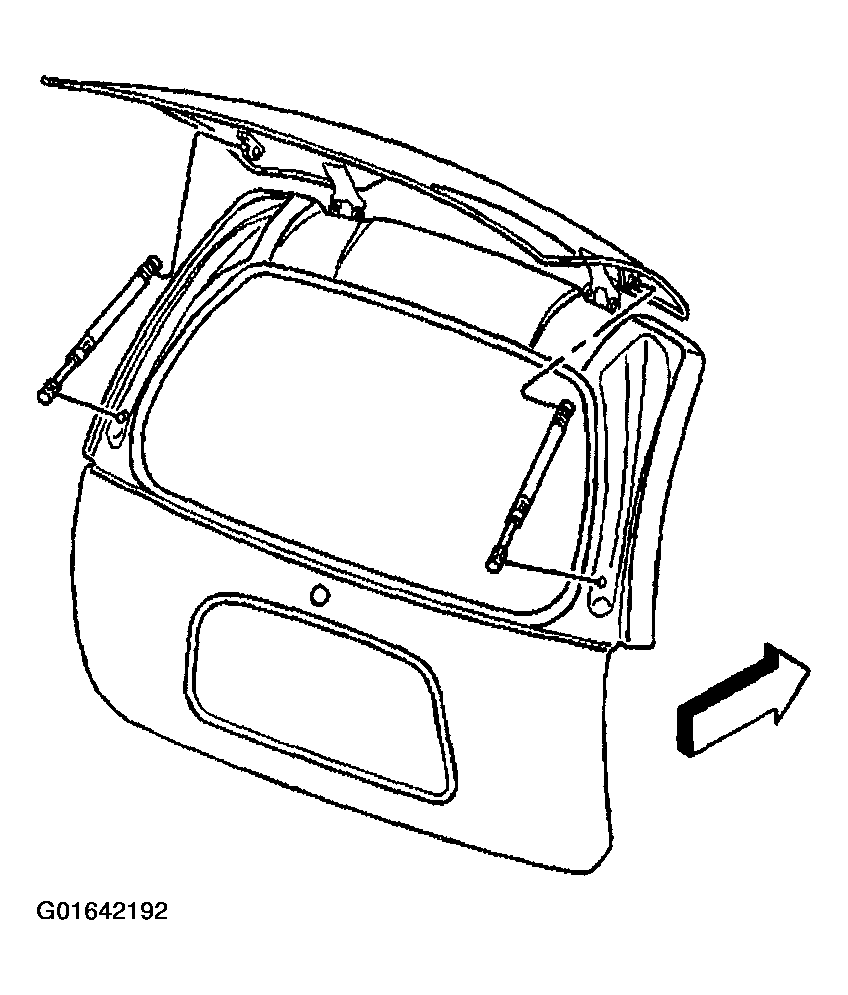

    2. Fig 1: Liftgate Window Struts To Liftgate Window
    G01642192Courtesy of GENERAL MOTORS CORP.
  2. Install the upper end of the liftgate window struts to the ball joint. Press in to place until fully seated.
  3. Install the lower end of the liftgate window struts to the ball joint. Press in to place until fully seated.
  4. Remove the support device from the liftgate window.
  5. Close the liftgate window.
