Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Release the 5 clips that retain the reveal molding to the body.
  3. Peel the reveal molding away from the body and remove from the vehicle.

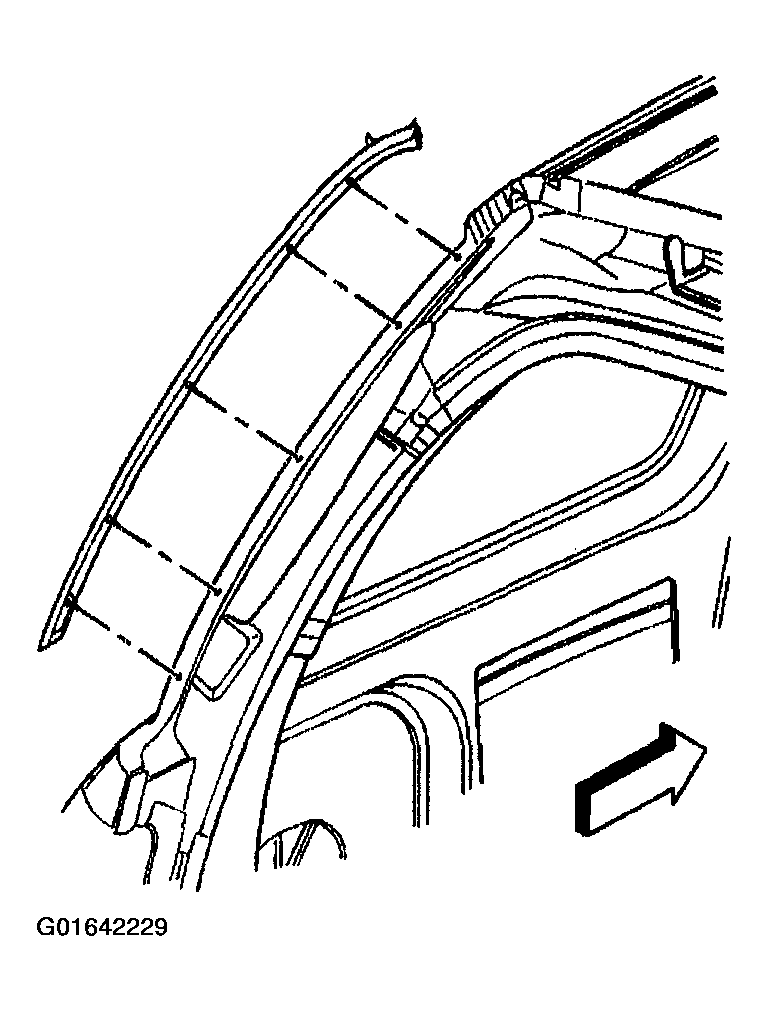

  4. Fig 1: Clips Retaining Reveal Molding To Body
    G01642229Courtesy of GENERAL MOTORS CORP.
