Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the adhesive liner from the reveal molding, if applicable.
  2. Position the reveal molding to the body.
  3. Align the retaining clips on the reveal molding with the recesses in the body.

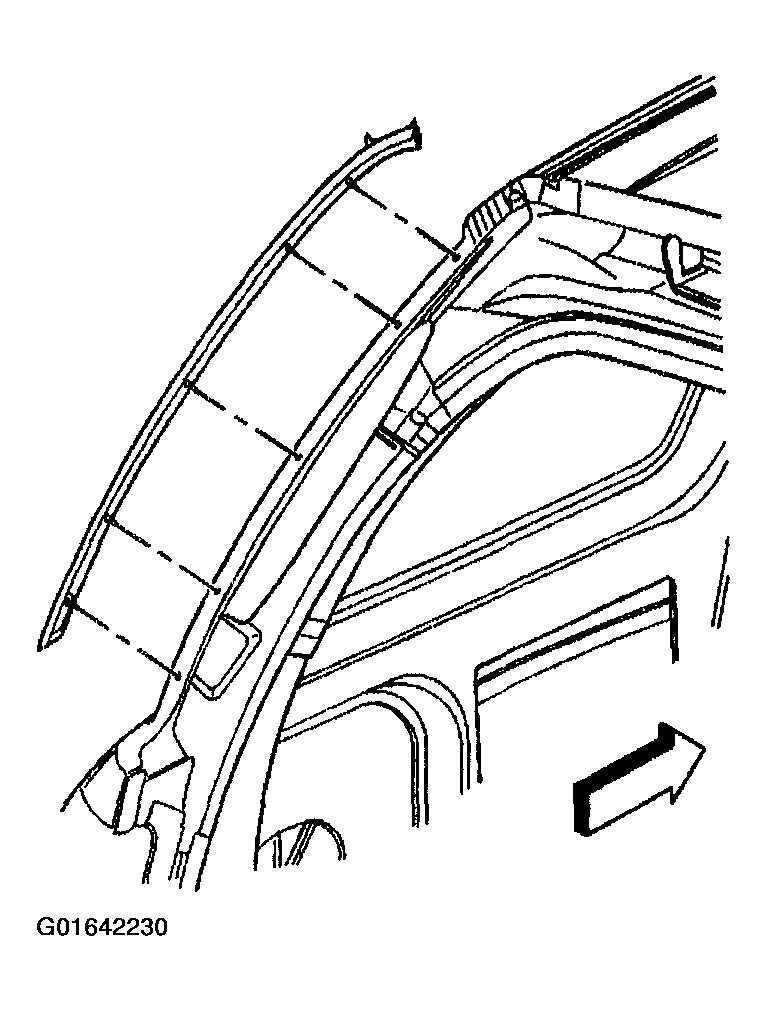

    4. Fig 1: Retaining Clips On Reveal Molding With Recesses In Body
    G01642230Courtesy of GENERAL MOTORS CORP.
  4. Starting at the bottom of the reveal molding, seat the molding to the body. Ensure that the retaining clips are fully seated.
  5. Close the liftgate.
