Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve to the lower quarter panel.

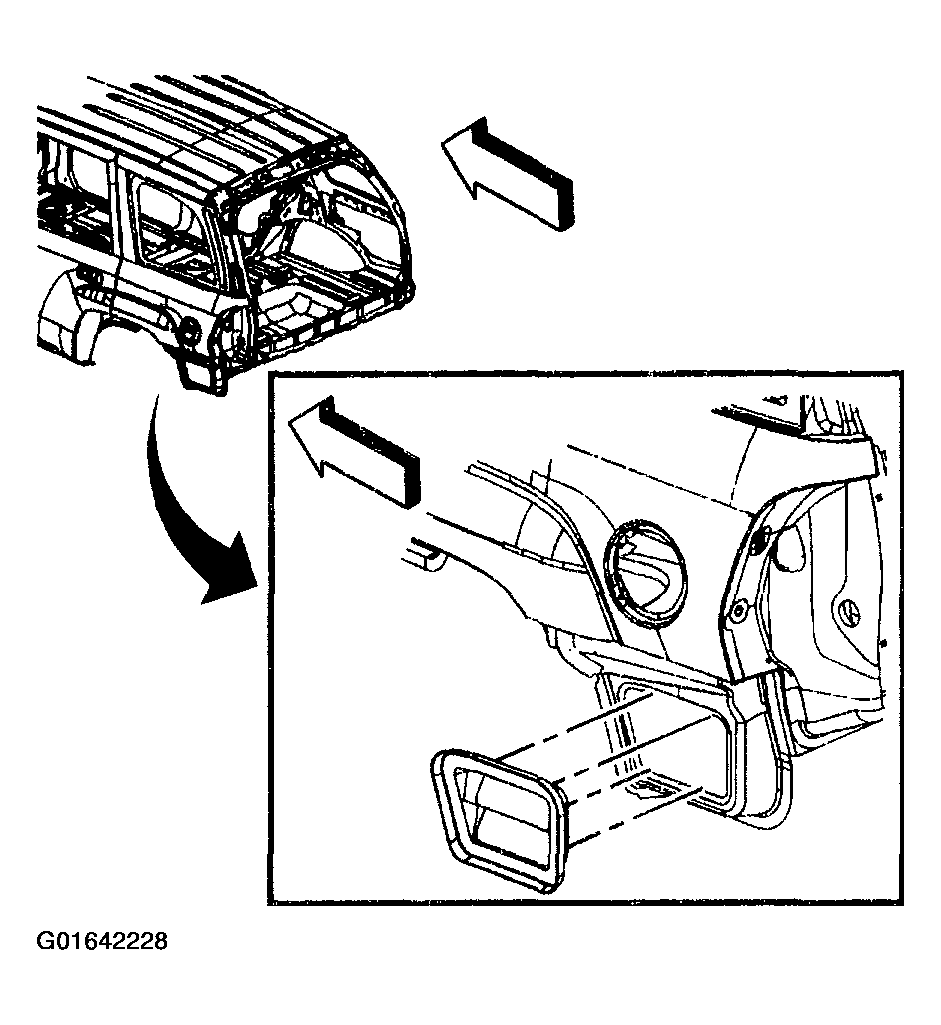

    2. Fig 1: Pressure Relief Valve To Lower Quarter Panel
    G01642228Courtesy of GENERAL MOTORS CORP.
  2. Press the pressure relief valve into the quarter lower panel until the retainers lock into place at the upper and lower locations.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.
