Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT in Interior Trim.
  2. Disconnect the electrical connector (1) from the quarter window switch.

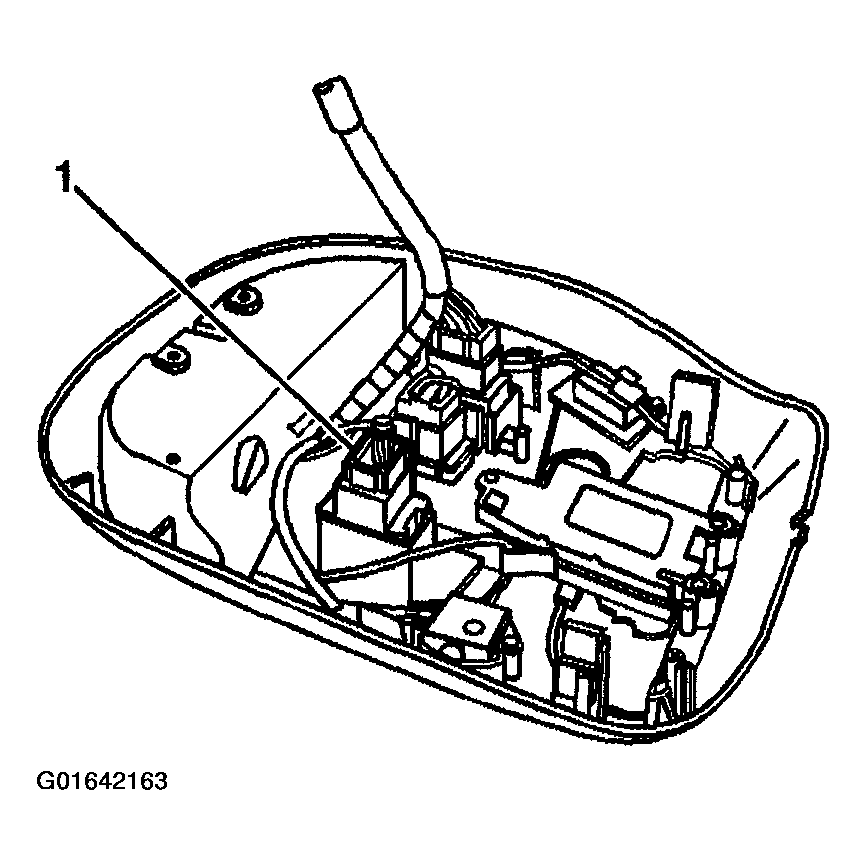

    3. Fig 1: Electrical Connector From Quarter Window Switch
    G01642163Courtesy of GENERAL MOTORS CORP.
  3. Release the tabs retaining the quarter window switch to the overhead console.
  4. Remove the quarter window switch from the overhead console.
