Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the quarter window switch to the overhead console, ensuring the retaining tabs are fully seated.
  2. Connect the electrical connector (1) to the quarter window switch.

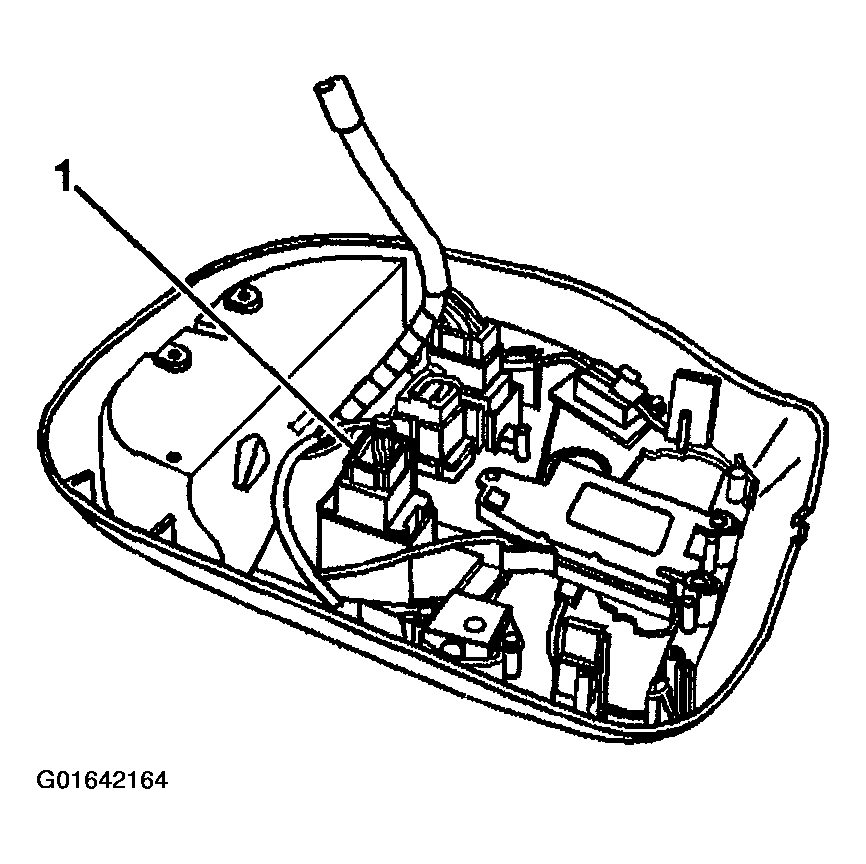

    3. Fig 1: Electrical Connector To Quarter Window Switch
    G01642164Courtesy of GENERAL MOTORS CORP.
  3. Install the front overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT in Interior Trim.
