Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
Remove the lock rod from the lock cylinder.

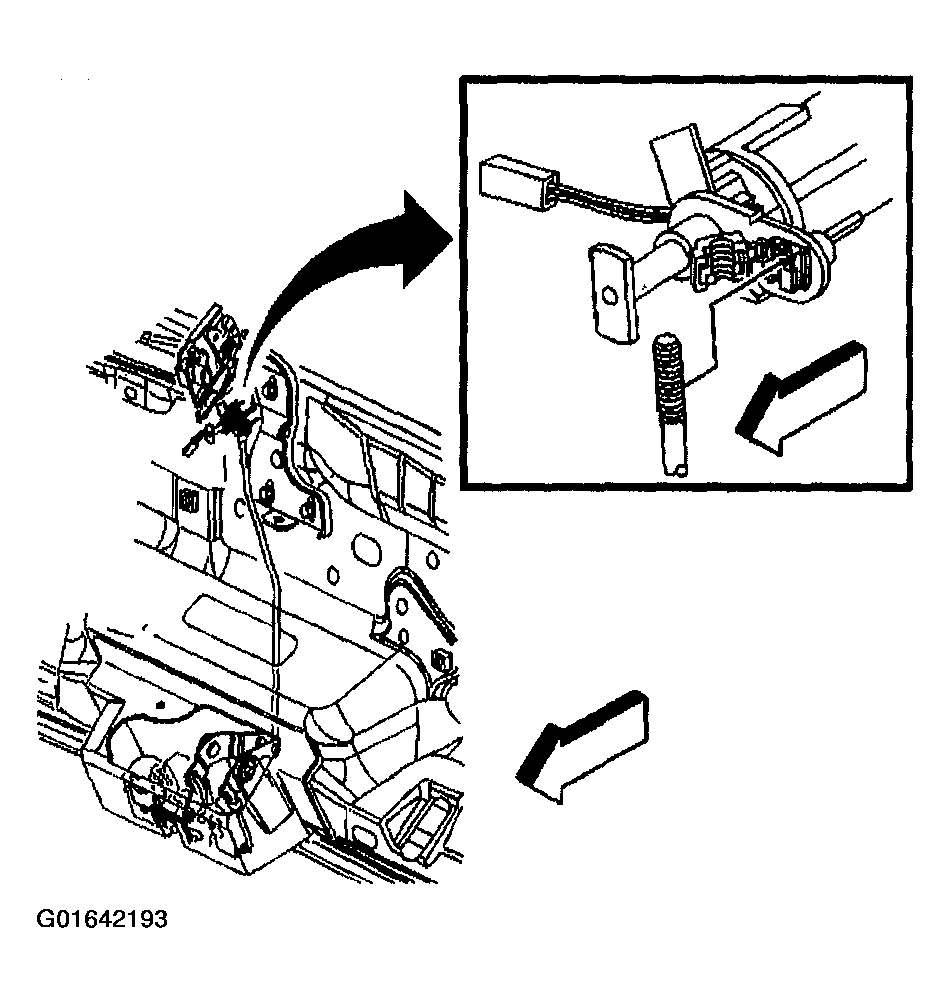

Fig 1: Lock Rod From Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Remove the C clip from the groove in the lock cylinder.
Remove the lock cylinder from the liftgate.

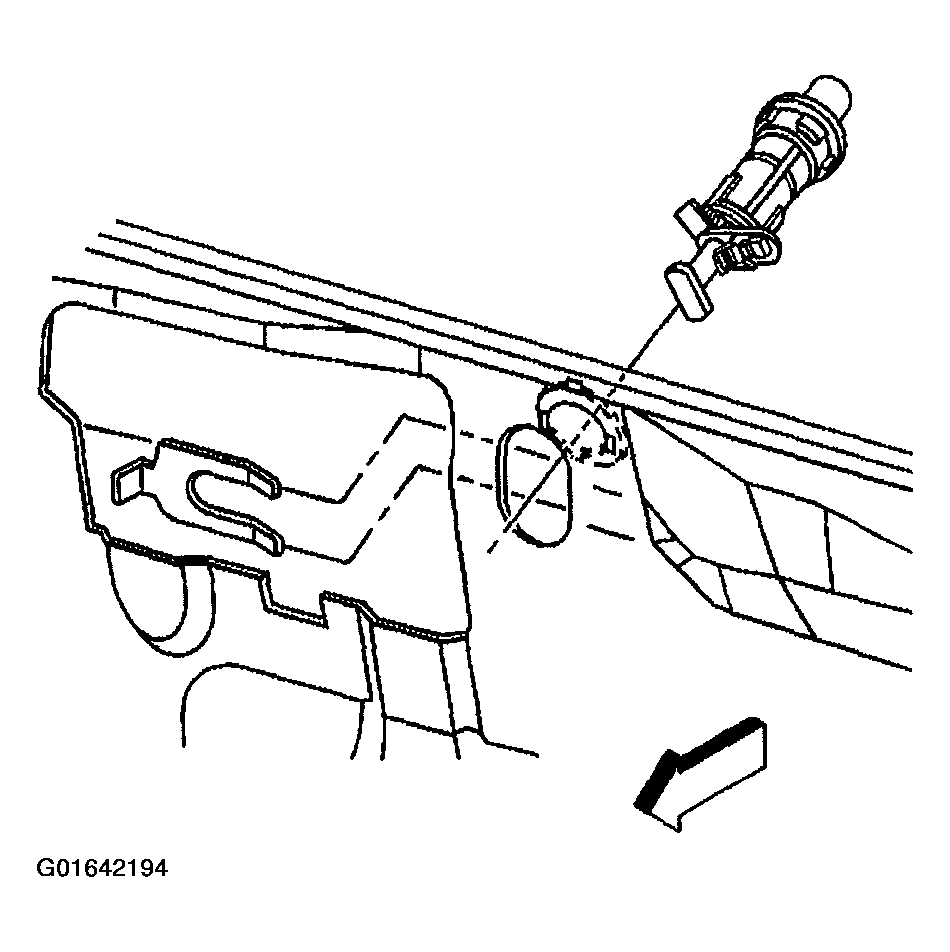

Fig 2: Lock Cylinder From Liftgate

Courtesy of GENERAL MOTORS CORP.
