Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

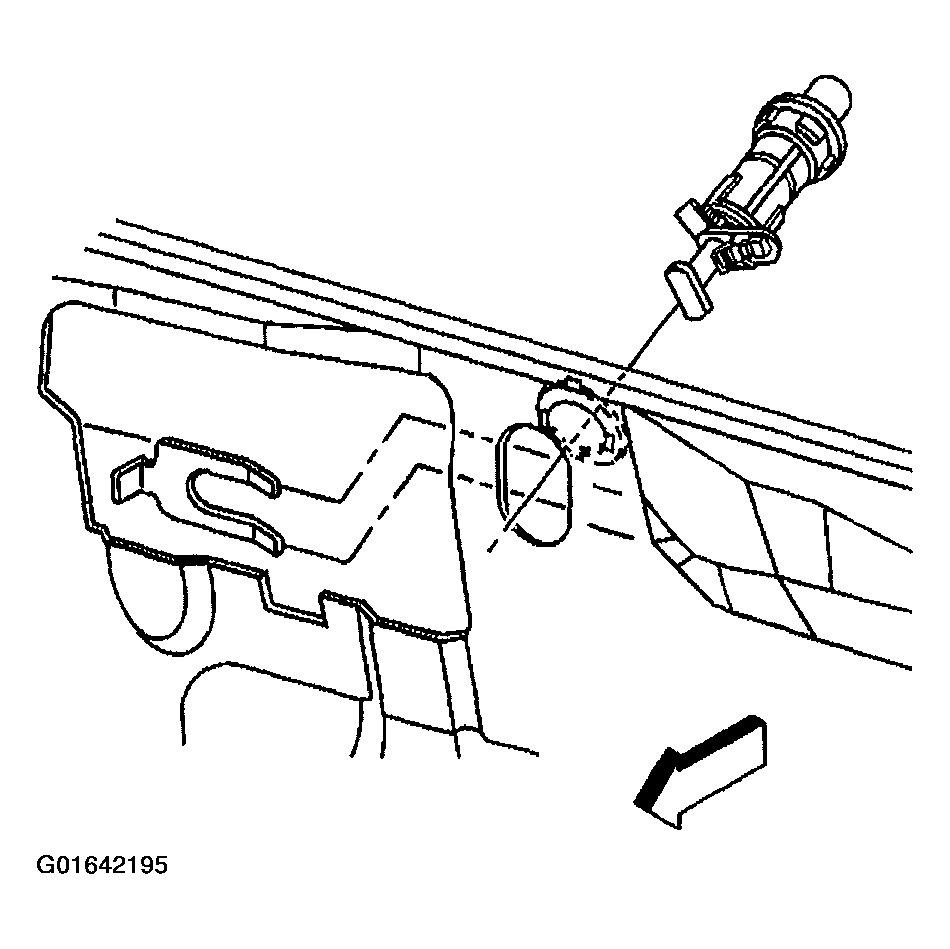

Install the lock cylinder to the liftgate.
Install the C clip to the groove in the lock cylinder.

Fig 1: Lock Cylinder To Liftgate

Courtesy of GENERAL MOTORS CORP.

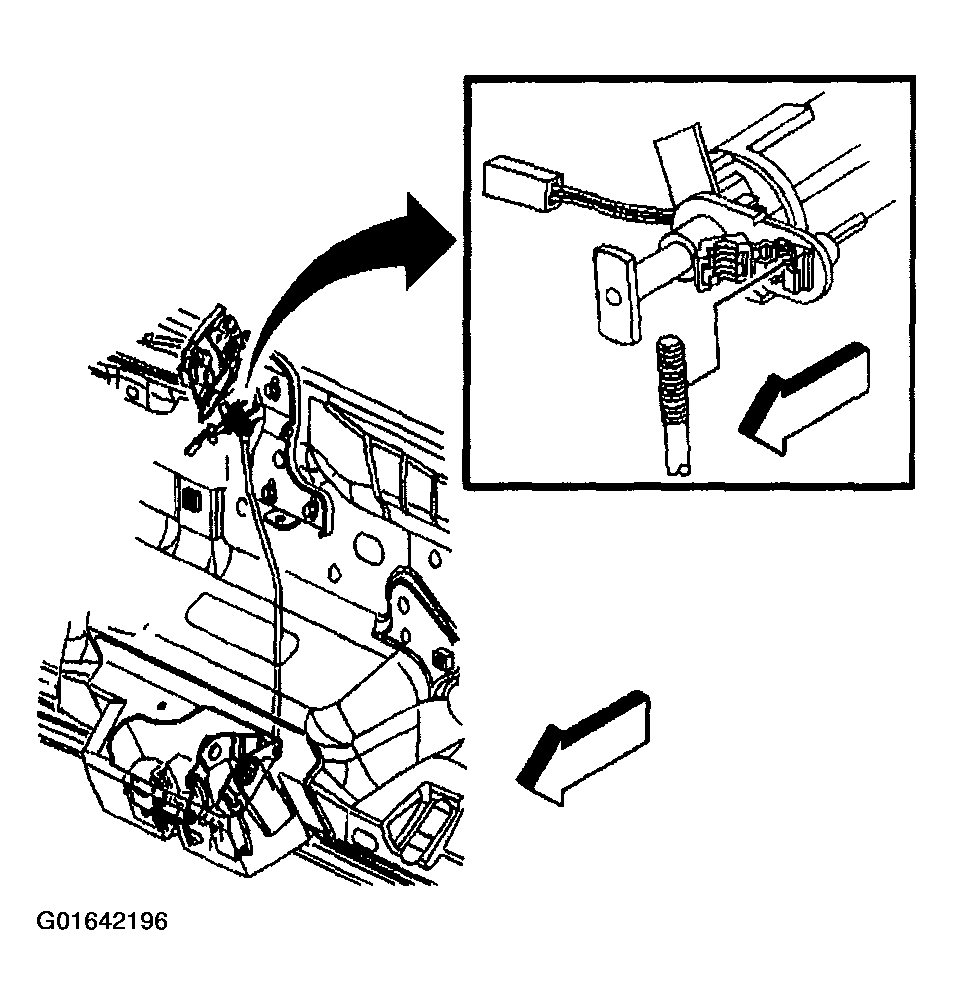

Install the lock rod to the lock cylinder.

Fig 2: Lock Rod To Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Install the trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
