Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the rubber bumper (1) to the latch.

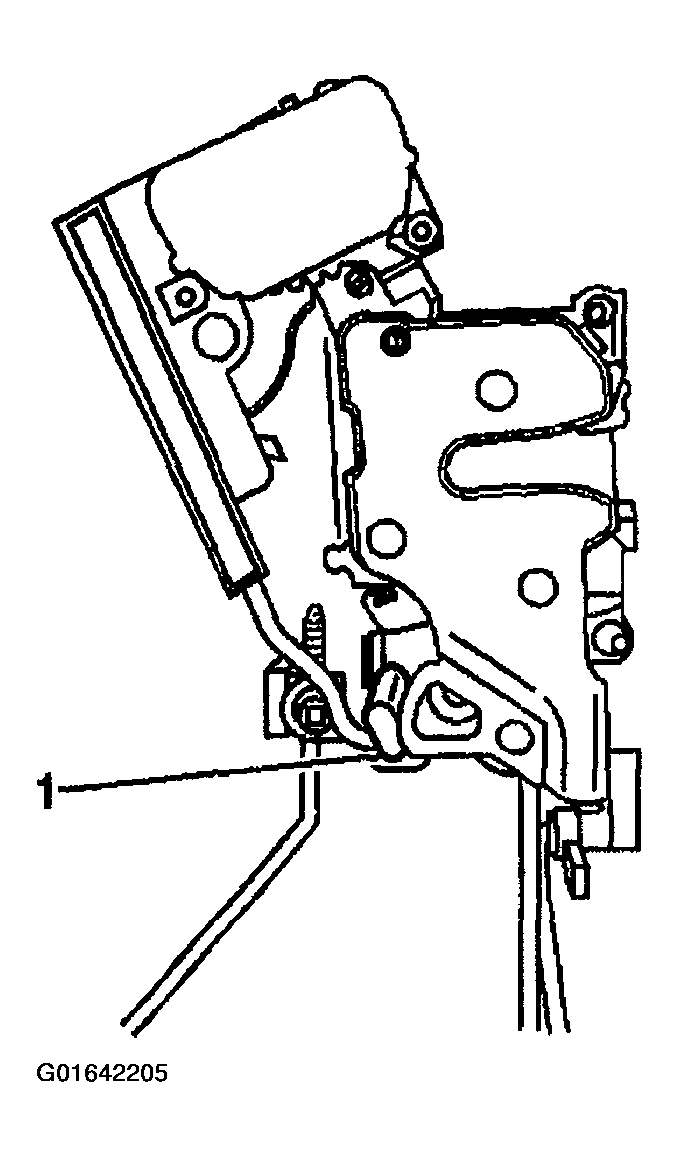

Fig 1: Rubber Bumper To Latch

Courtesy of GENERAL MOTORS CORP.

Rotate the actuator toward the latch in order to fully engage the rubber bumper into the latch.
IMPORTANT: Ensure that the first tooth of the gear on the actuator and the first tooth of the gear on the latch align and interlock properly.
Install the actuator to the top of the latch.

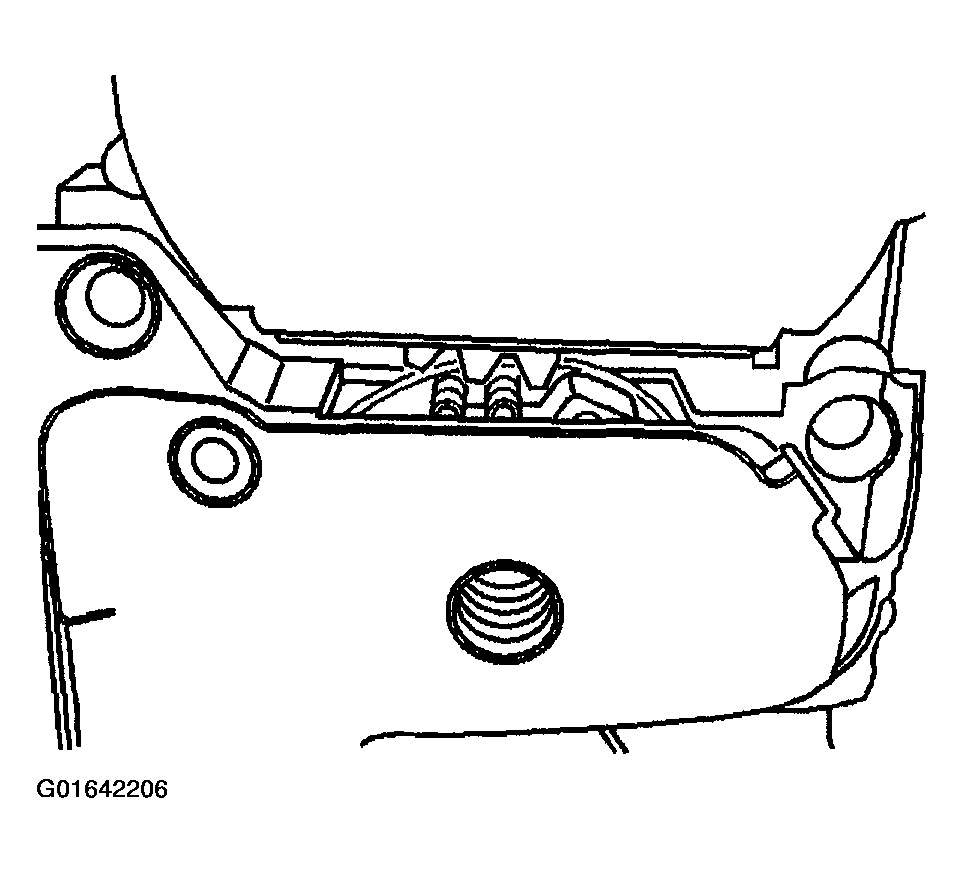

Fig 2: Actuator To Top Of Latch
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the 2 screws (2) that retain the lock actuator (1) to the latch assembly.
Tighten

Tighten the screws to 0.75 N.m (6 lb in).

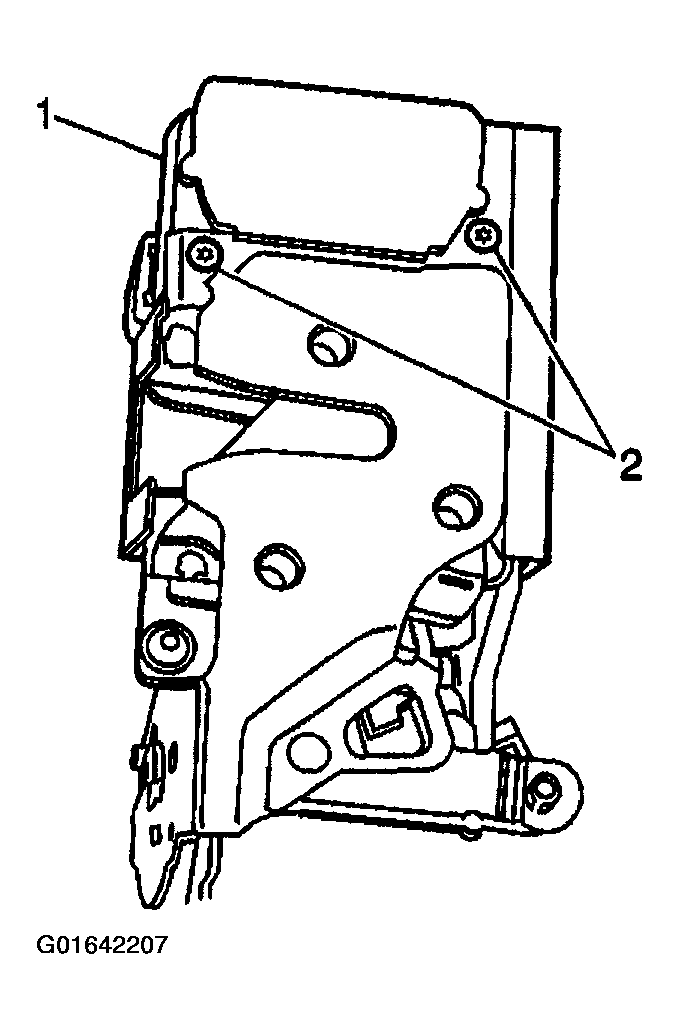

Fig 3: Screws Retaining Lock Actuator To Latch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the latch assembly to the liftgate. Refer to LATCH REPLACEMENT - LIFT GATE .
