Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR WINDOW in Interior Trim.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  3. Disconnect the electrical connectors (3) from the module as necessary.

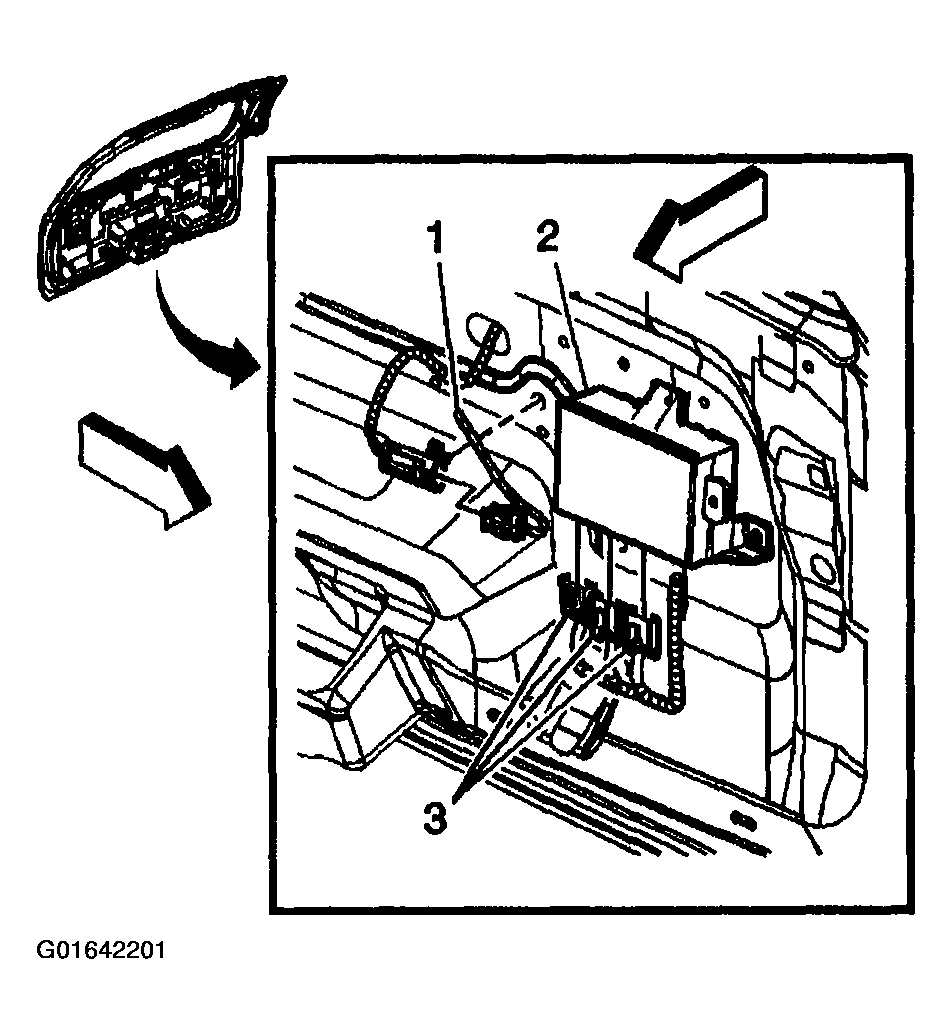

    4. Fig 1: Module From Liftgate
    G01642201Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts that retain the module to the liftgate.
  5. Remove the module from the liftgate.
