Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Remove the screws that retain the liftgate applique.
  3. Close the liftgate window.
    IMPORTANT: Do not open the liftgate with the liftgate glass open.
  4. Close the liftgate window and open the liftgate.
  5. Remove the liftgate applique from the liftgate pinch-weld flange.

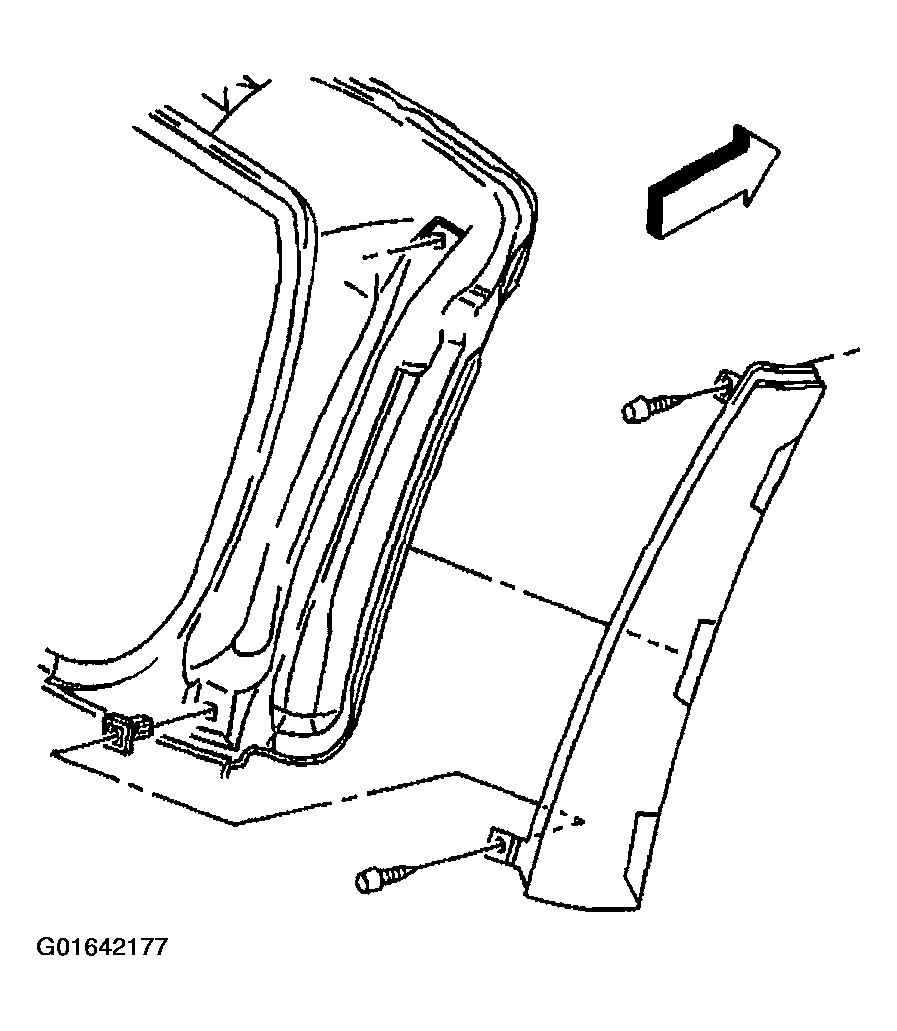

    6. Fig 1: Screws Retaining Liftgate Applique
    G01642177Courtesy of GENERAL MOTORS CORP.
