Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license pocket lamps. Refer to LICENSE LAMP REPLACEMENT in Lighting Systems.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  3. Disconnect the bellcrank rod from the outside door release handle.

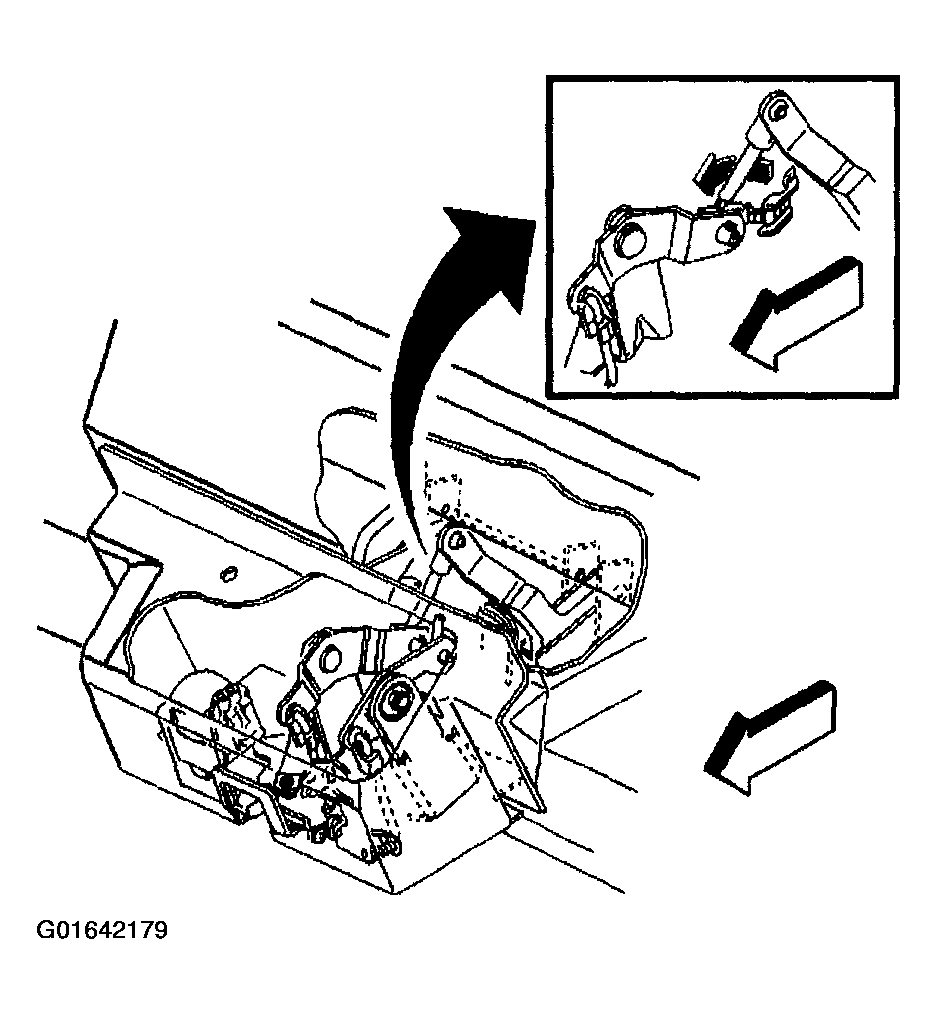

    4. Fig 1: Bellcrank Rod From Outside Door Release Handle
    G01642179Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that retain the license pocket to the liftgate.
  5. Remove the license pocket from the liftgate.

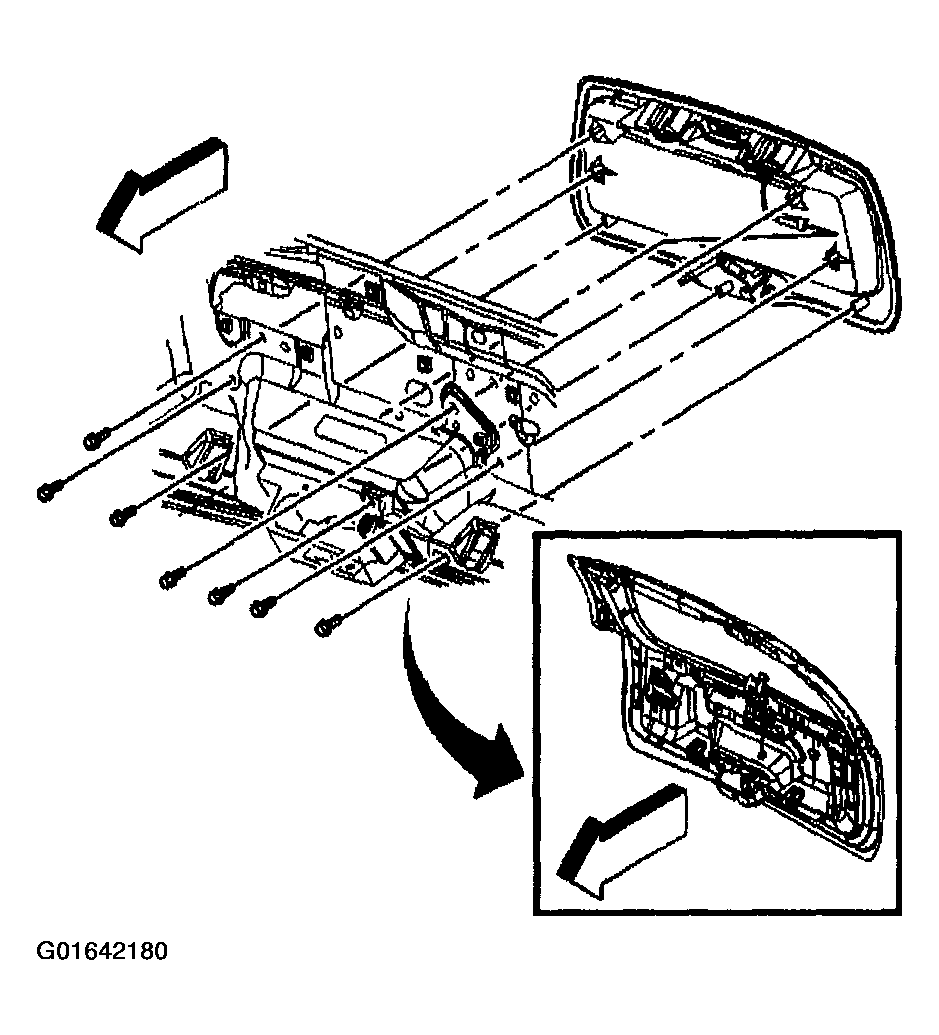

    6. Fig 2: Screws Retaining License Pocket To Liftgate
    G01642180Courtesy of GENERAL MOTORS CORP.
