Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR WINDOW in Interior Trim.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  3. Disconnect the outside handle rod from the bellcrank.

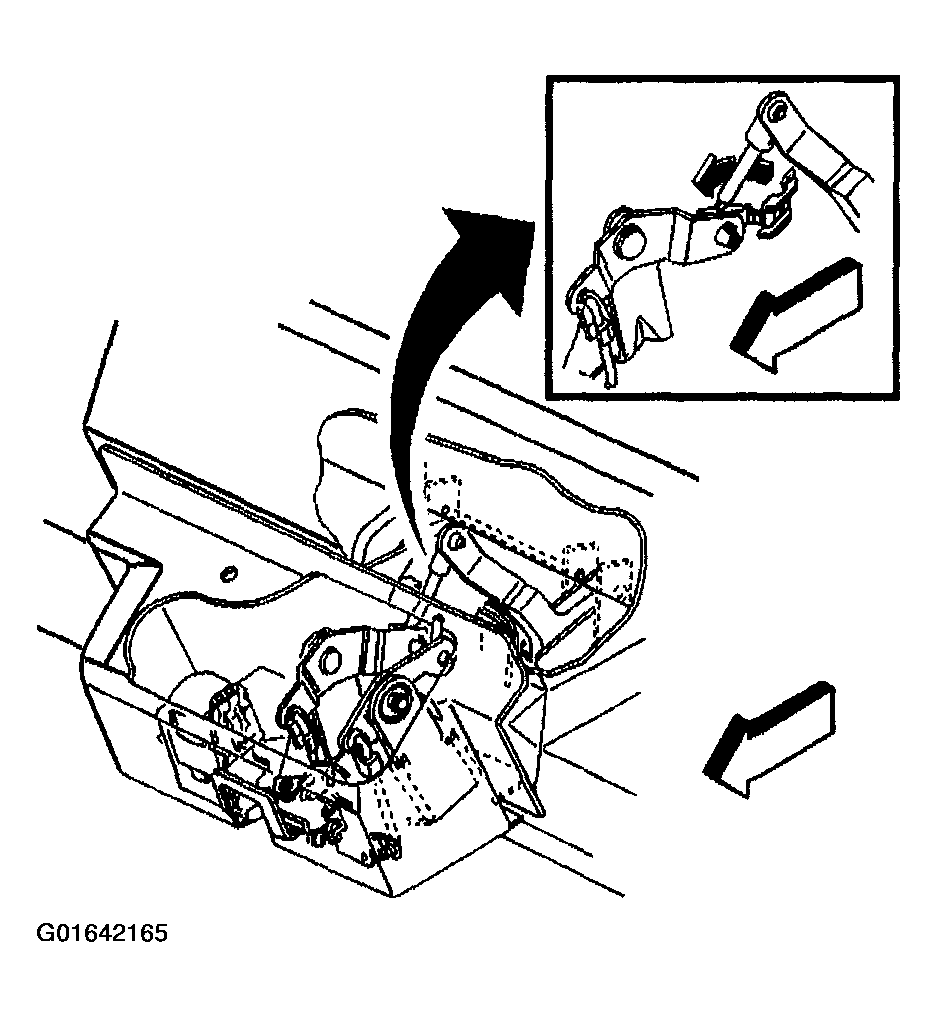

    4. Fig 1: Outside Handle Rod From Bellcrank
    G01642165Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the bellcrank rod from the latch/lock assembly.
  5. Remove the screws that retain the bellcrank to the latch/lock.
  6. Remove the bellcrank from the latch/lock.

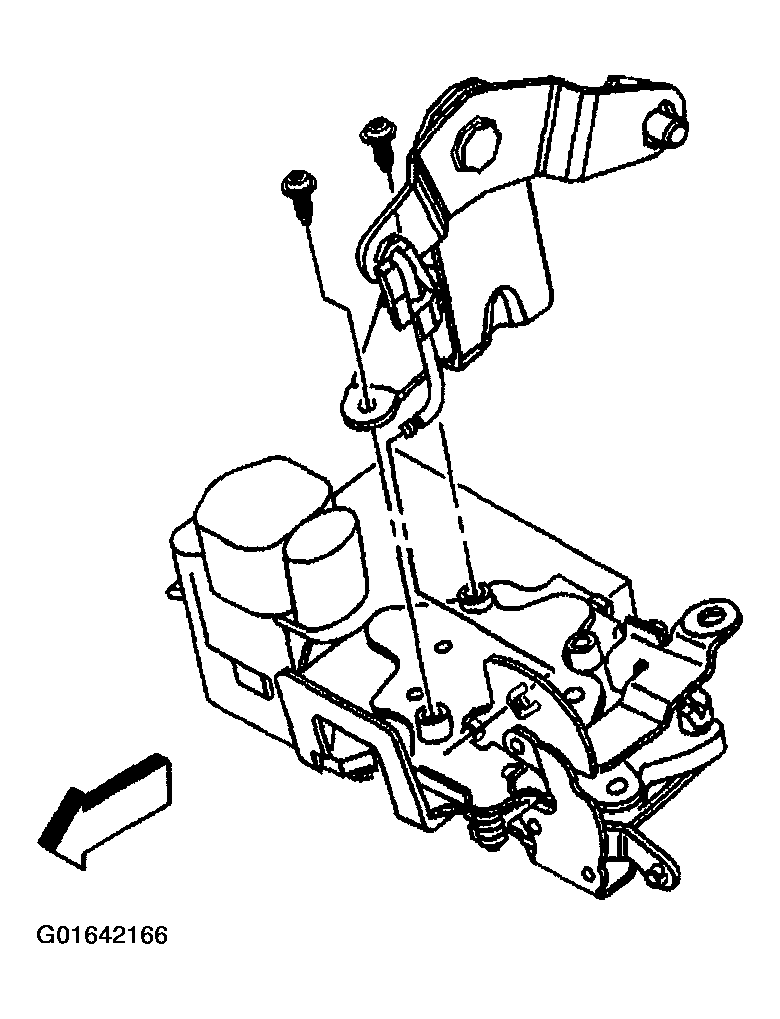

    7. Fig 2: Screws Retaining Bellcrank To Latch/Lock
    G01642166Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the electrical connector from the latch assembly.
  8. Disconnect the lock cylinder bellcrank rod (1) from the latch assembly.

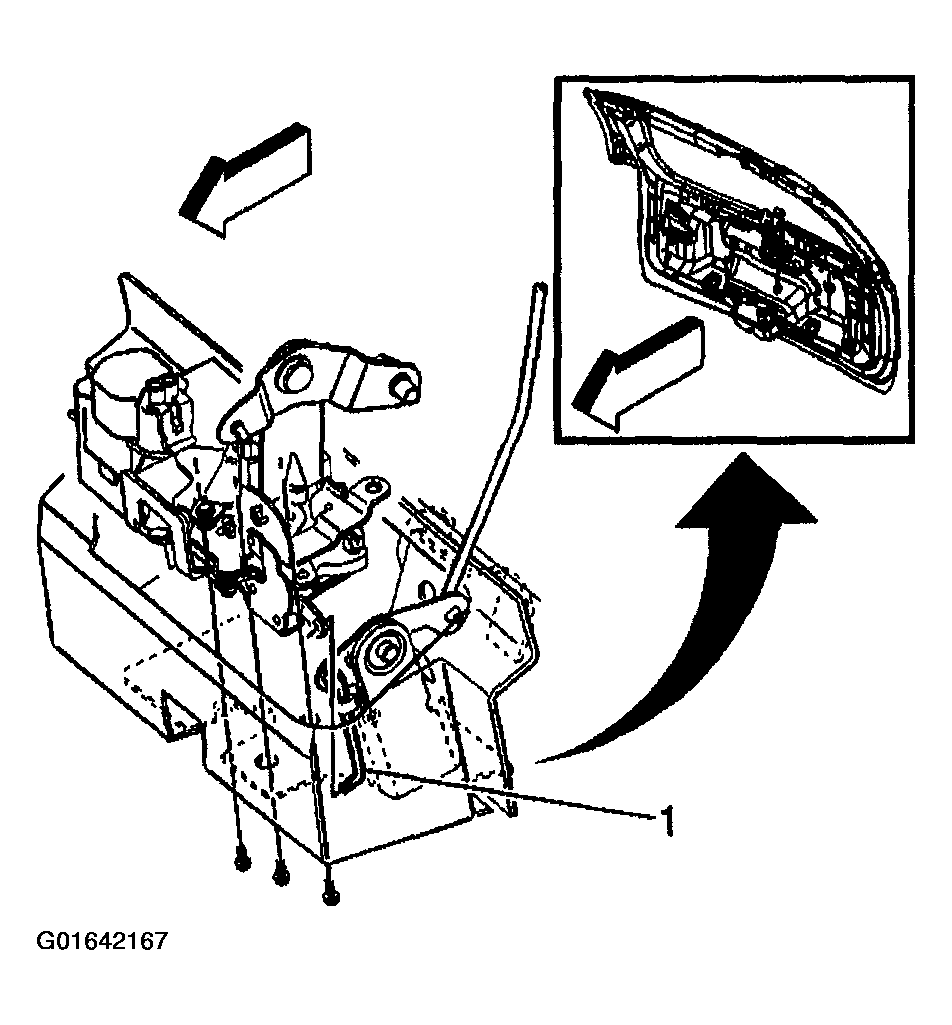

    9. Fig 3: Lock Cylinder Bellcrank Rod From Latch Assembly
    G01642167Courtesy of GENERAL MOTORS CORP.
  9. Remove the screws that retain the latch/lock assembly to the liftgate.
  10. Remove the latch/lock assembly from the liftgate.
