Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch/lock assembly to the liftgate.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the screws that retain the latch/lock assembly to the liftgate.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  3. Connect the lock cylinder bellcrank rod (1) to the latch/lock assembly.

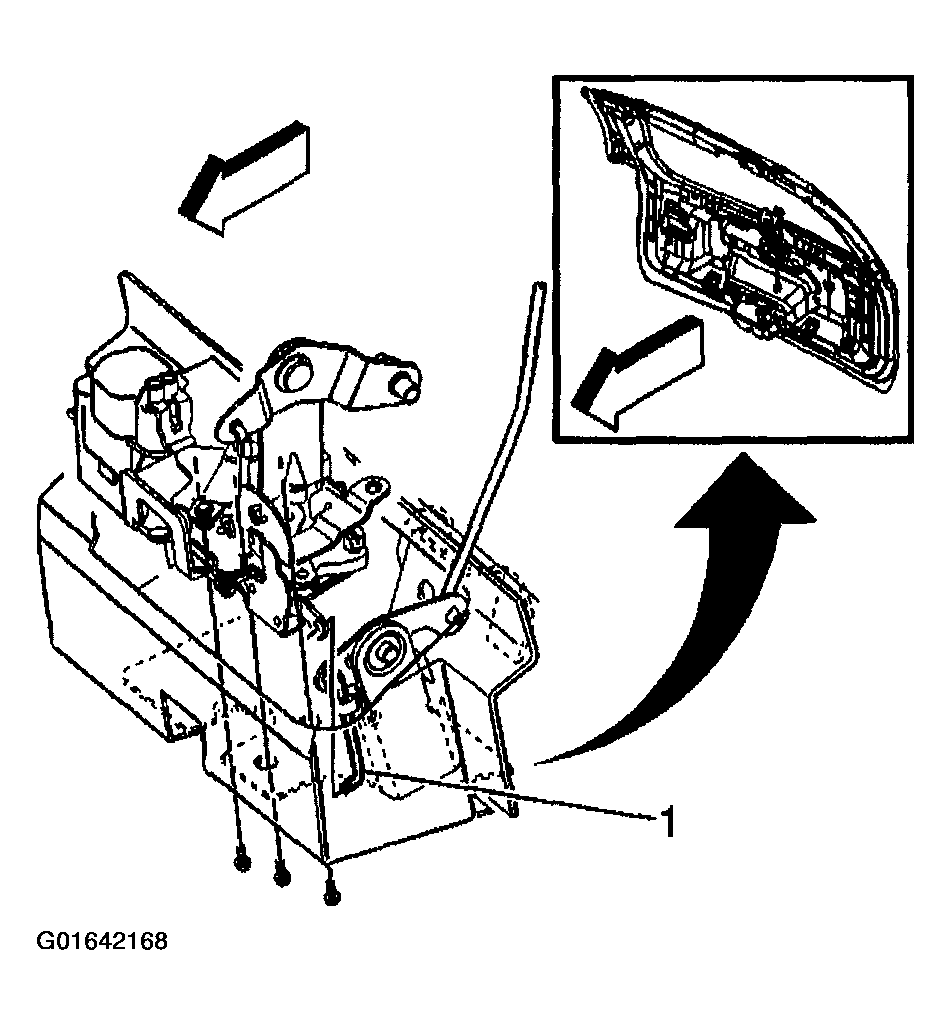

    4. Fig 1: Lock Cylinder Bellcrank Rod To Latch/Lock Assembly
    G01642168Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the latch/lock assembly.
  5. Position the bellcrank to the latch/lock assembly.
  6. Install the screws that retain the bellcrank to the latch/lock assembly.

    Tighten

    Tighten the screws to 0.7 N.m (6 lb in).

  7. Connect the bellcrank rod to the latch/lock assembly.

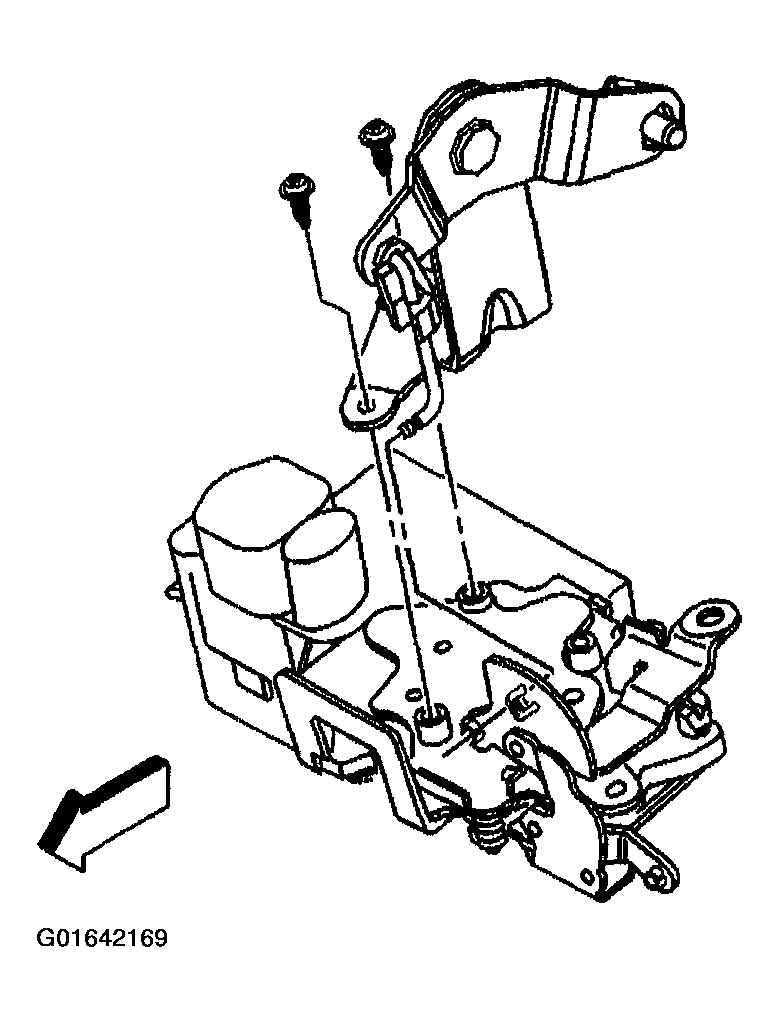

    8. Fig 2: Screws Retaining Bellcrank To Latch/Lock Assembly
    G01642169Courtesy of GENERAL MOTORS CORP.
  8. Connect the outside handle rod to the bellcrank.

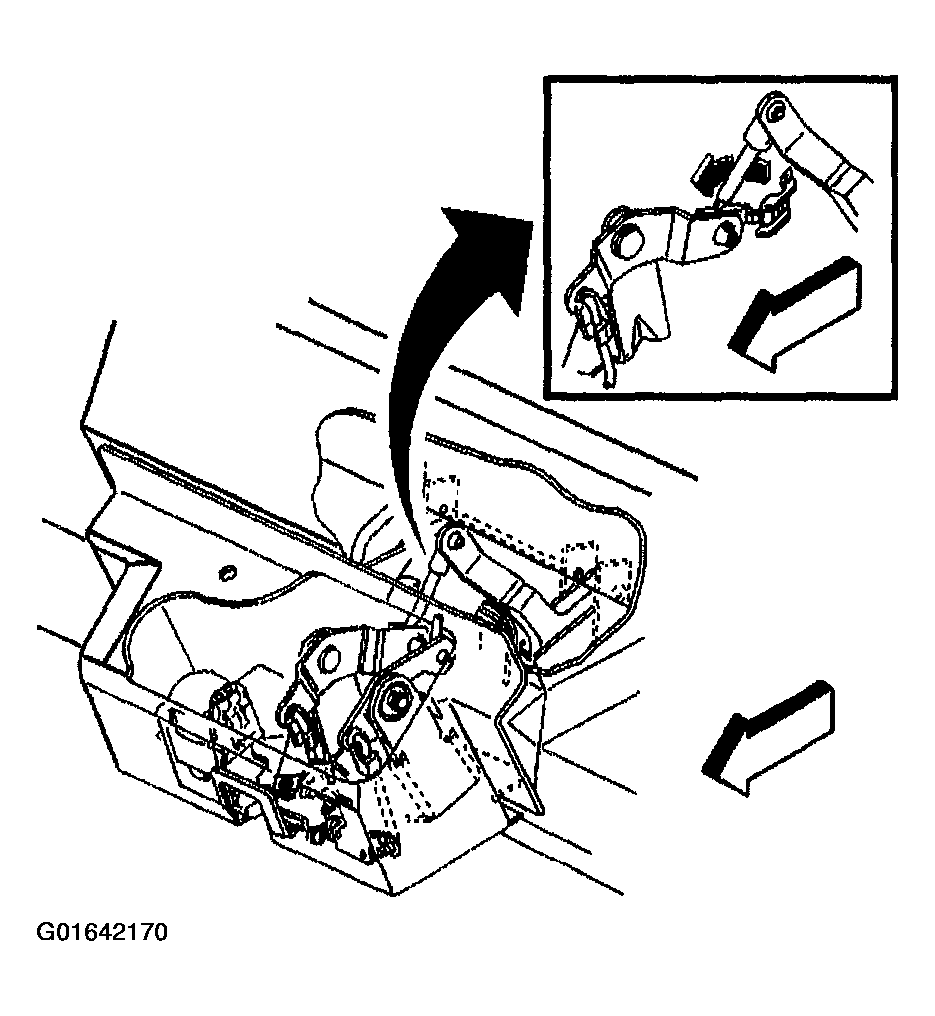

    9. Fig 3: Outside Handle Rod To Bellcrank
    G01642170Courtesy of GENERAL MOTORS CORP.
  9. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  10. Install the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR WINDOW in Interior Trim.
