Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure the rear edge of the body side window with 5 cm (2 in) masking tape placed between the window outside edge and the outer quarter panel. This will prevent the window from moving during the procedure.
  2. Remove the rear interior trim panel covering the actuator. Refer to INTERIOR TRIM in Interior Trim.
  3. Disconnect the electrical connection (1).

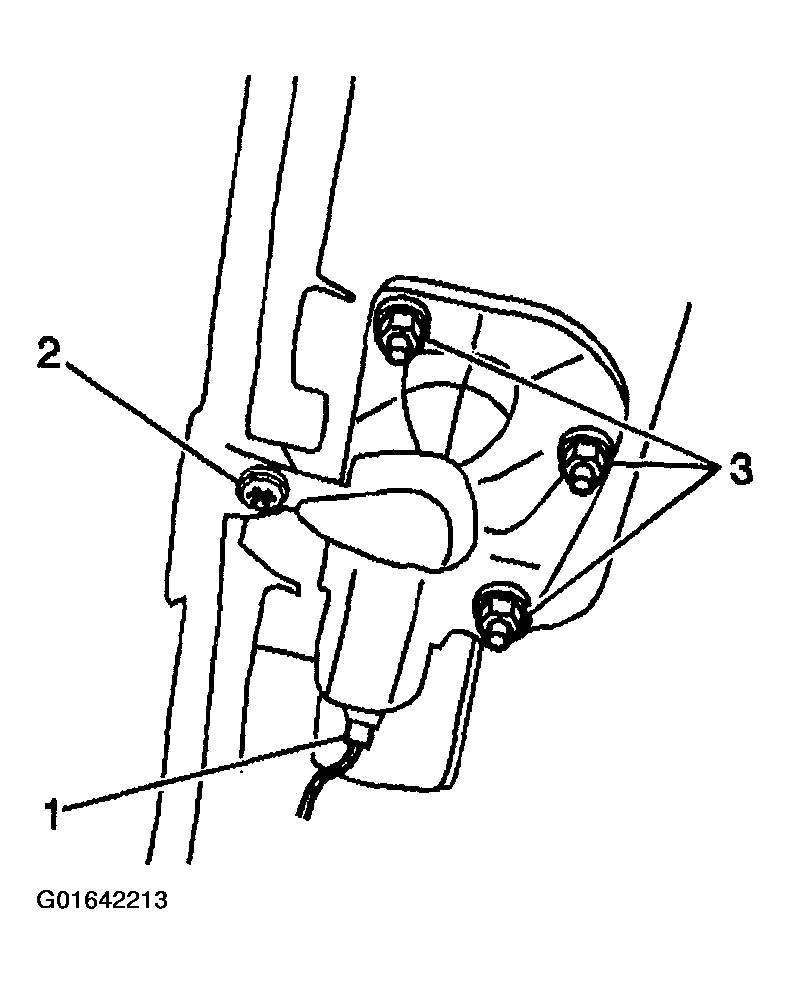

    4. Fig 1: Rear Quarter Window Actuator
    G01642213Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws connecting the window mount to the actuator arm (2).
  5. Remove the actuator retaining nuts (3).
  6. Remove the actuator.
