Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Position the actuator over the mounting studs and install the retaining nuts (3).

    Tighten

    Tighten the nuts (3) to 7 N.m (2 lb in).

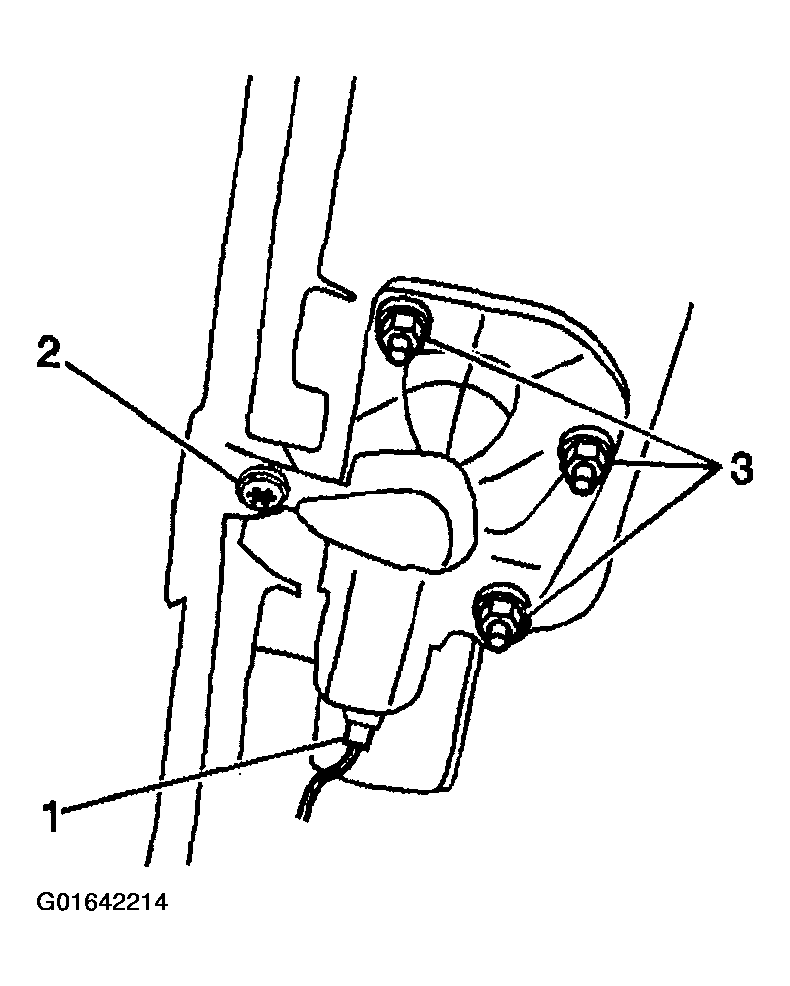

    2. Fig 1: Rear Quarter Window Actuator
    G01642214Courtesy of GENERAL MOTORS CORP.
  2. Install the screw connecting the window mount to the actuator arm (2).

    Tighten

    Tighten the screw to 5 N.m (44 lb in).

  3. Connect the electrical connection (1).
  4. Install interior trim panel. Refer to INTERIOR TRIM in Interior Trim.
  5. Remove the masking tape from the side window edge.
