End Gate Window Release Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

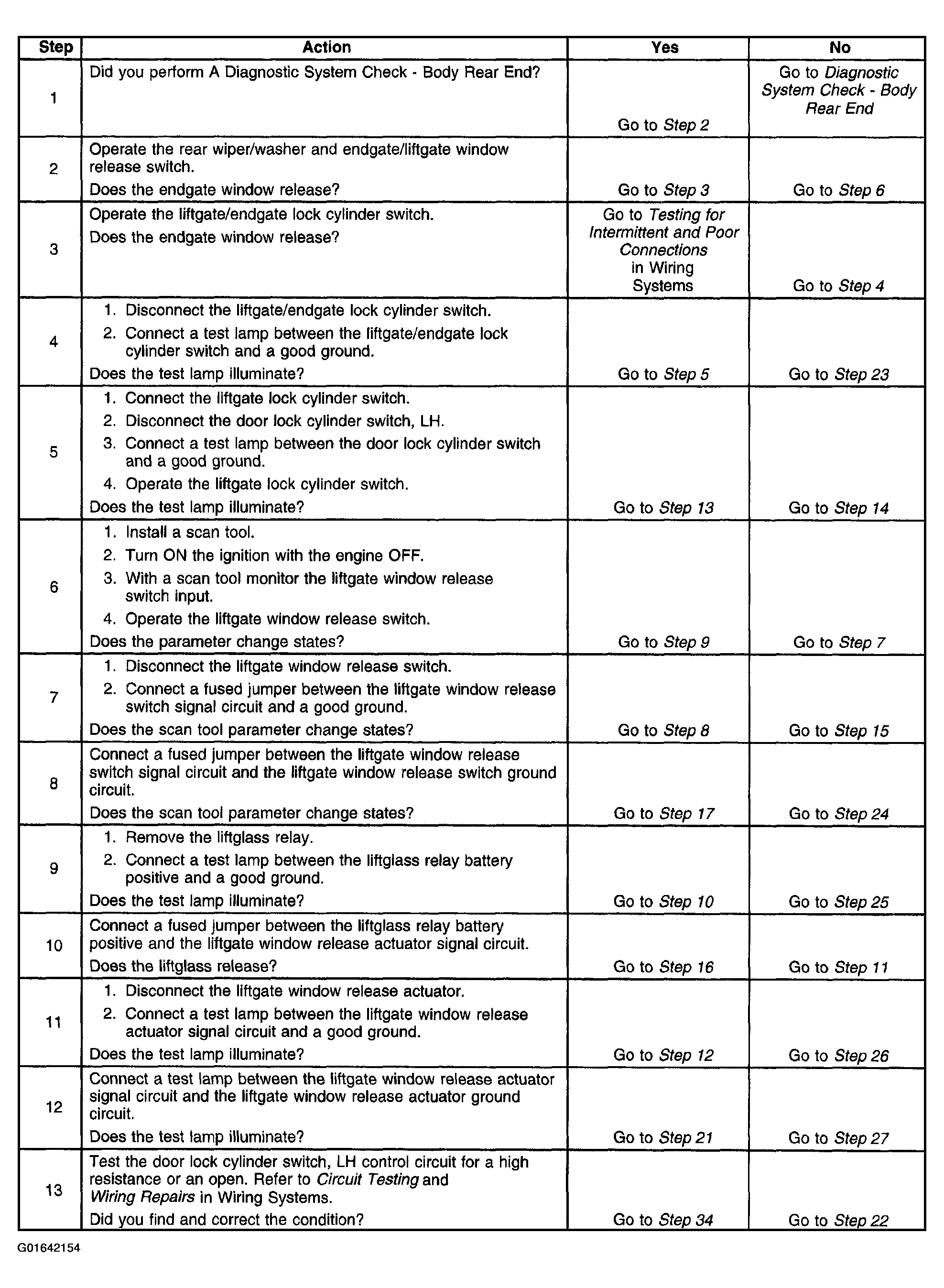

Fig 1: End Gate Window Release Inoperative (Steps 1 To 13)

Courtesy of GENERAL MOTORS CORP.

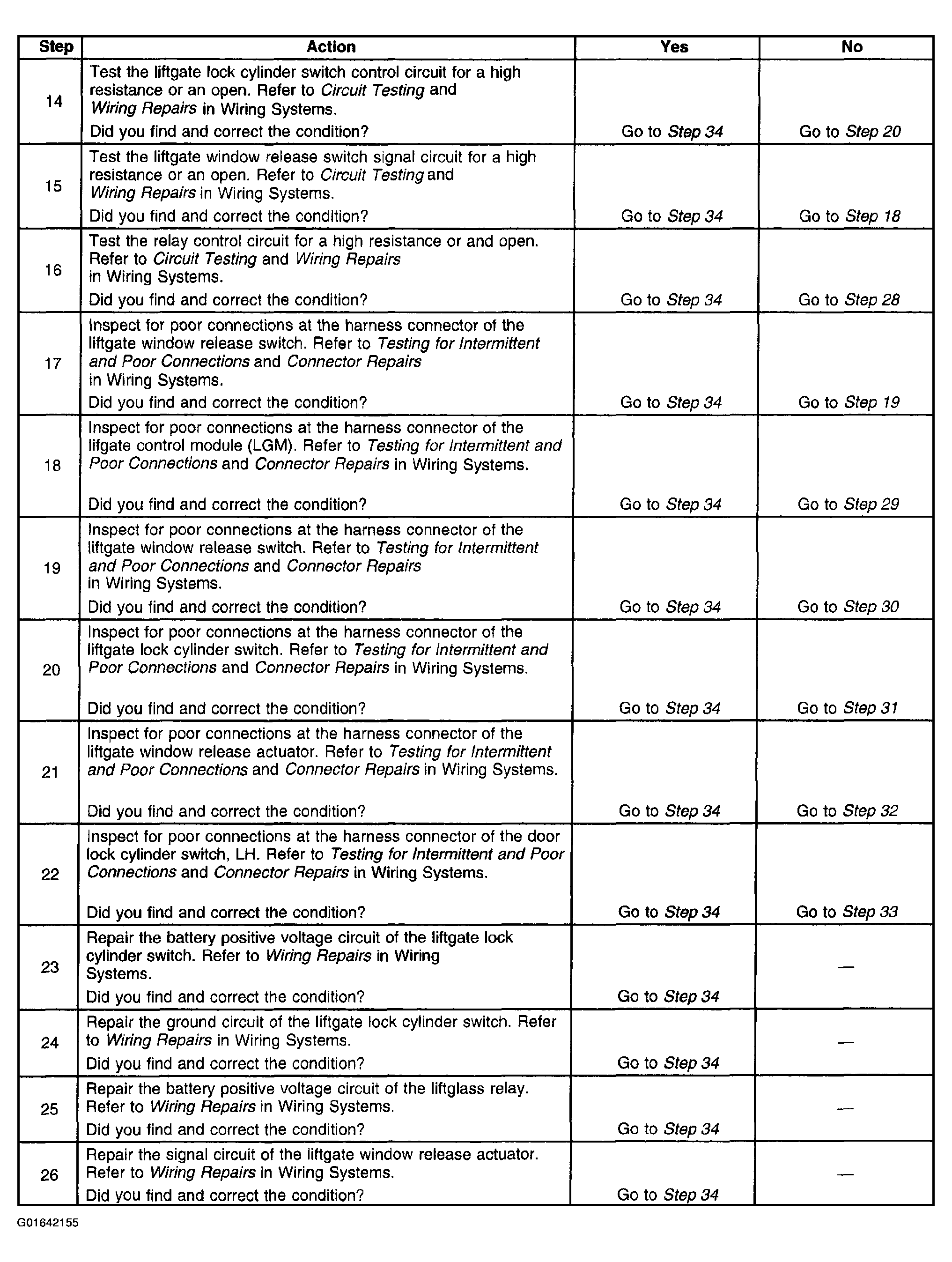

Fig 2: End Gate Window Release Inoperative (Steps 14 To 26)

Courtesy of GENERAL MOTORS CORP.

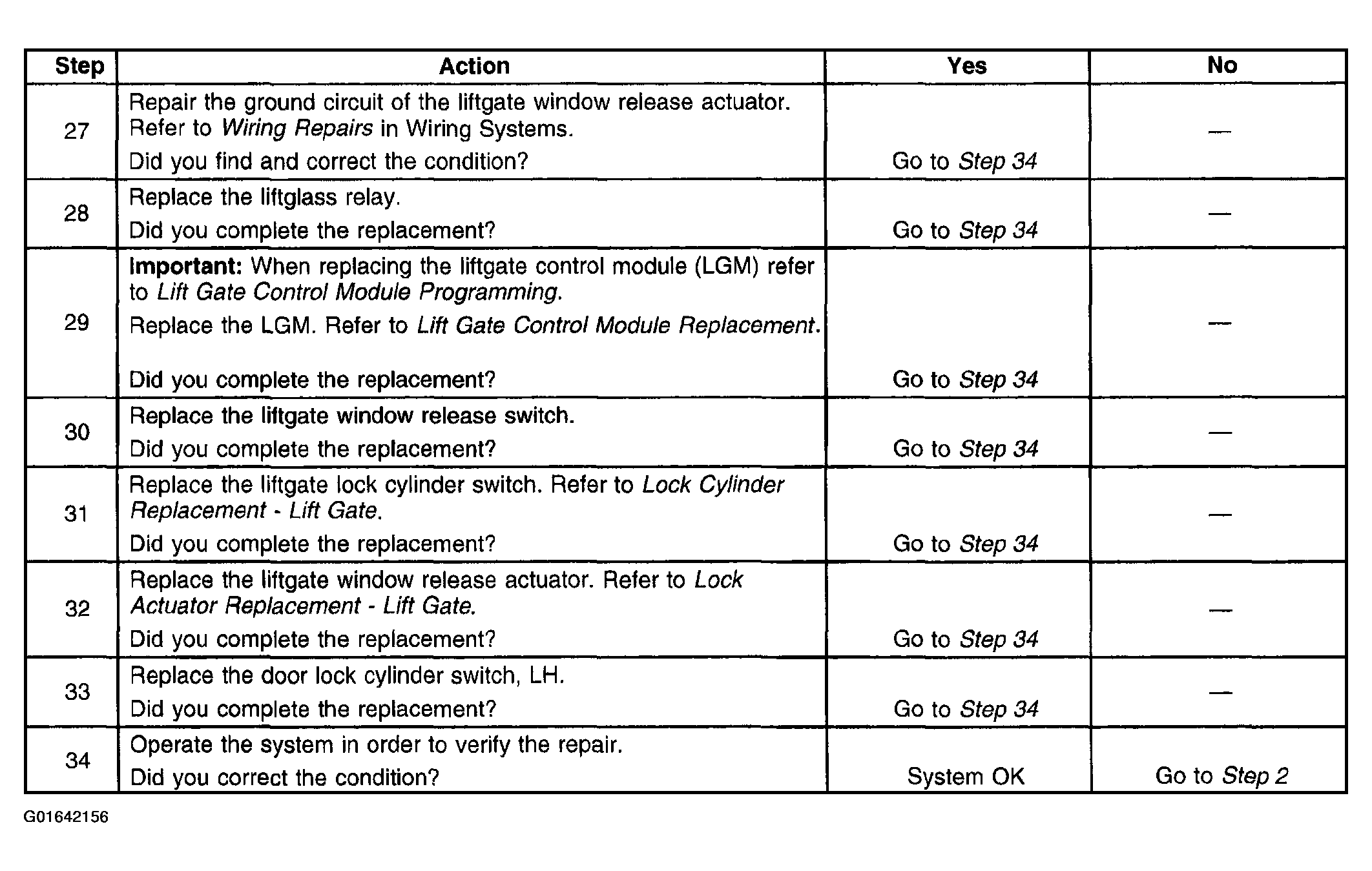

Fig 3: End Gate Window Release Inoperative (Steps 27 To 34)

Courtesy of GENERAL MOTORS CORP.
