Liftglass Ajar Switch

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

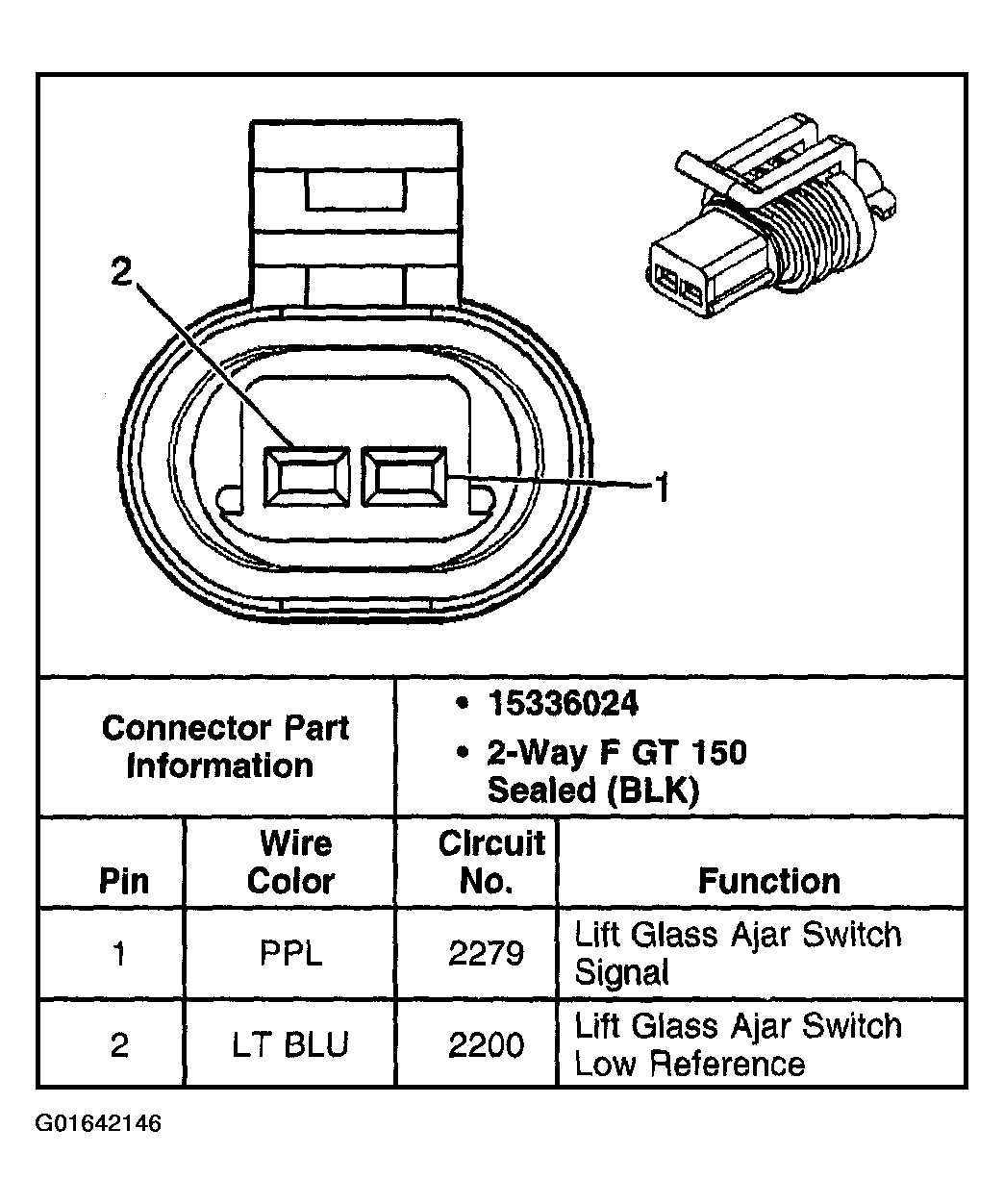

Fig 1: Liftglass Ajar Switch Connector End View
G01642146Courtesy of GENERAL MOTORS CORP.
