Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel to the vehicle.

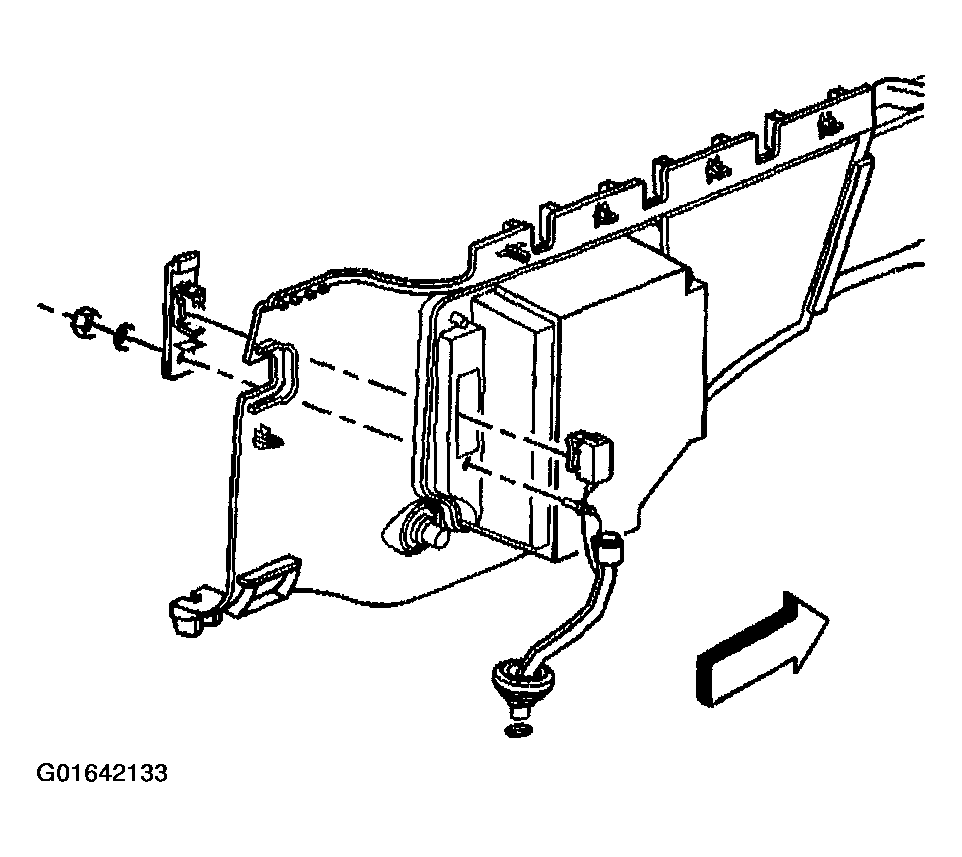

    2. Fig 1: Trim Panel To Vehicle - Right Rear Quarter (TrailBlazer, Envoy & Bravada)
    G01642133Courtesy of GENERAL MOTORS CORP.
  2. Install the 12-volt power supply. Refer to CIGAR LIGHTER OR 12-VOLT POWER SUPPLY REPLACEMENT in Instrument Panel, Gages and Console.
  3. Connect the 12-volt power supply electrical connector.
  4. Install the inflator bezel to the trim panel.
  5. Feed the auxiliary air outlet through the hole in the inflator bezel.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  6. Install the auxiliary air outlet washer and retaining nut.

    Tighten

    Tighten the nut to 2 N-m (18 lb in).

  7. Install the inflator switch to the inflator bezel.
  8. Position the seat belt over the top of the trim panel, ensuring that the buckle is not behind the trim panel.
  9. Align the locating tabs on the trim panel to the holes in the body.
  10. Seat the clips that retain the trim panel to the body.
  11. Install the seat belt lower anchor.

    Tighten

    Tighten the anchor bolt to 70.0 N-m (52 lb ft).

    12. Fig 2: Seat Belt Lower Anchor - Right Rear Quarter (TrailBlazer, Envoy & Bravada)
    G01642134Courtesy of GENERAL MOTORS CORP.
  12. Install the right rear door sill panel. Refer to DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER, ENVOY & BRAVADA)  or DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER EXT & ENVOY XL)  .
  13. Install the liftgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE  .
  14. Install the trim panel-rear quarter upper. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (TRAILBLAZER, ENVOY & BRAVADA)  .
