Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cargo shelf.
  2. Tumble the third row seats to the cargo position.

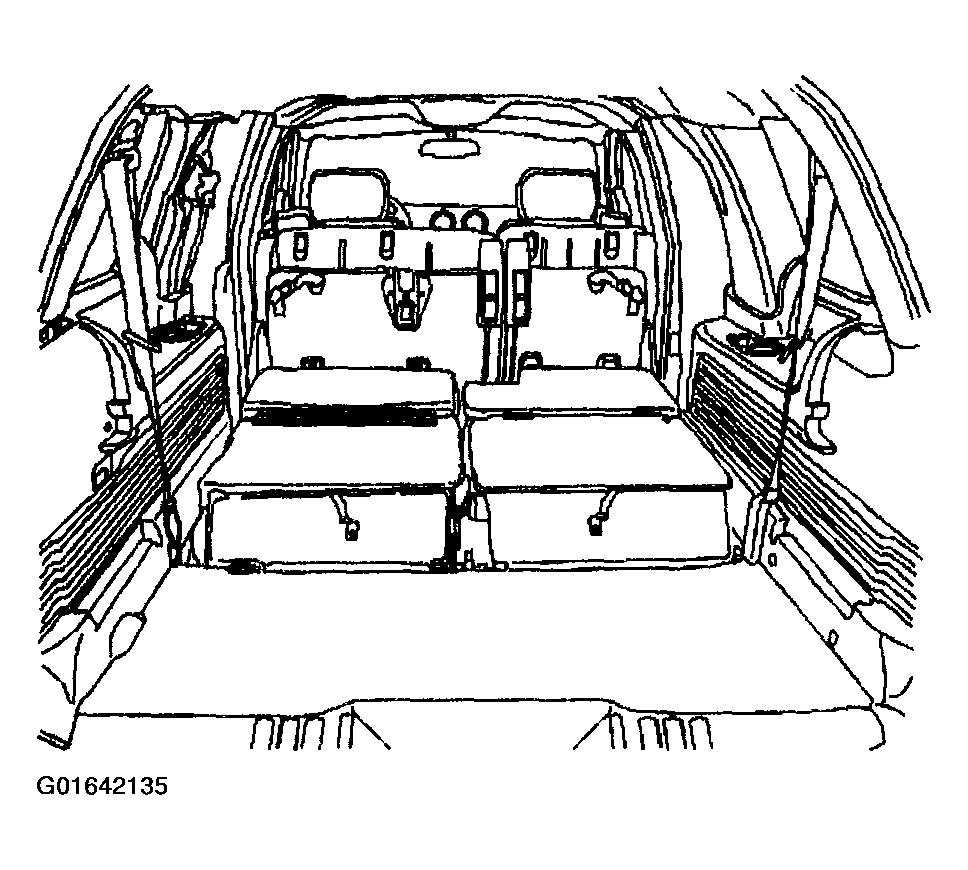

    3. Fig 1: Third Row Seats To Cargo Position - Right Rear Quarter (TrailBlazer EXT & Envoy XL)
    G01642135Courtesy of GENERAL MOTORS CORP.
  3. Remove the right body side window rear garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE WINDOW - REAR (TRAILBLAZER EXT & ENVOY XL)  .
  4. Remove the right body side window forward garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE WINDOW - FRONT (TRAILBLAZER EXT & ENVOY XL)  .
  5. Remove the liftgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE  .
  6. Remove the right rear door sill panel. Refer to DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER, ENVOY & BRAVADA)  or DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER EXT & ENVOY XL)  .
  7. Remove the lower seat belt anchor bolt.
  8. Release the five screws that retain the rear quarter trim panel to the body.

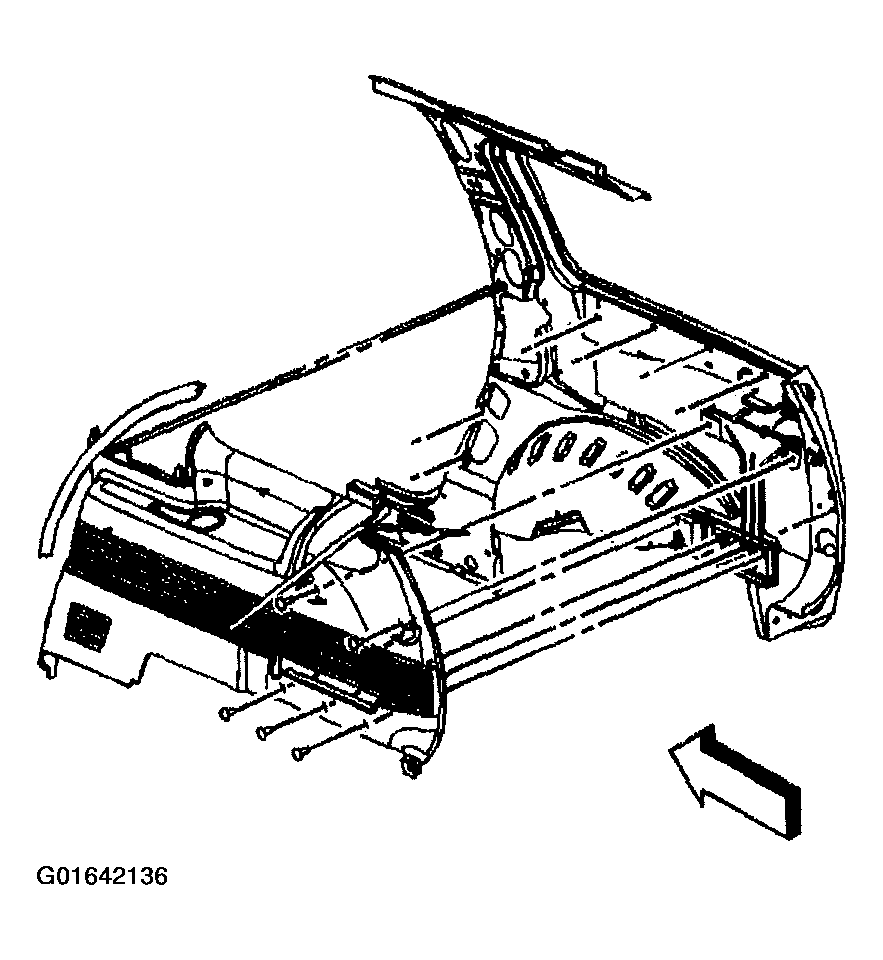

    9. Fig 2: Screws Retaining Rear Quarter Trim Panel To Body - Right Rear Quarter (TrailBlazer EXT & Envoy XL)
    G01642136Courtesy of GENERAL MOTORS CORP.
  9. Remove the rear quarter trim panel from the vehicle.
