Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cargo shelf.
Tumble the third row seats to the cargo position.

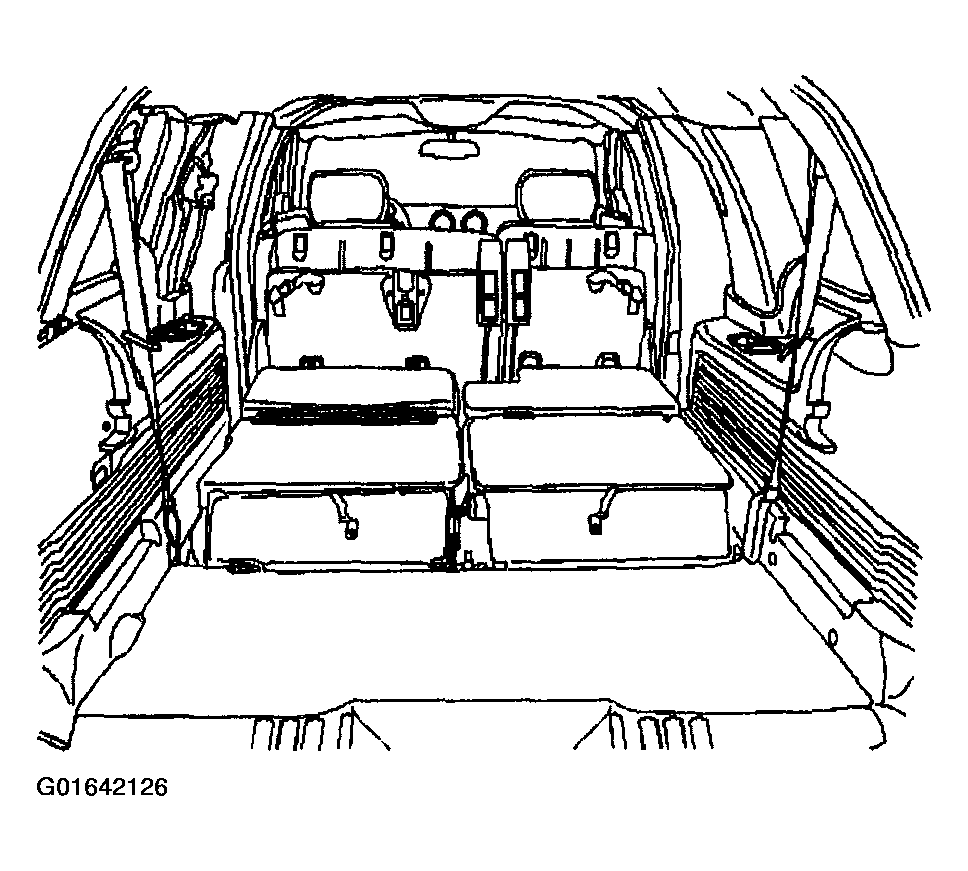

Fig 1: Third Row Seats To Cargo Position - Left Rear Quarter (TrailBlazer EXT & Envoy XL)

Courtesy of GENERAL MOTORS CORP.

Remove the left body side window rear garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE WINDOW - REAR (TRAILBLAZER EXT & ENVOY XL) .
Remove the left body side window forward garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE WINDOW - FRONT (TRAILBLAZER EXT & ENVOY XL) .
Remove the liftgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE .
Remove the left rear door sill panel. Refer to DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER, ENVOY & BRAVADA) or DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER EXT & ENVOY XL) .
Remove the lower seat belt anchor bolt.
Remove the auxiliary power outlet from the trim panel. Refer to CIGAR LIGHTER OR 12-VOLT POWER SUPPLY REPLACEMENT .

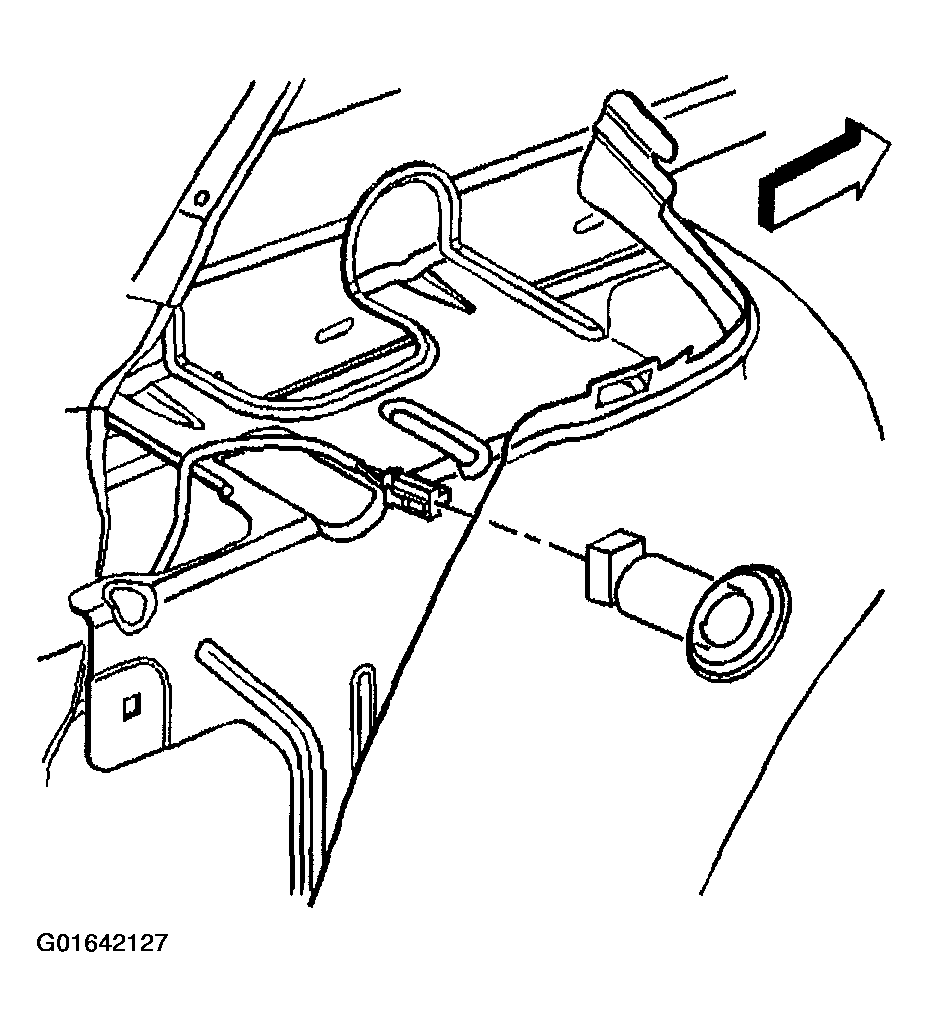

Fig 2: Auxiliary Power Outlet From Trim Panel - Left Rear Quarter (TrailBlazer EXT & Envoy XL)

Courtesy of GENERAL MOTORS CORP.

Release the five screws that retain the rear quarter trim panel to the body.
Remove the rear quarter trim panel from the vehicle.

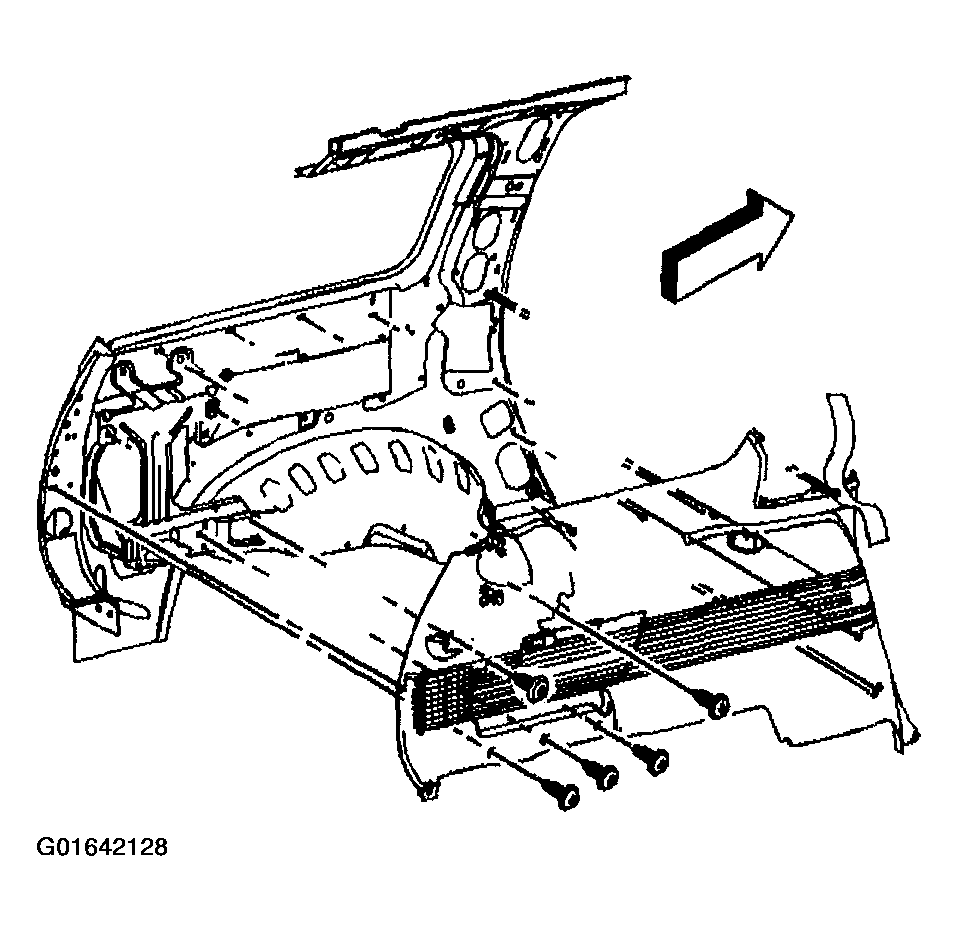

Fig 3: Five Screws Retaining Rear Quarter Trim Panel To Body - Left Rear Quarter (TrailBlazer EXT & Envoy XL)

Courtesy of GENERAL MOTORS CORP.
