Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  .
  2. Release the front assist handle from the headliner. Refer to ASSIST HANDLE REPLACEMENT  .
  3. Recline the bucket seat and release the upper portion of the center pillar trim panel. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR  .
  4. Open and rotate the sunshade parallel to the side window.
  5. Insert a small tool into the bezel access hole (1).
    IMPORTANT: Midway through the rotation cycle, the tool will move further into the access hole.
    6. Fig 1: Bezel Access Hole
    G01642101Courtesy of GENERAL MOTORS CORP.
  6. Push upward on the tool while rotating the sunshade parallel to the windshield. The sunshade pivot arm bezel should appear to be recessed into the bezel.
    IMPORTANT: Ensure the pivot arm is recessed into the bezel before removing the sunshade from the headliner.
  7. Apply outboard pressure to the sunshade while the sunshade is parallel to the windshield.

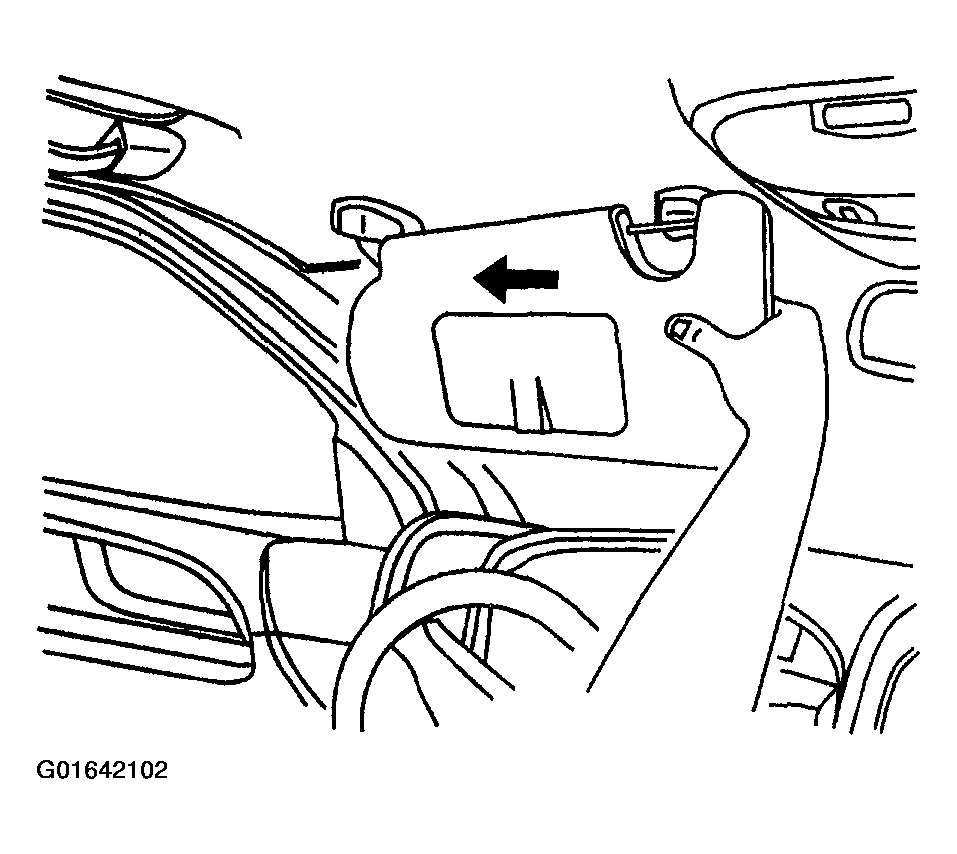

    8. Fig 2: Outboard Pressure To Sunshade
    G01642102Courtesy of GENERAL MOTORS CORP.
  8. Pull the sunshade downward while maintaining outboard pressure to the sunshade. You will notice a separation between the headliner and the sunshade bezel.
  9. In order to remove the sunshade from the headliner, carefully grab the headliner at the windshield pillar area and apply downward pressure while gently rocking the sunshade up and down.

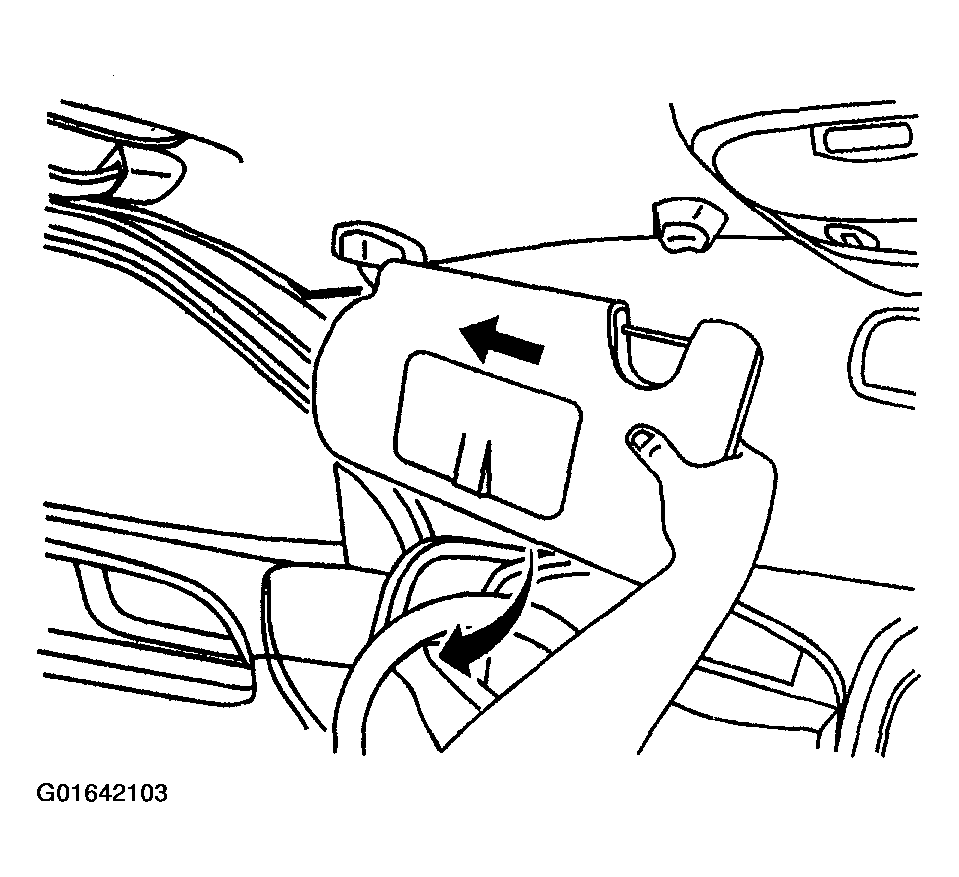

    10. Fig 3: Sunshade Downward
    G01642103Courtesy of GENERAL MOTORS CORP.
  10. Remove the inboard retainer screw.
  11. Remove the inboard retainer (1) from the headliner.

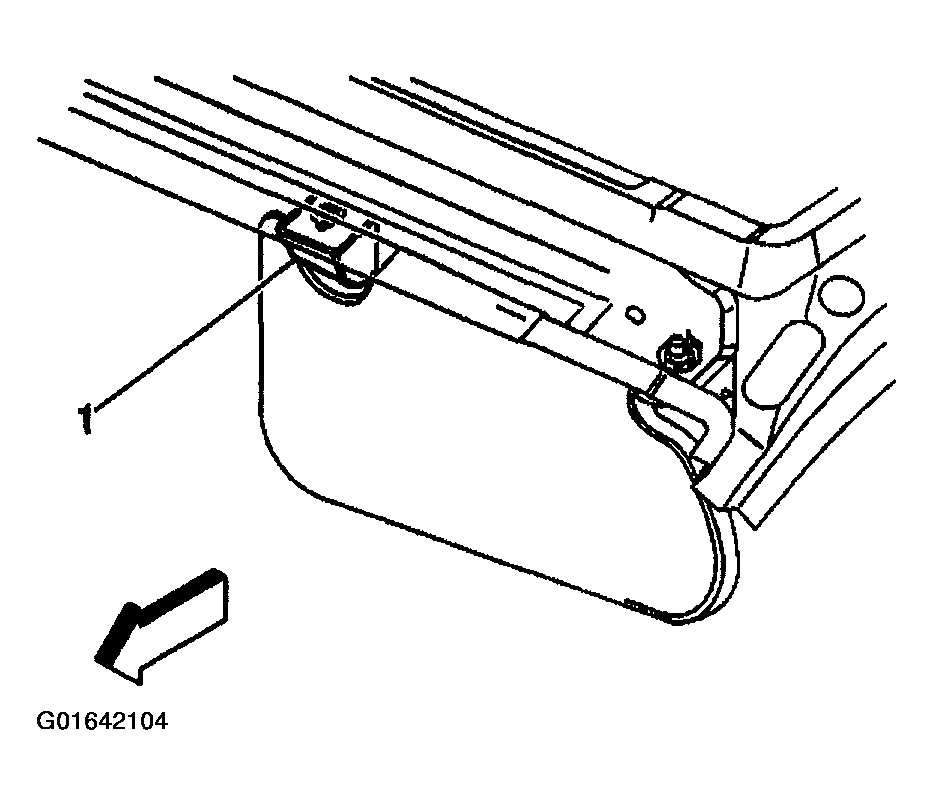

    12. Fig 4: Inboard Retainer From Headliner
    G01642104Courtesy of GENERAL MOTORS CORP.
  12. If the vehicle is equipped with lighted sunshades, perform the following steps:
    1. 12.1. Reach above the headliner to access the electrical connector (1).
    2. 12.2. Remove the electrical connectors from the headliner substrate.
    3. 12.3. Disconnect the sunshade electrical connector from the headliner harness.
    13. Fig 5: Above Headliner To Access Electrical Connector
    G01642105Courtesy of GENERAL MOTORS CORP.
  13. Remove the sunshade from the vehicle.
