Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the vehicle is equipped with lighted sunshades, perform steps  2 through  8.
  2. Lower the headliner in order to gain access to the wire harness.
  3. Position the sunshade to the headliner.
  4. Connect the sunshade electrical connector to the headliner harness.
  5. Using a glue gun, hot melt the electrical connectors (1) to the headliner substrate, ensuring the connectors are securely attached to the substrate.

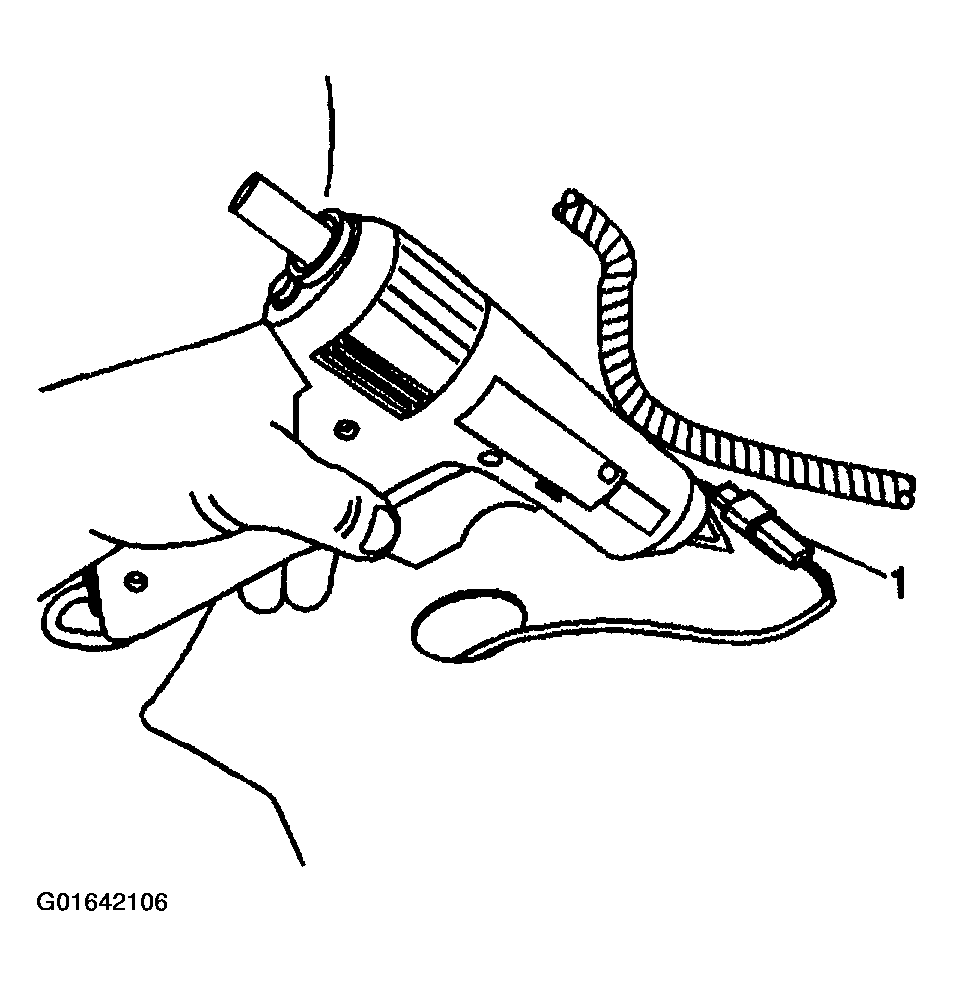

    6. Fig 1: Hot Melting Electrical Connectors To Headliner Substrate
    G01642106Courtesy of GENERAL MOTORS CORP.
  6. Route the wire harness until fully seated into the sunshade wire harness channel located on the pivot arm.

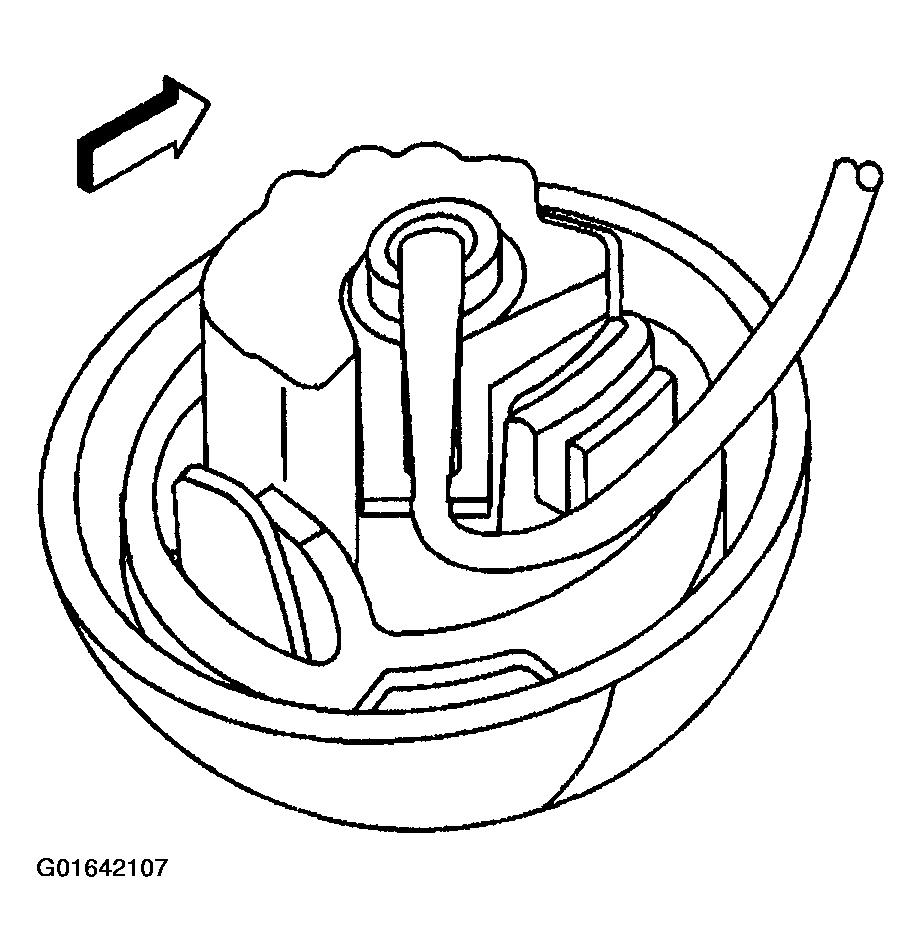

    Fig 2: Wire Harness Fully Seated Into Sunshade Wire Harness Channel Located On Pivot Arm
    G01642107Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If the wire harness retaining clip is removed from the sunshade for any reason, a new retaining clip must be installed.
  7. Position the wire harness retaining clip between the headliner and the roof panel.
  8. Position the index tabs on the wire harness retaining clip to the pivot arm and install the clip until fully seated.

    With the wire harness retaining clip installed, the sunshade should remain attached to the headliner.

    9. Fig 3: Wire Harness Retaining Clip Between Headliner And Roof Panel
    G01642108Courtesy of GENERAL MOTORS CORP.
  9. Position the inboard retainer (1) to the roof panel.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

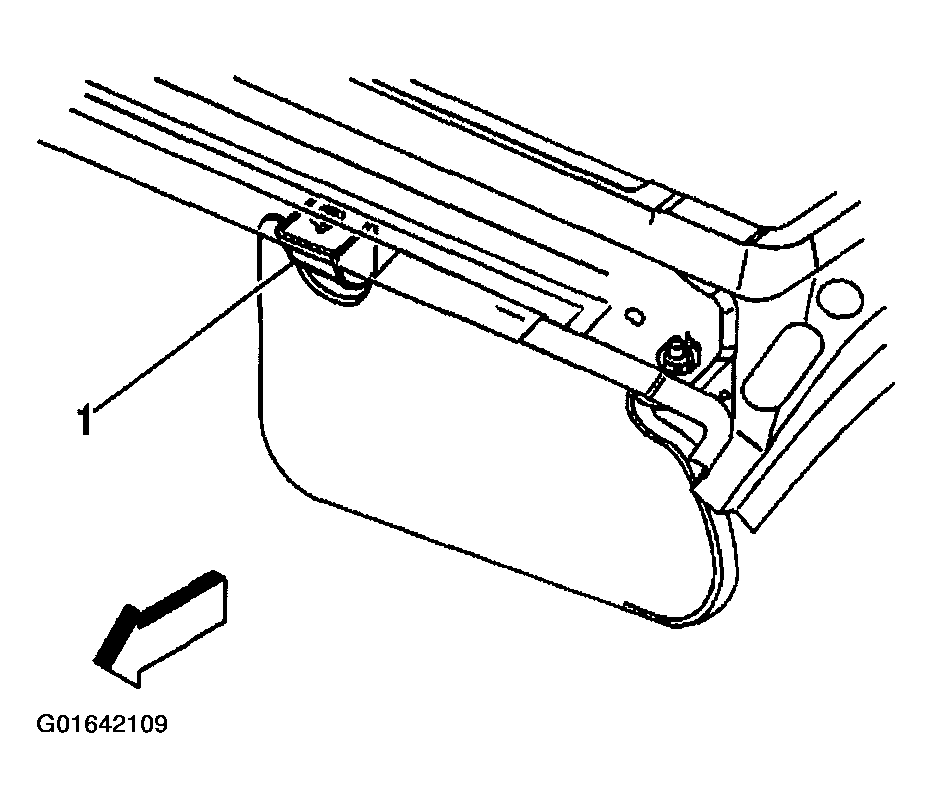

    10. Fig 4: Inboard Retainer To Roof Panel
    G01642109Courtesy of GENERAL MOTORS CORP.
  10. Install the inboard retaining screw.

    Tighten

    Tighten the screw to 1.2 N.m (10 lb in).

  11. With the sunshade parallel to the windshield, index the pivot arm tab to the roof panel slot.
    12. Fig 5: Pivot Arm Tab To The Roof Panel Slot
    G01642110Courtesy of GENERAL MOTORS CORP.
  12. Apply and maintain upward pressure to the pivot arm while rotating the sunshade parallel to the side window. The sunshade arm should appear flush with the bezel.
    13. Fig 6: Applying And Maintaining Upward Pressure To Pivot Arm
    G01642111Courtesy of GENERAL MOTORS CORP.
  13. Rotate and clip the sunshade to the inboard retainer.
  14. Ensure the pivot arm retaining tabs are fully seated to the roof panel.
  15. Install the front assist handle to the roof panel. Refer to ASSIST HANDLE REPLACEMENT  .
  16. Install the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  .
  17. Install the center pillar trim panel. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR  .
  18. Return the bucket seat to an upright position.
