Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear console to the roof panel ensuring the screw holes are indexed properly.

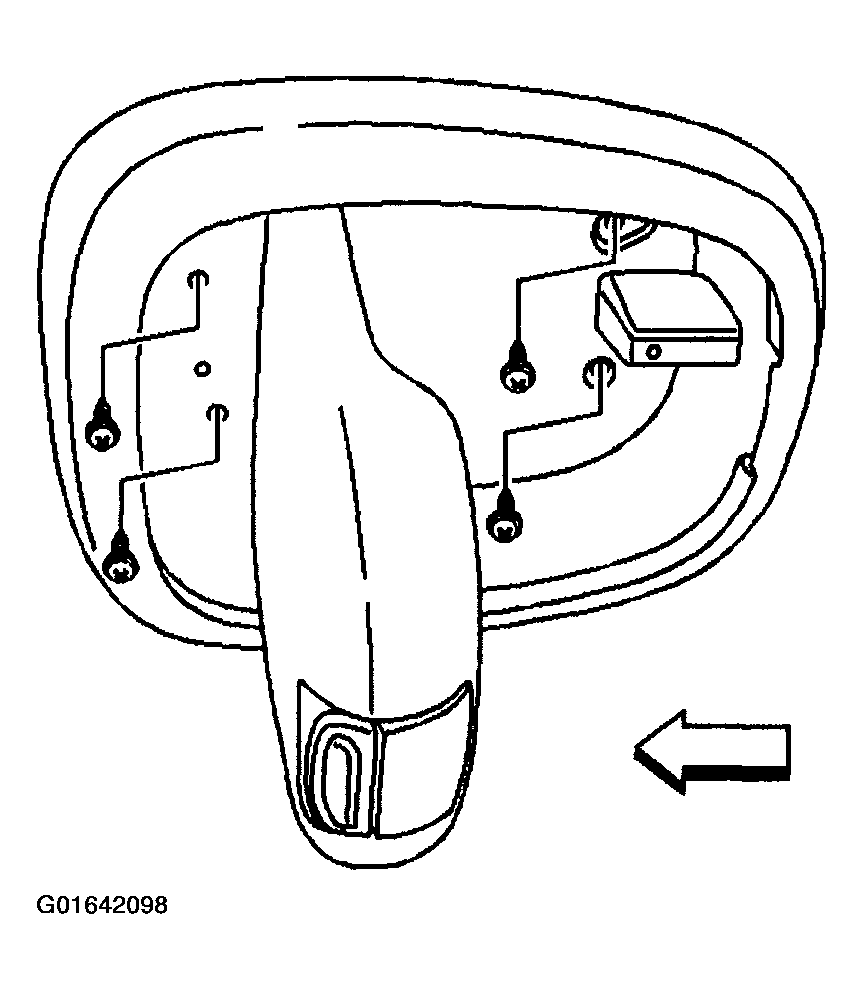

    2. Fig 1: Rear Overhead Console
    G01642098Courtesy of GENERAL MOTORS CORP.
  2. Partially install the 4 screws that retain the rear console to the roof panel.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the 4 screws retaining the rear console to the roof panel.

    Tighten

    Tighten the screws to 1.2 N.m (10 lb in).
