Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws that retain the console to the roof panel.
  2. Release the front retaining tabs.
  3. Lower the console and disconnect the electrical connectors as needed.
  4. Remove the console from the vehicle

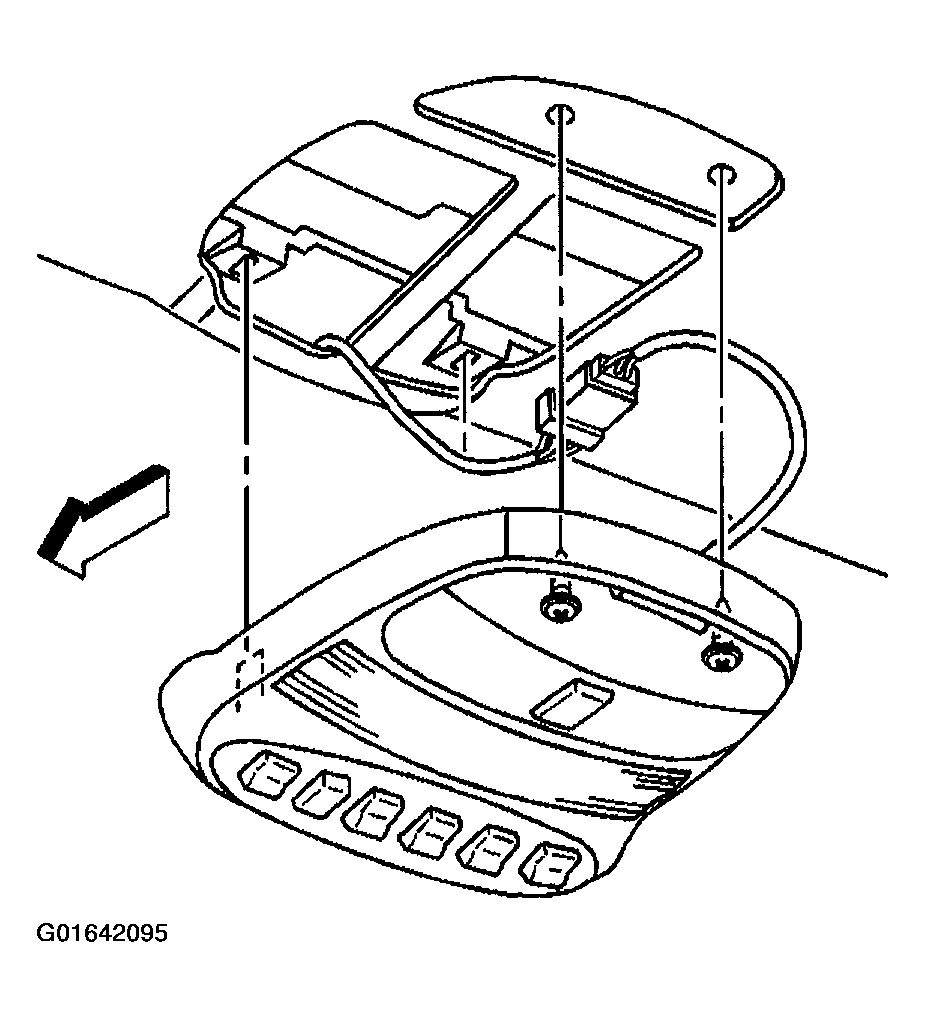

    5. Fig 1: Front Overhead Console
    G01642095Courtesy of GENERAL MOTORS CORP.
  5. If replacing the console, remove the garage door opener if equipped. Refer to GARAGE DOOR OPENER REPLACEMENT in Garage Door Opener.
  6. If replacing the console, remove the OnStar® microphone if equipped. Refer to ONSTAR MICROPHONE REPLACEMENT in Cellular Communication.
  7. If replacing the console, remove the personal message player/recorder if equipped. Refer to PERSONAL MESSAGE PLAYER/RECORDER REPLACEMENT in Entertainment.
  8. If replacing the console, remove the power sunroof switch if equipped. Refer to SUNROOF SWITCH REPLACEMENT in Roof.
  9. If replacing the console, remove the noise cancellation microphone if equipped. Refer to MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR in Roof.
