Installation Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

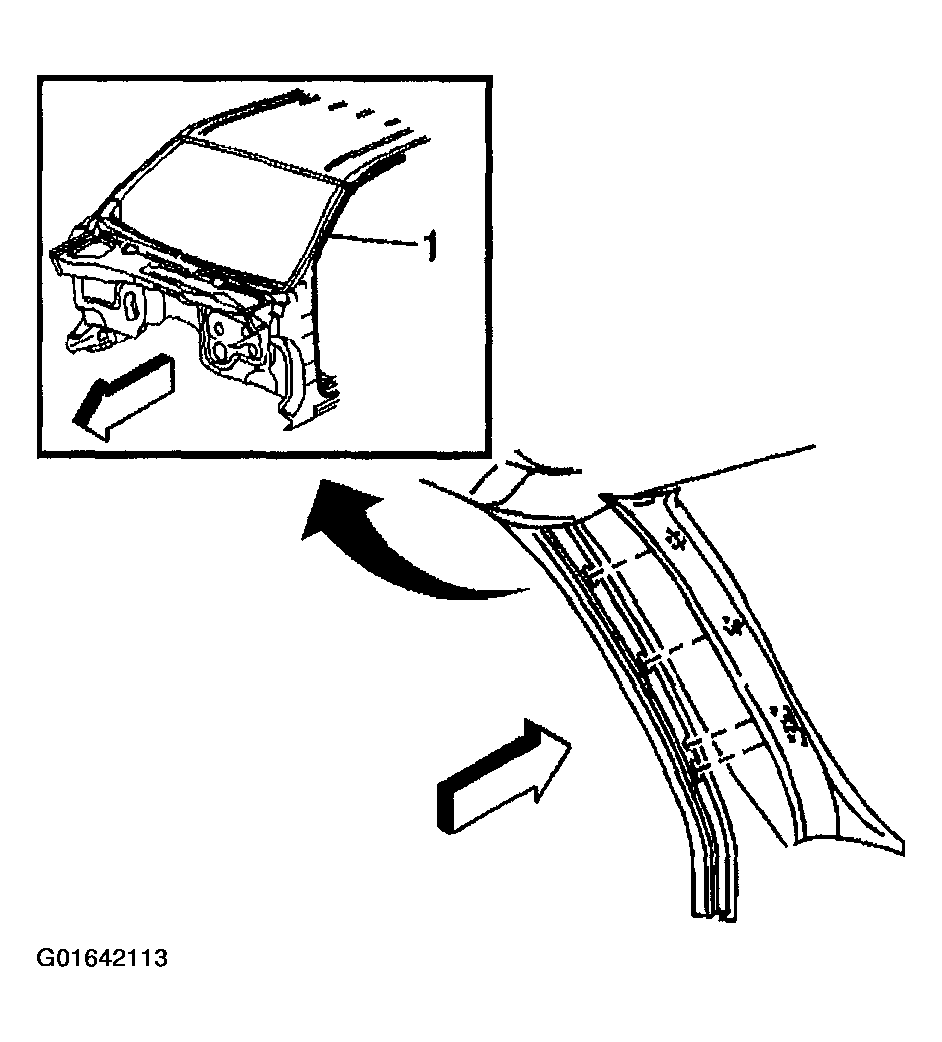

- Position the garnish molding (1) to the vehicle.
- Align the locating fingers to the corresponding holes in first pillar.
- Starting at the top of the garnish molding, seat the attachment clips that retain the garnish molding to the first pillar.
