Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the garnish molding to the liftgate.
  2. Install wire harness (1) into the slot located on the garnish molding.

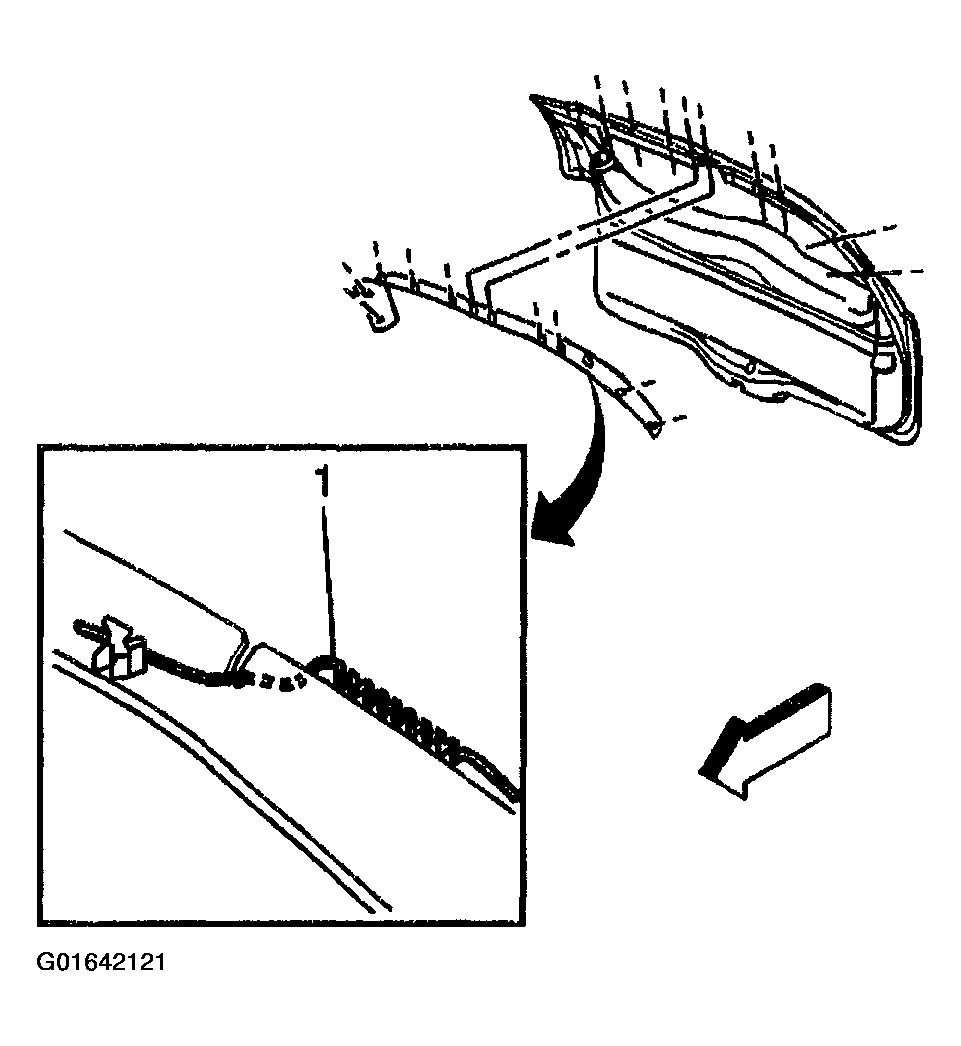

    3. Fig 1: Garnish Molding - Rear Window
    G01642121Courtesy of GENERAL MOTORS CORP.
  3. Index the locating tabs to the corresponding holes in the liftgate.
  4. Index the retaining clips to the liftgate.
  5. Push the garnish molding into the liftgate in order to fully seat the retaining clips.
  6. Close the liftgate.
