Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front and rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  and DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER, ENVOY & BRAVADA)  or DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER EXT & ENVOY XL)  .
  2. Move the seat to a forward position.
  3. Release the 4 retaining clips that attach the garnish molding to the center pillar.

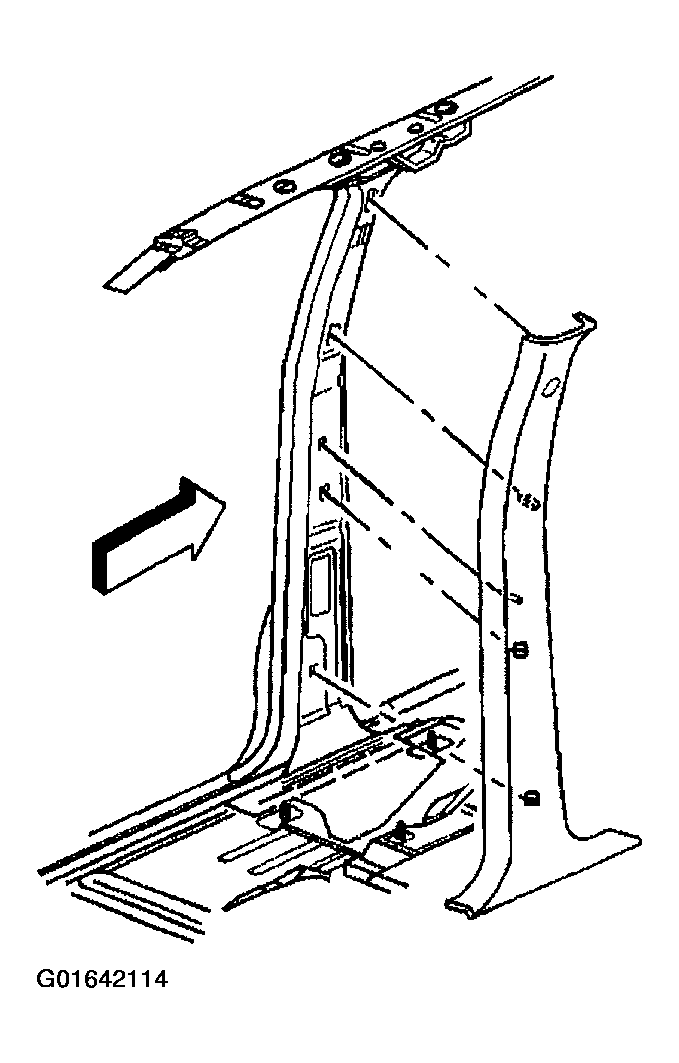

    4. Fig 1: Retaining Clips Attaching Garnish Molding To Center Pillar
    G01642114Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the temperature sensor, if equipped.
  5. Remove the garnish molding from the vehicle.
