Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the garnish molding to the center pillar.
  2. Connect the electrical connector to the temperature sensor, if equipped.
  3. Index the positioning tabs on the garnish molding to the corresponding holes in the center pillar.
  4. Seat the 4 garnish molding retaining tabs to the center pillar.

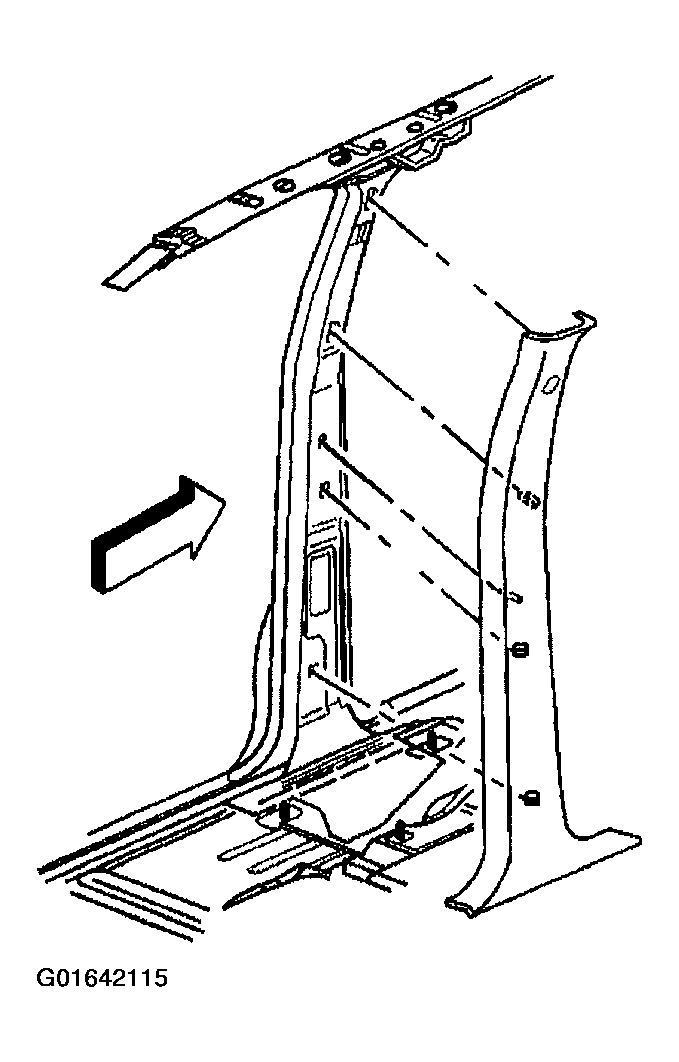

    5. Fig 1: Garnish Molding Retaining Tabs To Center Pillar
    G01642115Courtesy of GENERAL MOTORS CORP.
  5. Return the seat to neutral position.
  6. Install the front and rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  and DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER, ENVOY & BRAVADA)  or DOOR SILL PLATE REPLACEMENT - REAR (TRAILBLAZER EXT & ENVOY XL)  .
