Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that all 4 retaining tabs are securely attached to the sill plate.

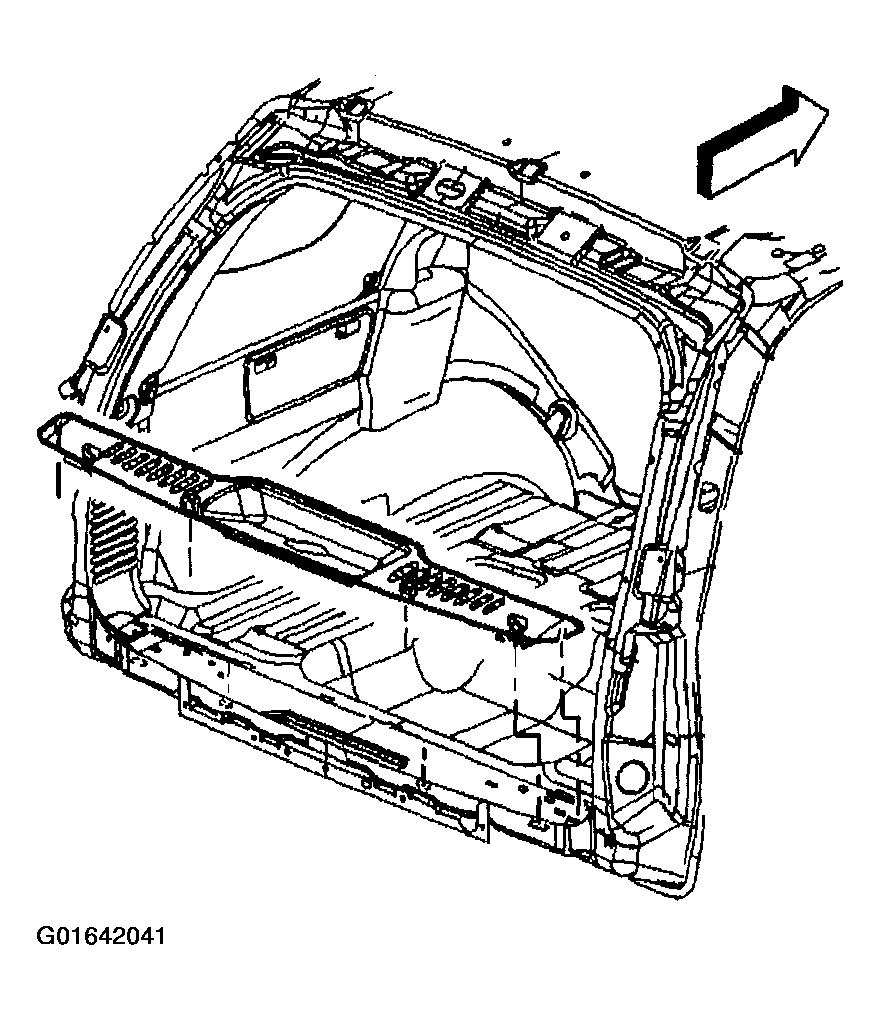

  2. Fig 1: Sill Plate To Door Frame - Lift Gate
    G01642041Courtesy of GENERAL MOTORS CORP.
  3. Align the retaining tabs to the liftgate door frame slots.
  4. Push down on the sill plate, seating the retaining tabs to the door frame.
