Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removing the right sill plate, remove the right insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Starting at the rear of the sill plate, use a flat-bladed tool in order to release the 5 retaining tabs.
  3. If removing the left sill plate, remove the sill plate from the hood release handle.
  4. Remove the sill plate from the door frame.
  5. Remove any retaining tabs that remain attached to the door frame.

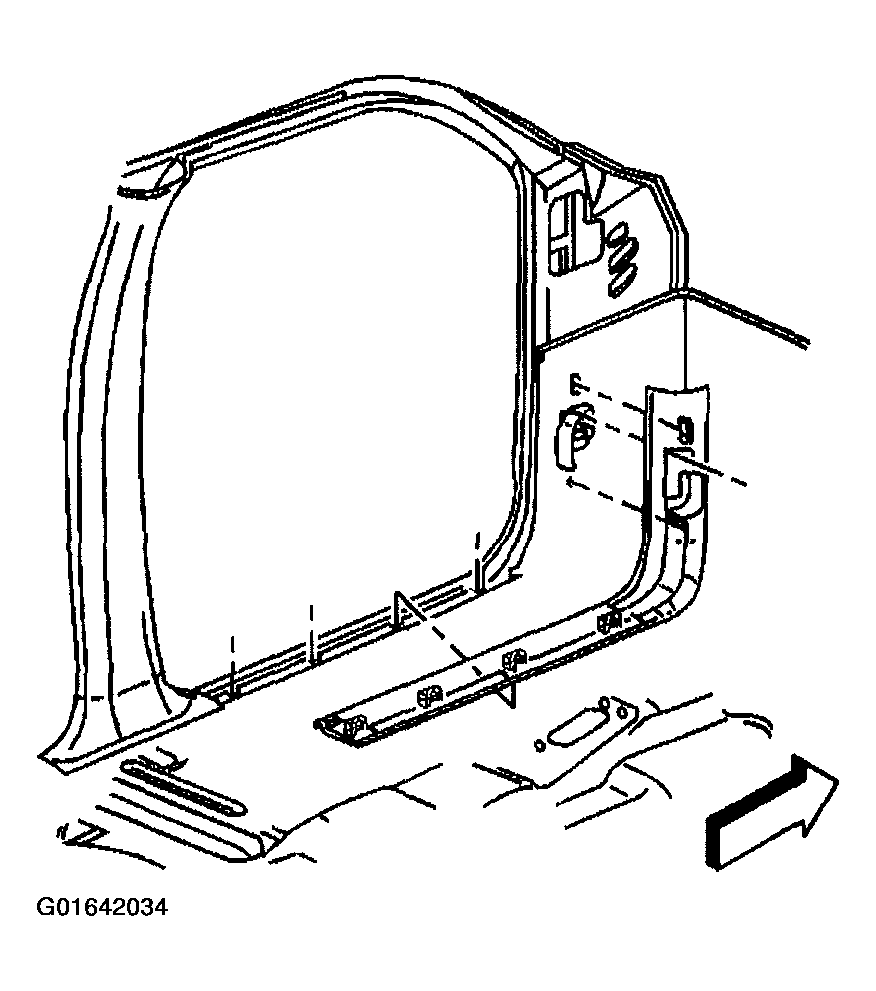

    6. Fig 1: Front Door Sill Plate From Door Frame
    G01642034Courtesy of GENERAL MOTORS CORP.
