Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Access the coat hooks from the cargo area.
  2. If the vehicle is equipped with diversity antennas, remove the bolt and coat hook from the roof panel.

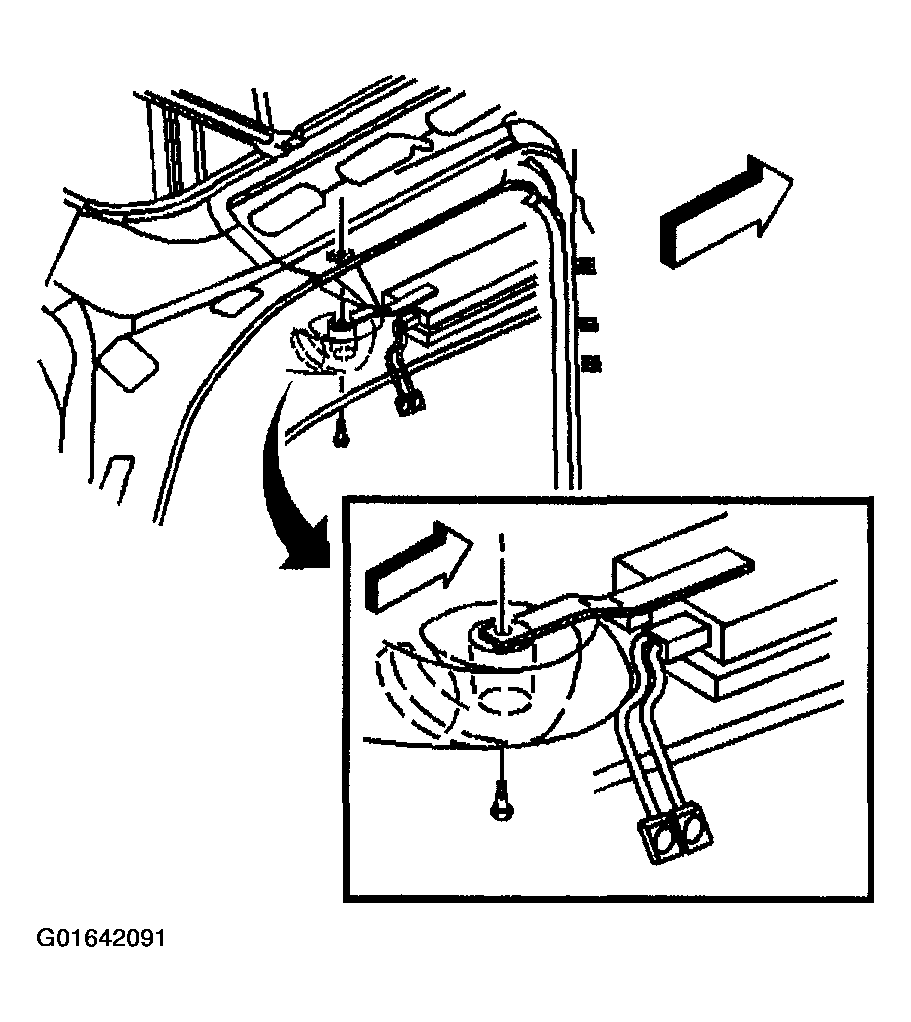

    3. Fig 1: Bolt And Coat Hook From Roof Panel
    G01642091Courtesy of GENERAL MOTORS CORP.
  3. If the vehicle is NOT equipped with diversity antennas, perform the following:
    1. 3.1. Loosen the bolt retaining the coat hook to the roof panel.
    2. 3.2. Release the rear headliner push pins.
    3. 3.3. Lower the rear of the headliner far enough to access the plastic and metal washers.
    4. 3.4. Hold the metal washer from rotating and remove the bolt from the coat hook.
    5. 3.5. Remove the coat hook from the vehicle.
    4. Fig 2: Bolt Retaining Coat Hook To Roof Panel
    G01642092Courtesy of GENERAL MOTORS CORP.
