Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In order to avoid personal Injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.
  1. Position the carpet to the floor panel.

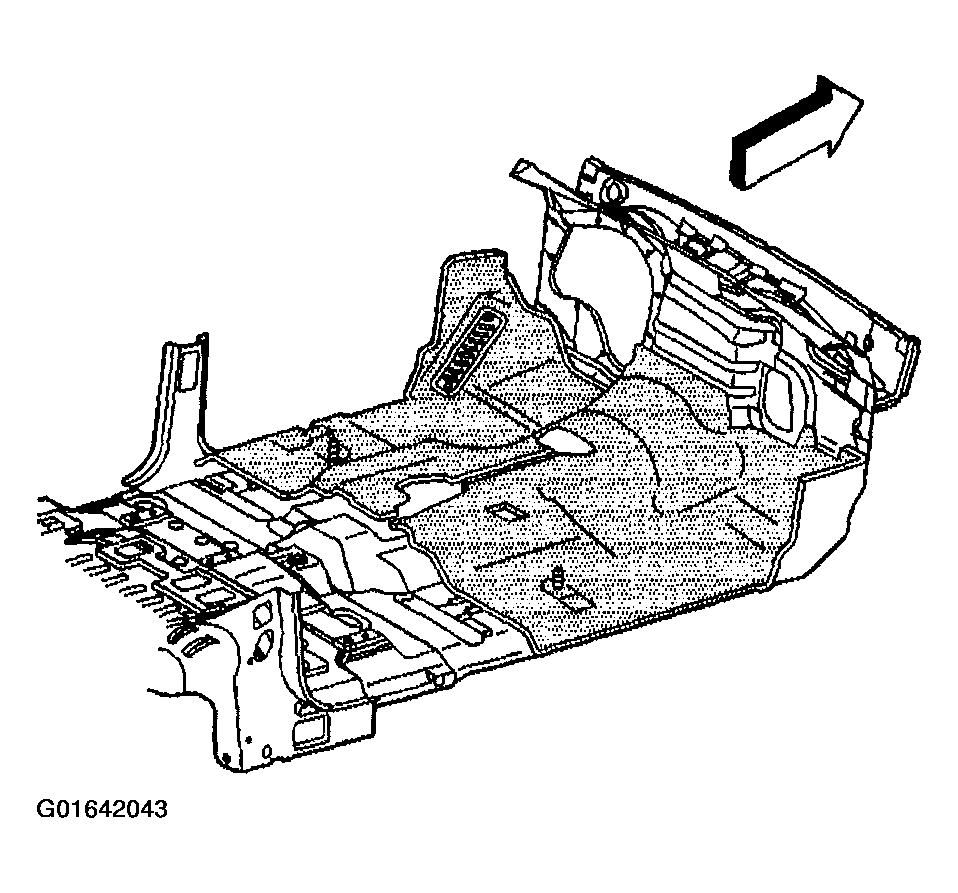

    2. Fig 1: Carpet To Vehicle - Front
    G01642043Courtesy of GENERAL MOTORS CORP.
  2. Feed the front edge of the carpet underneath the instrument panel.
  3. Align the holes in the carpet to the seat studs on the floor panel.
  4. Position the rear carpet over the edge of the front carpet.
  5. Install the floor console bracket. Refer to BRACKET REPLACEMENT - CONSOLE FLOOR in Instrument Panel, Gages and Console.
  6. Install the floor console Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages and Console.
  7. Install the center pillar trim panels. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR  .
  8. Install the front door sill plates. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  .
  9. Install the front bucket seats. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
